StarTech.com 2-Port USB 3.2 Gen 2 PCIe Card, USB-C 10Gbps SuperSpeed PCI Express 3.0 x4 Controller Card, USB Type-C Adapter Card, Data Only, Windows/macOS/Linux, TAA
Regular price
$118.59
Sale price
Regular price
Tax included.
Available in stock (73)
PCI-Express USB-C Card | 10Gbps | PCIe Gen3 x4 | 2-Year Warranty

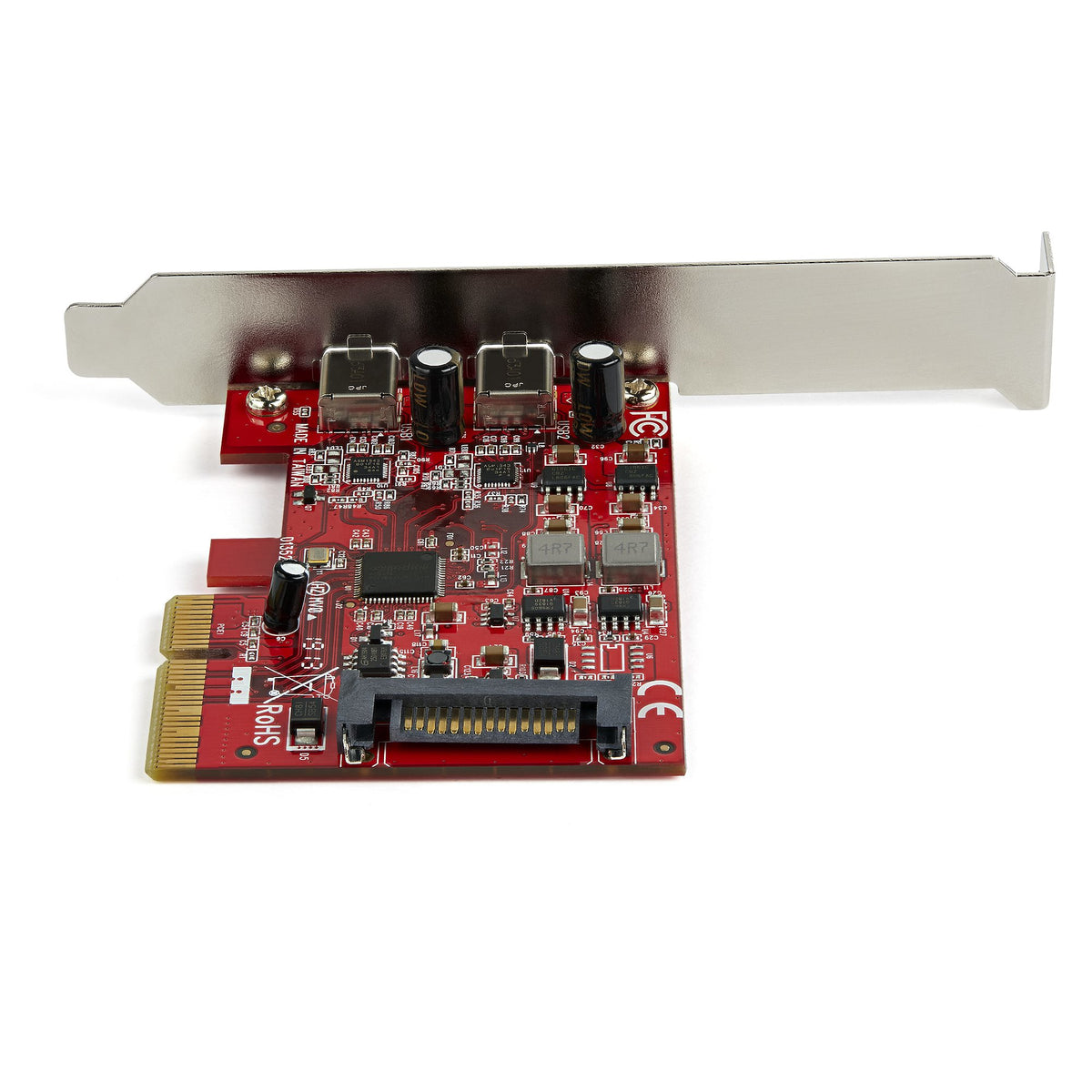

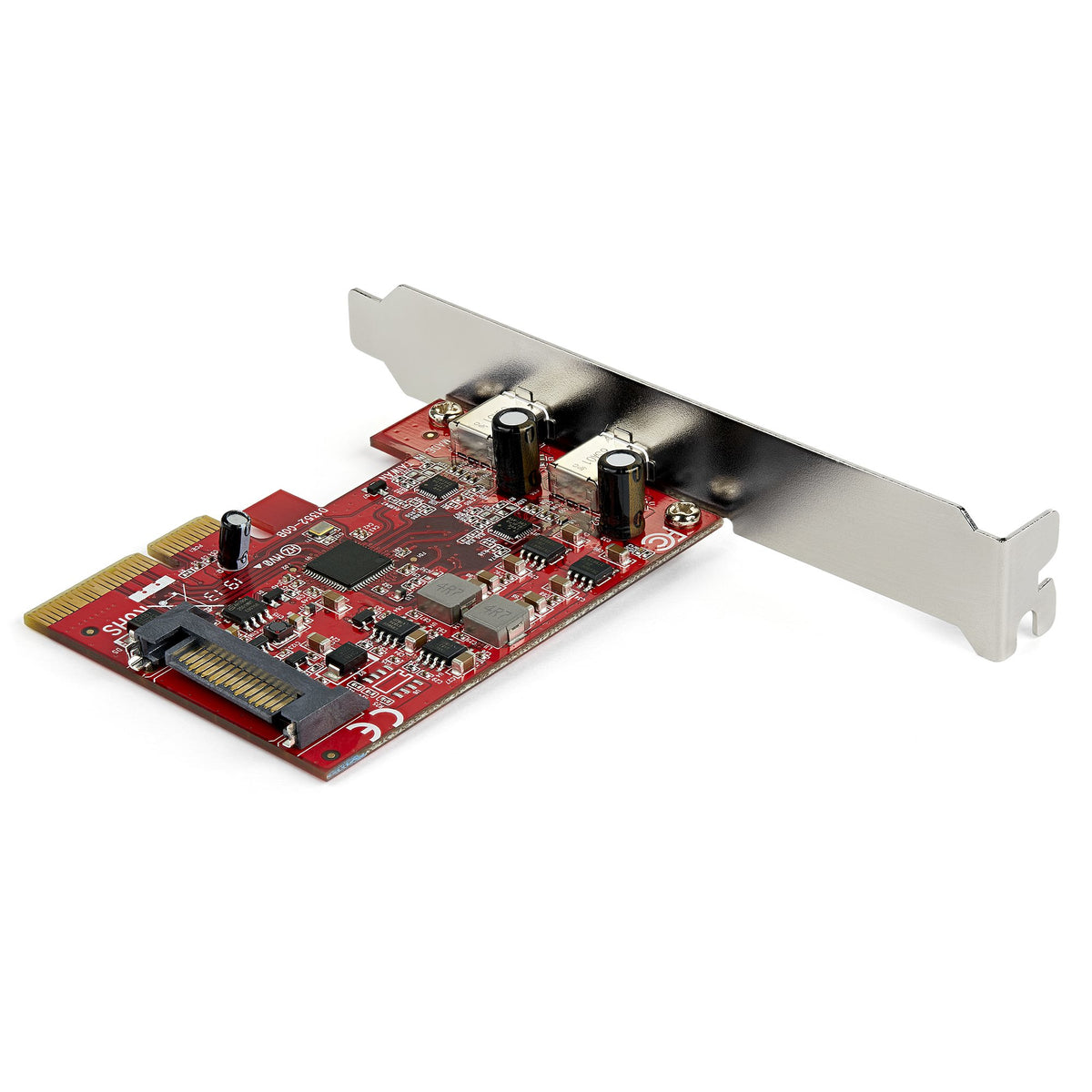

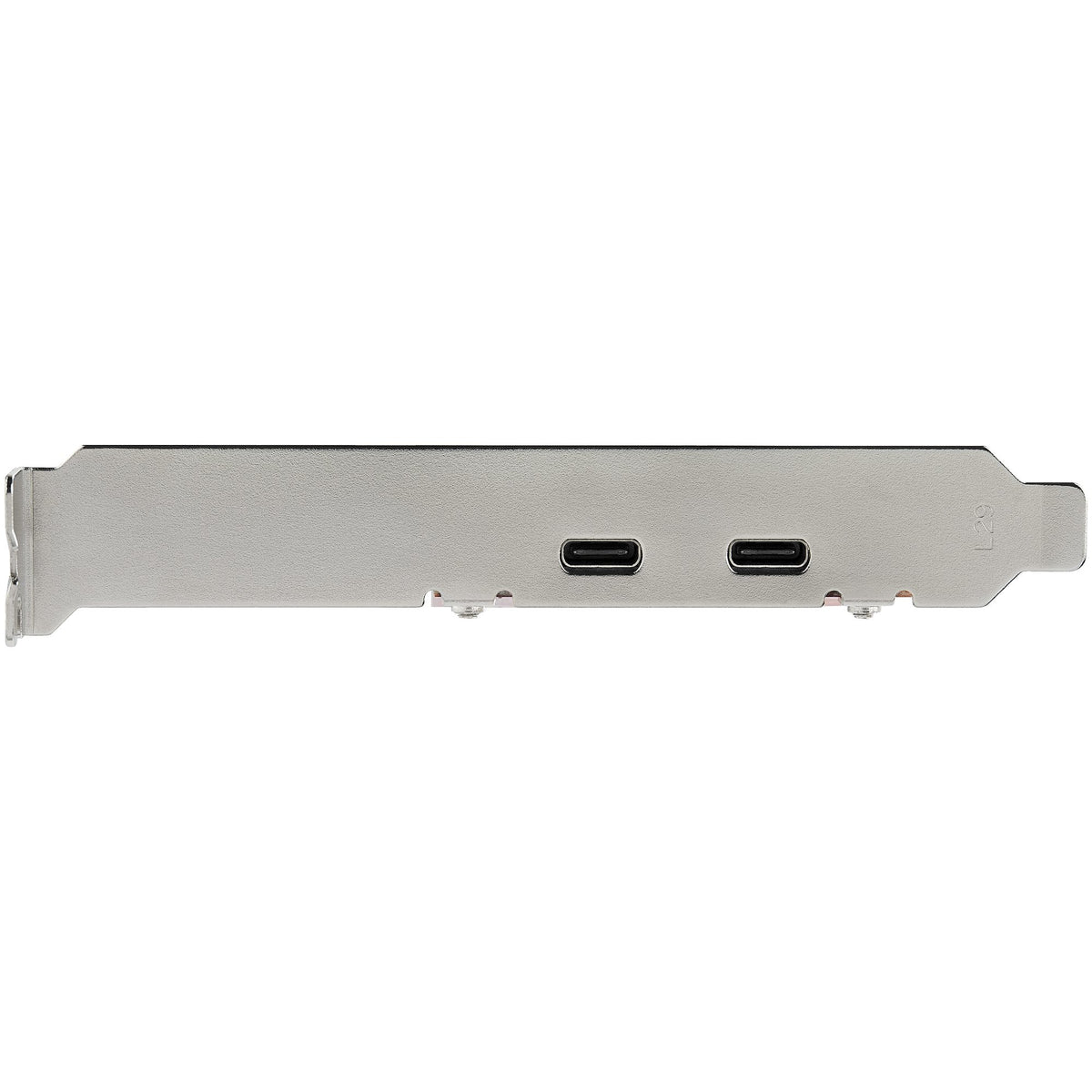

This PCIe USB 3.2 Gen 2 card installs into an available PCI-Express slot in your computer and enables you to upgrade your current system by adding two USB-C™ (10Gbps) ports.
Faster USB Performance
Also known as USB 3.1 Gen 2, this USB 3.2 Gen 2 card adds two 10Gbps USB Type-C™ ports to your computer.
Utilizing an ASMedia ASM3142 chipset, this card harnesses the speed of USB 3.2 Gen 2. With higher data throughput support, this USB 3.2 Gen 2 PCIe expansion card is a necessity for external drives and many other USB 3.2 Gen 2 peripherals and includes an optional SATA power connector for high power devices.
The card is backward compatible with USB 3.2 Gen 1 (5Gbps) and USB 2.0 (480mbps) devices. The card works with newer USB-C devices, but can easily support your existing USB-A peripherals using inexpensive USB Type C cables and adapters. See our Accessories Tab for supported options.
Easy Installation

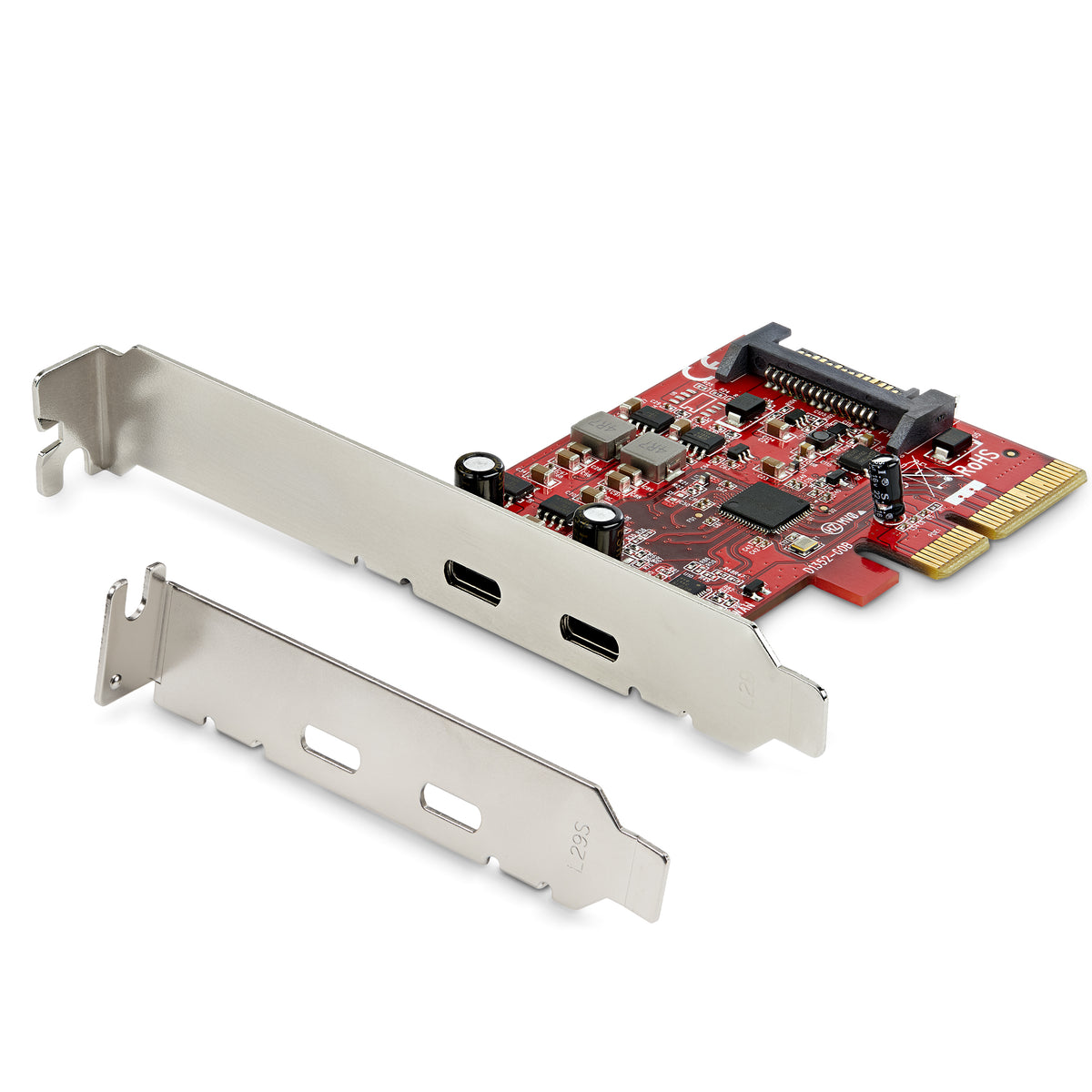

The USB 3.2 card is compatible with Windows®, Linux® and macOS® operating systems. The card includes both standard-profile and low-profile brackets to install in various form-factor PCs and servers.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
The PEXUSB312C3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
This PCIe USB 3.2 Gen 2 card installs into an available PCI-Express slot in your computer and enables you to upgrade your current system by adding two USB-C™ (10Gbps) ports.
Faster USB Performance
Also known as USB 3.1 Gen 2, this USB 3.2 Gen 2 card adds two 10Gbps USB Type-C™ ports to your computer.
Utilizing an ASMedia ASM3142 chipset, this card harnesses the speed of USB 3.2 Gen 2. With higher data throughput support, this USB 3.2 Gen 2 PCIe expansion card is a necessity for external drives and many other USB 3.2 Gen 2 peripherals and includes an optional SATA power connector for high power devices.
The card is backward compatible with USB 3.2 Gen 1 (5Gbps) and USB 2.0 (480mbps) devices. The card works with newer USB-C devices, but can easily support your existing USB-A peripherals using inexpensive USB Type C cables and adapters. See our Accessories Tab for supported options.
Easy Installation
The USB 3.2 card is compatible with Windows®, Linux® and macOS® operating systems. The card includes both standard-profile and low-profile brackets to install in various form-factor PCs and servers.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
The PEXUSB312C3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Red
- Internal: Yes
- Output interface: USB 3.2 Gen 1 (3.1 Gen 1)
- Host interface: PCIe
- Harmonized System (HS) code: 84733020
- Operating temperature (T-T): 0 - 70 °C
- Products per master (outer) case: 60 pc(s)
- Master (outer) case height: 32 cm
- Master (outer) case length: 49.4 cm
- Master (outer) case width: 37.6 cm
- Operating relative humidity (H-H): 20 - 80%
- Compliance certificates: CE, RoHS
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
- Chipset: ASMedia - ASM3142
- Data transfer rate (max): 10 Gbit/s
- Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019
- Linux operating systems supported: Yes
- Expansion card standard: PCIe 3.0
- Certification: CE, FCC, REACH
- Mac operating systems supported: Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Features
- UASP support
- Yes
Operational conditions
- Storage temperature (T-T)
- -20 - 85 °C
Packaging data
- Mounting brackets included
- Yes
- Package depth
- 17.4 cm
- Package height
- 3.3 cm
- Package weight
- 0.12 kg
- Package width
- 14.2 cm
- User guide
- Yes
Ports & interfaces
- Expansion card form factor
- Full-height / Low-profile
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 2
Technical details
- Sustainability compliance
- Yes
Weight & dimensions
- Depth
- 12.2 cm
- Height
- 1.8 cm
- Weight
- 0.05 kg
- Width
- 8 cm
Mounting brackets included
Materials
