Sold out

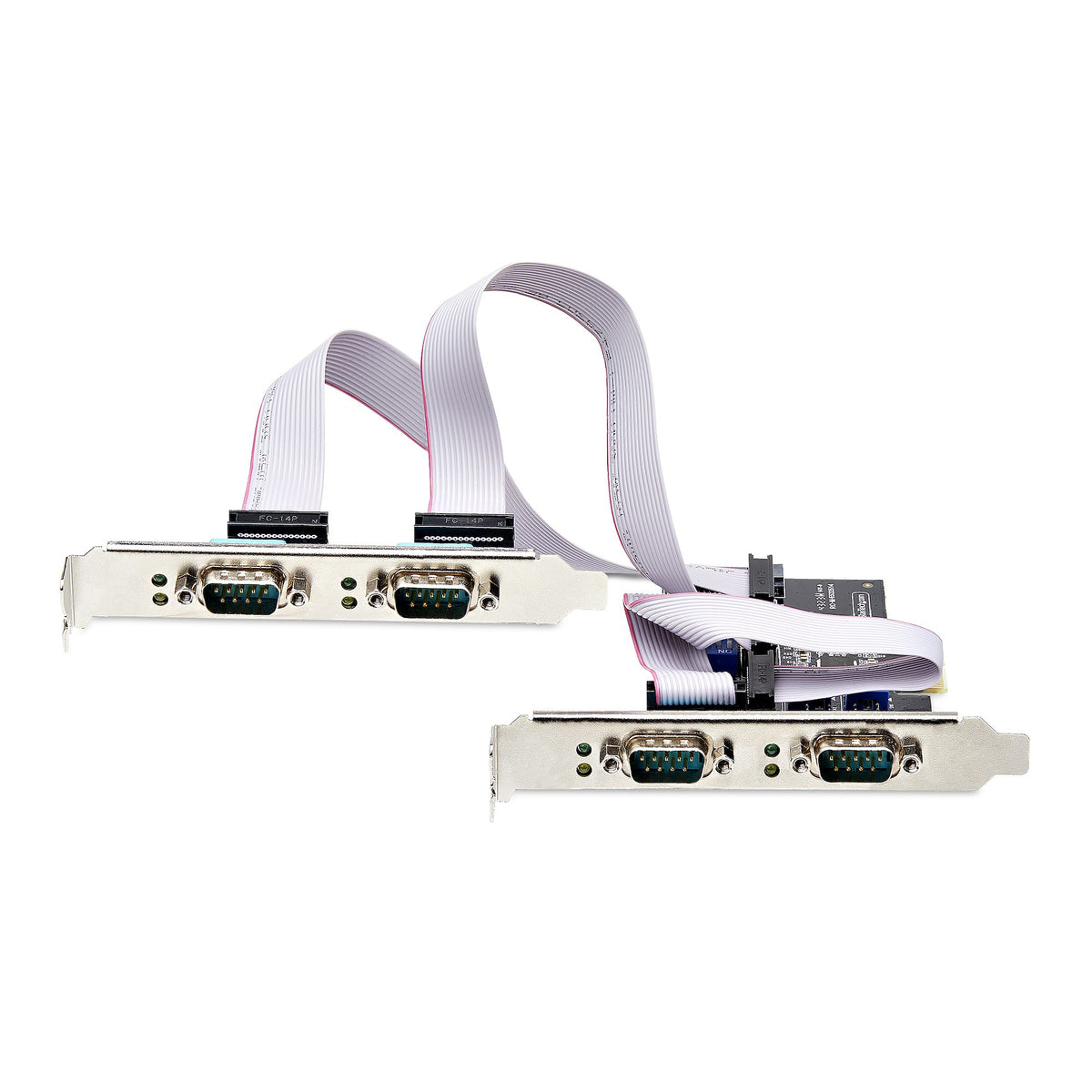

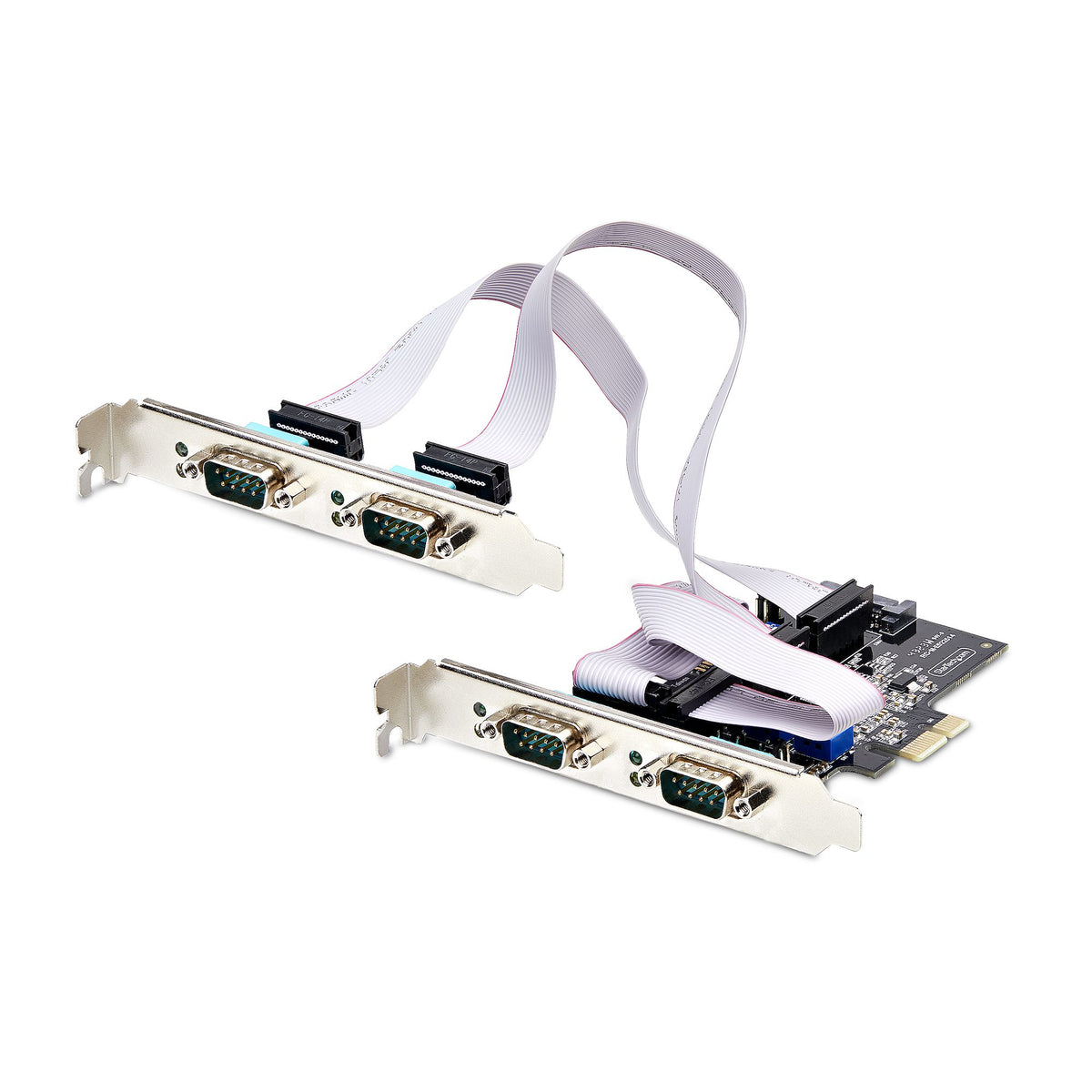

StarTech.com 4-Port Serial PCIe Card, Quad-Port PCI Express to RS232/RS422/RS485 (DB9) Serial Card, Low-Profile Bracket Incl., 16C1050 UART, Windows/Linux, TAA Compliant - Level-4 ESD Protection
Regular price
$367.19
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
Add four RS-232, RS-422, or RS-485-capable DB9 Serial Ports to a desktop computer via PCIe x1 Expansion Card
Add serial communication support to a desktop computer or Small Form Factor (SFF) system, using this 4-Port Serial PCI Express Card. The four DB9 ports can be independently configured to support RS-232, RS-422, and 2/4-wire RS-485 standards, for communication with compliant serial peripheral devices.
Per-Port Serial Configuration

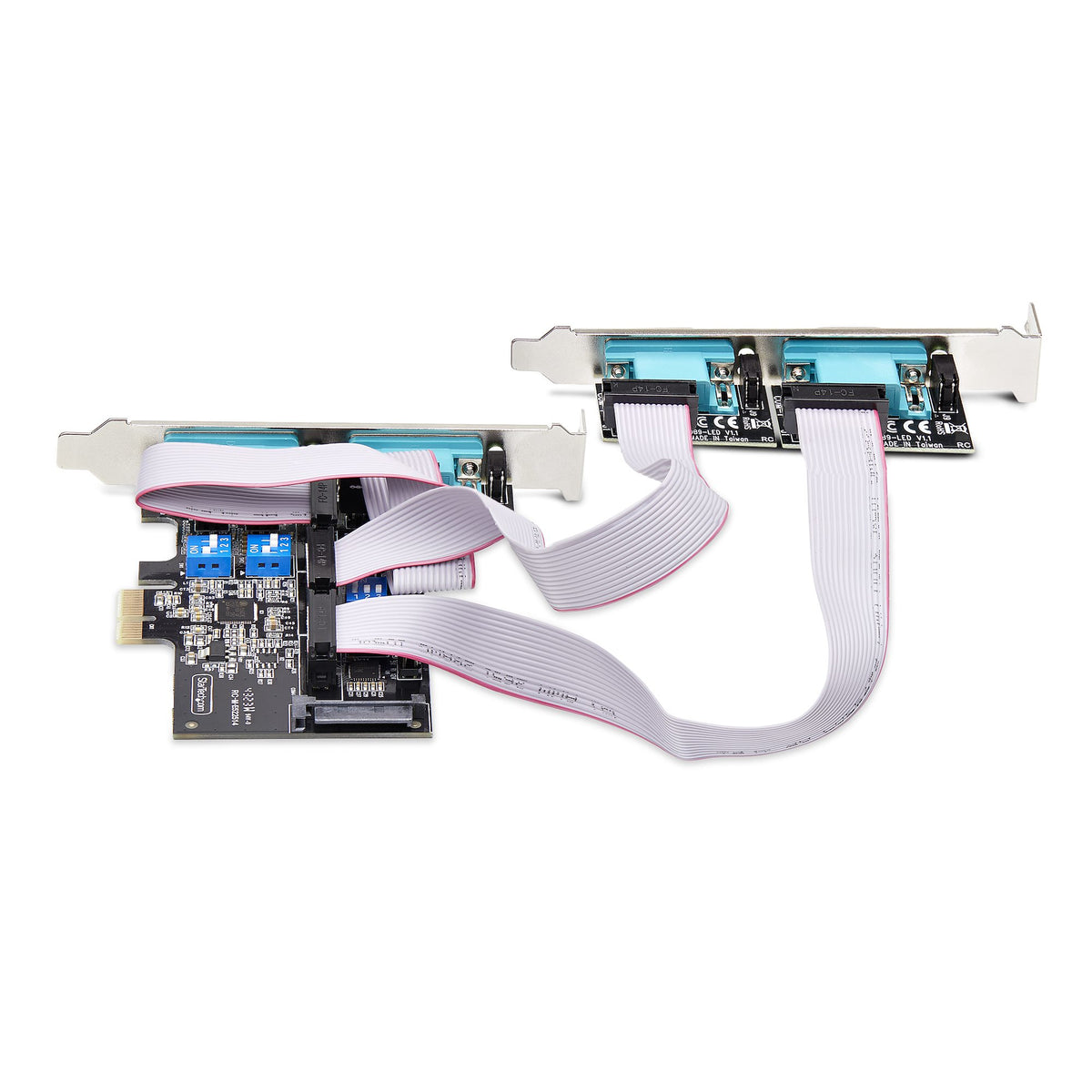

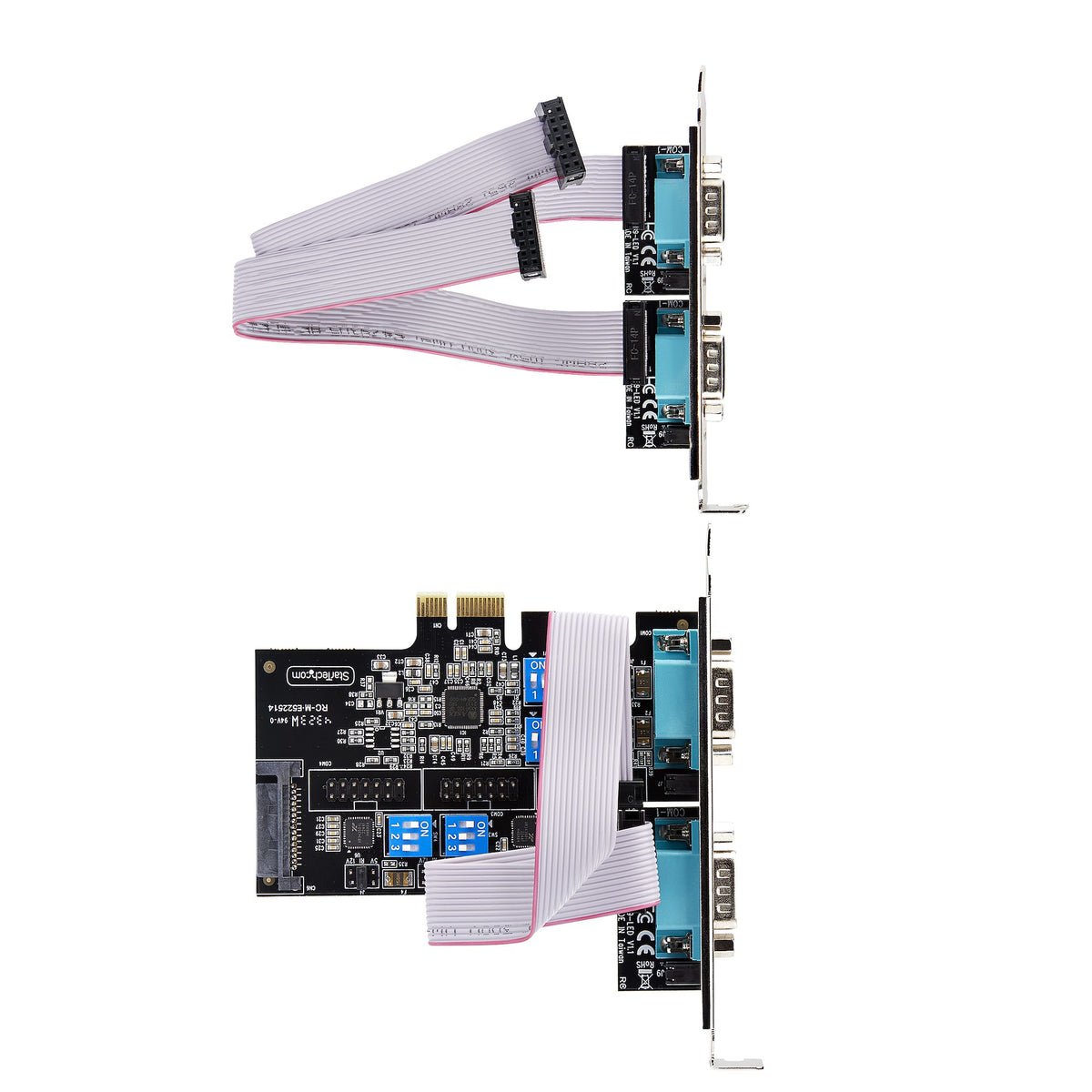

This PCIe Serial Card is equipped with on-board DIP switches, enabling each DB9 serial port to operate in RS-232, RS-422, and/or RS-485 mode(s). The card features LED indicators per port, providing real-time monitoring of port activity.
Configurable External SATA Power
The PCI Express Serial Adapter Card features three power modes that are configurable via on-board jumpers, including 12V (1.5A per port), 5V (1.5A per port), or no power (RI), over pin 9.
Legacy Connectivity
This serial card enables the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 4-Port PCIe Serial Card is an ideal system upgrade for a wide range of applications (e.g., point-of-sale terminals, PLCs, factory control and automation, scientific sensors, medical equipment, scanners, and oscilloscopes)
Add serial communication support to a desktop computer or Small Form Factor (SFF) system, using this 4-Port Serial PCI Express Card. The four DB9 ports can be independently configured to support RS-232, RS-422, and 2/4-wire RS-485 standards, for communication with compliant serial peripheral devices.
Per-Port Serial Configuration
This PCIe Serial Card is equipped with on-board DIP switches, enabling each DB9 serial port to operate in RS-232, RS-422, and/or RS-485 mode(s). The card features LED indicators per port, providing real-time monitoring of port activity.
Configurable External SATA Power
The PCI Express Serial Adapter Card features three power modes that are configurable via on-board jumpers, including 12V (1.5A per port), 5V (1.5A per port), or no power (RI), over pin 9.
Legacy Connectivity
This serial card enables the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 4-Port PCIe Serial Card is an ideal system upgrade for a wide range of applications (e.g., point-of-sale terminals, PLCs, factory control and automation, scientific sensors, medical equipment, scanners, and oscilloscopes)
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Internal: Yes
- Output interface: Serial
- Host interface: PCIe
- Operating temperature (T-T): 0 - 70 °C
- Products per master (outer) case: 50 pc(s)
- Master (outer) case height: 30.6 cm
- Master (outer) case length: 34.5 cm
- Master (outer) case width: 68.5 cm
- Operating relative humidity (H-H): 20 - 80%
- Compliance certificates: RoHS, Trade Agreements Act (TAA)
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
- Chipset: ASIX - AX99100
- Server operating systems supported: Windows Server 2016, Windows Server 2019, Windows Server 2022
- Linux operating systems supported: Yes
- Serial ports quantity: 4
- Cables included: Ribbon cable
- Serial interface type: RS-232/422/485
- LED indicators: Activity
- FIFO (First In, First Out): 256 B
Features
- Baud rate
- 921.6 Kbit/s
- Data bits
- 5, 6, 8, 9
- Flow control support
- Yes
- Parity bit
- Even, Mark, No, Odd, Space
- Stop bits
- 1, 1.5, 2
Operational conditions
- Storage temperature (T-T)
- -20 - 80 °C
Other features
- Cable length
- 0.3 m
- Electrostatic Discharge (ESD) protection
- 15 kV
Packaging data
- Mounting brackets included
- Yes
- Package depth
- 21.2 cm
- Package height
- 4 cm
- Package weight
- 0.27 kg
- Package width
- 14.5 cm
- User guide
- Yes
Technical details
- Sustainability compliance
- Yes
Weight & dimensions
- Depth
- 12.1 cm
- Height
- 1.6 cm
- Weight
- 0.06 kg
- Width
- 10.9 cm
Cables included: Ribbon cable
Mounting brackets included
Mounting brackets included
Materials
