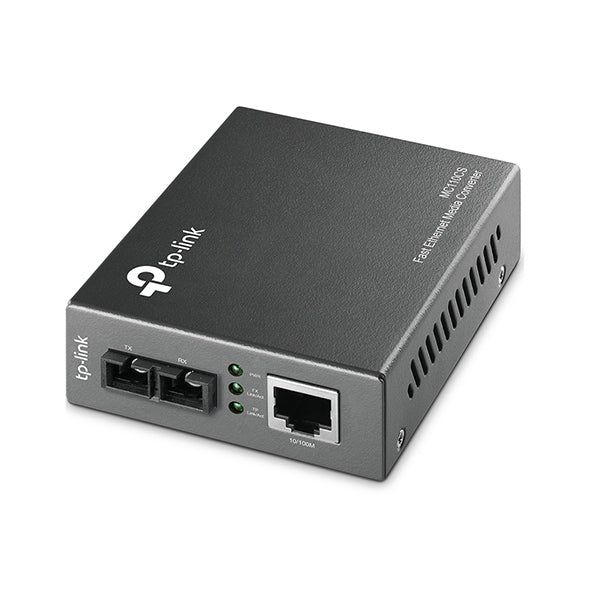

TP-Link Omada MC110CS network media converter 100 Mbit/s 1310 nm Single-mode Black
Hurry up, only 6 items left in stock.
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Internal: No
- Fiber optic connector: SC
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 10 - 90%
- Ethernet LAN (RJ-45) ports: Yes
- Connectivity technology: Wired
- Auto MDI/MDI-X: Yes
- Fiber mode structure: Single-mode
- Fiber ports quantity: 1
- Duplex system: Full, Half
- Compliance certificates: RoHS
- Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- LED indicators: Yes
- Maximum transfer distance: 12500 m
- Ethernet LAN data rates: 10,100 Mbit/s
- Wavelength: 1310 nm
- Harmonized System (HS) code: 85176990
- Storage relative humidity (H-H): 5 - 90%
- Cable types supported: Cat3, Cat4, Cat5
Network
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-FX, 100BASE-T
- Maximum data transfer rate
- 100 Mbit/s
Operational conditions
- Storage temperature (T-T)
- -40 - 70 °C
Power
- Power consumption (max)
- 2.4 W
Weight & dimensions
- Depth
- 7.3 cm
- Height
- 2.7 cm
- Width
- 9.5 cm
Materials
Compare With Similar Items
|
|
|
|
|
|
| Description | The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media and vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 12.5 miles (20km). |
What This Product Does The MC420L is a media converter designed to convert between 10GBASE-SR/LR fiber, 10GBASE-LRM fiber and 10GBASE-T copper media. It easily extends the distance of an existing gigabit network via fiber optic when integrated with the SFP Module. The MC420L applies the IEEE 802.3ae 10GBASE-SR/LR 10G Ethernet & IEEE 802.3an 10GBASE-T 10G Ethernet standards as part of its intended use with multi-mode/single-mode SFP Module. Long-range point-to-point connections are easily built with the gigabit fiber converters, making them ideal for network connections across multiple buildings, for remote surveillance and automated factory equipment. MC420L offers flexible installation on standalone desktops or inserted into a chassis (TP-Link's MC1400). The easy-to-view front panel status LEDs provide real-time status information to monitor up-to-the-minute network activity. While the maximum transmission distance of fiber optics depends on the insertion of the SFP module. |
The MC220L is a media converter designed to convert 1000BASE-SX/LX fiber to 10/100/1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T standards, the MC220L communicates with any TP-Link standard gigabit SFP fiber module*. * TP-Link does not maintain a third party SFP module compatibility list and does not guarantee all SFP modules work with this product. |
MC212CS-2 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking. |
The MC210CS is a media converter designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 9.3 miles (15km). |
