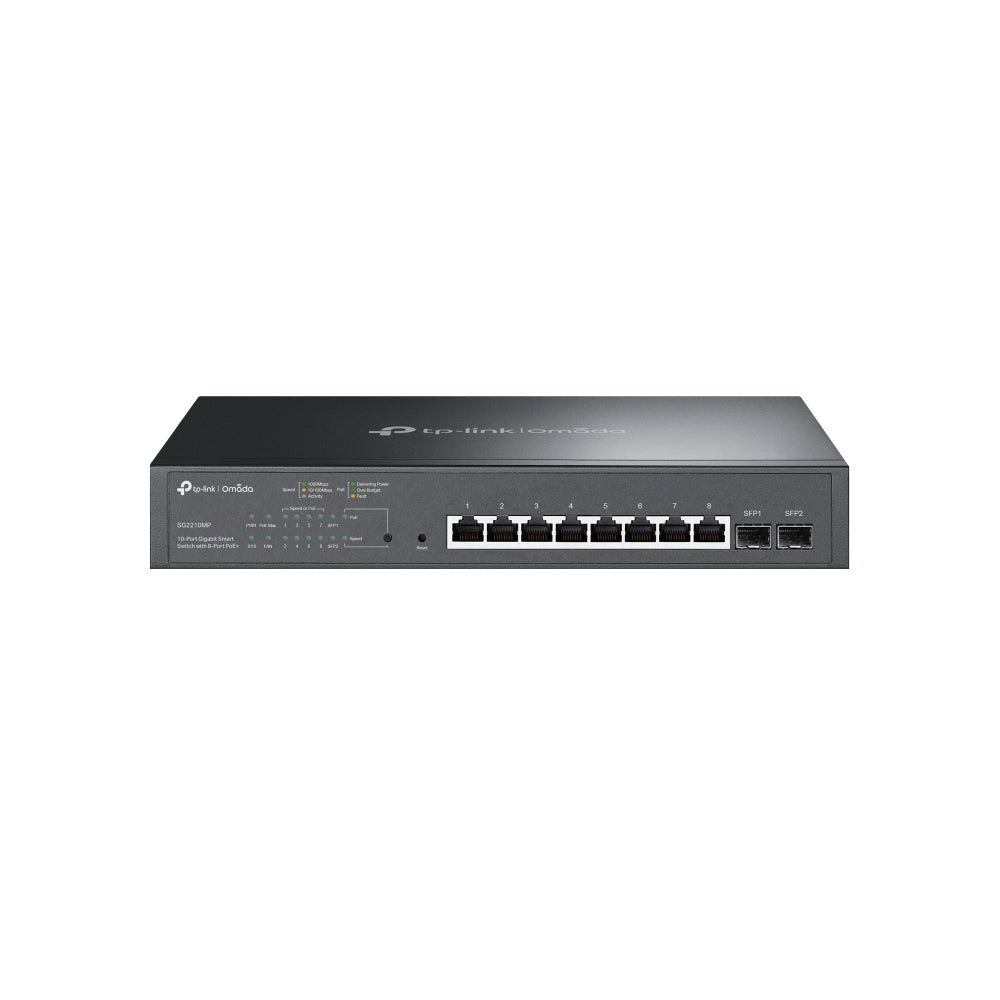

TP-Link Omada 10-Port Gigabit Smart Switch with 8-Port PoE+
Regular price
$303.44
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Available in stock (70)
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Switch type: Managed
- Operating temperature (T-T): 0 - 50 °C
- Operating relative humidity (H-H): 10 - 90%
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE): Yes
- Switching capacity: 20 Gbit/s
- MAC address table: 8000 entries
- 10G support: No
- Storage relative humidity (H-H): 5 - 90%
- Quality of Service (QoS) support: Yes
- Rack mounting: Yes
- Flow control support: Yes
- Jumbo frames support: Yes
- Switch layer: L2/L2+
- Forwarding rate: 14.9 Mpps
- Jumbo frames: 9000
- AC input voltage: 100 - 240 V
Certificates
- Certification
- CE, FCC, RoHS
Data transmission
- Number of queues
- 8
- Packet buffer memory
- 4.1MB
Design
- Form factor
- 1U
- Number of fans
- 1 fan(s)
Management features
- ARP inspection
- Yes
- Cloud-managed
- Yes
- Configuring Location Settings (CLI)
- Yes
- MIB support
- RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1213, RFC2233, RFC1643, RFC1493
- System event log
- Yes
- Web-based management
- Yes
Multicast features
- Multicast support
- Yes
Network
- Broadcast storm control
- Yes
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX, 1000BASE-T
- Link aggregation
- Yes
- Number of VLANs
- 4000
- Port mirroring
- Yes
- Rate limiting
- Yes
- Spanning tree protocol
- Yes
- Virtual LAN features
- MAC address-based VLAN, Multicast VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
- VLAN support
- Yes
Operational conditions
- Heat dissipation
- 594.46 BTU/h
- Storage temperature (T-T)
- -40 - 70 °C
Optical fiber
- Fiber ethernet cabling technology
- 100BASE-FX, 1000BASE-X
Ports & interfaces
- Gigabit Ethernet (copper) ports quantity
- 8
- SFP module slots quantity
- 2
Power
- AC input frequency
- 50/60 Hz
- Power consumption (max)
- 173.9 W
- Power source
- AC
- Power supply included
- Yes
Power over Ethernet (PoE)
- Power over Ethernet plus (PoE+) ports quantity
- 8
- Total Power over Ethernet (PoE) budget
- 150 W
Protocols
- Management protocols
- SNMPv1/v2c/v3, SNTP
Security
- Access Control List (ACL)
- Yes
- BPDU filtering/protection
- Yes
- DHCP features
- DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
- IGMP snooping
- Yes
- IP-MAC-Port binding
- Yes
- Queue scheduling algorithms
- SP, Weighted Round Robin (WRR)
- Security algorithms
- EAP-LEAP, EAP-MD5, EAP-TLS, EAP-TTLS, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
- SSH/SSL support
- Yes
Weight & dimensions
- Depth
- 18 cm
- Height
- 4.4 cm
- Width
- 29.4 cm
Power supply included
Materials
Compare With Similar Items
|
|
|
|
|
|
| Description | TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance. |

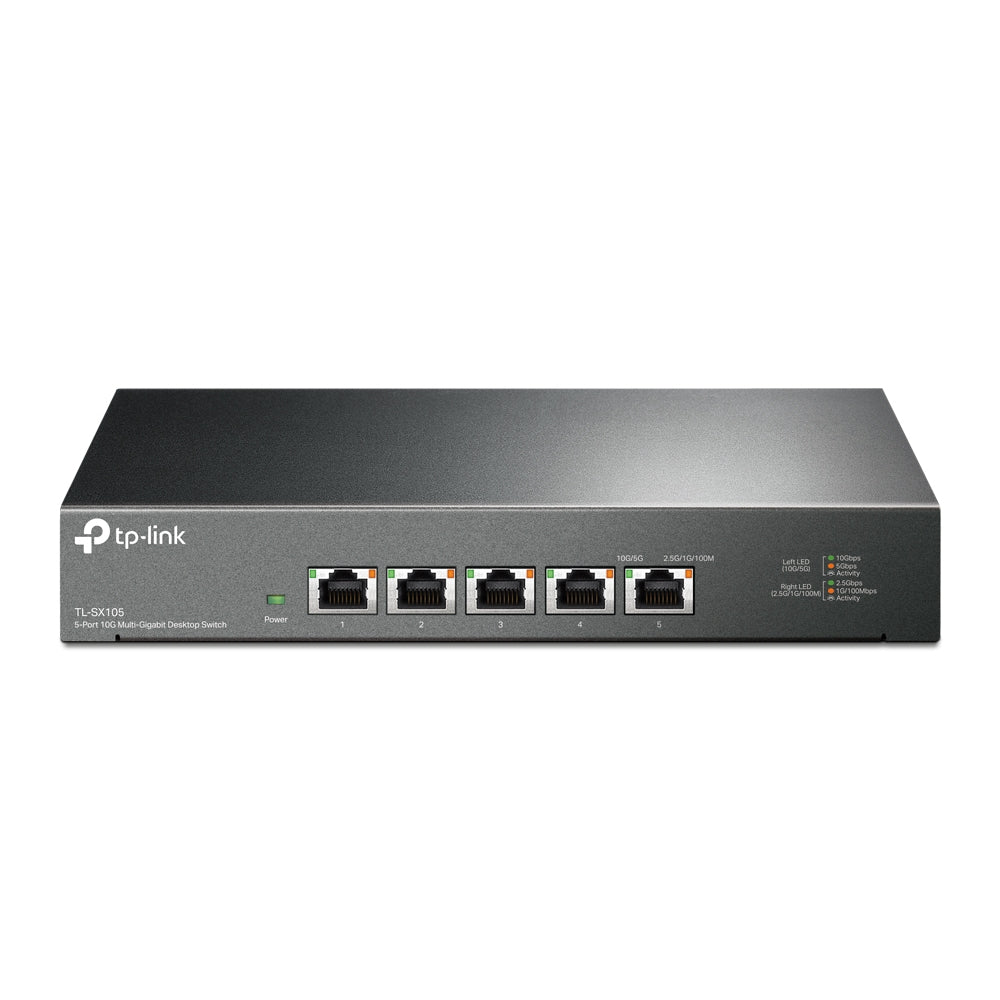

Futuristic Networking with Lightning-Fast 10G Connections 5-Port 10G Desktop Switch Unlock the Highest Performance of 10G/Multi-Gig Bandwidth and Devices As the flagship 10G product, TL-SX105 is a 5-port 10G desktop switch, providing up to 100 Gbps of switching capacity. Auto-negotiation 5-speed (100Mbps/1G/2.5G/5G/10G) connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including 10G NAS, 10G server, workstation, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, desktop, and more. Ready for Immediate Network Upgrading to 10G? Reliable, lightning-fast connections and the lowest possible latency make it ideal for gaming and small office and home office use. LAN Party Never host a laggy LAN party again. Experience the unparalleled speed and let the game run smoothly. Home Entertainment Enjoy a fun game time and 8K videos with friends and family, without having to ever worry about buffering again. Small and Home Offices Work at office or home with lightning-fast connections to workstations and WiFi 6 access points. Instant Transfer for Workstations Immediately back up and store computer files to NAS storage with increased transfer speeds, never waste time. Built for Smooth LAN Parties Never host a laggy LAN party again. Experience the unparalleled speed and lower latency, and prioritize gaming traffic with QoS. Let’s begin the unprecedented smooth game! Ideal for Home Entertainment Enjoy Buffer-Free 8K Videos Enjoy buffer-free multi-channel 8K videos with friends and family for movie nights with maximum entertainment. More 10GE LAN Ports for WiFi 6 Networking Expand the 10GE LAN ports of your WiFi 6 routers and connect more devices—all running at max 10 Gbps. Lightning-Fast Connections for Business and Home Office Work at office or home with lightning-fast connections to workstations, desktop computers, and WiFi 6 access points. Silent Operation with Industry-Leading Fanless Design The revolutionary fanless design ensures unprecedented silent operation, ideal for any home or business. Durable metal casing, desktop/wall-mounting design and professional heat dissipation design are well-suited for different environments. Just Plug and Play for Internet Access A plug-and-play design allows for easy deployment without the need for a technician. Auto MDI/MDIX eliminates the need for crossover cables. Flexible Deployment Options The versatile mounting system gives you the flexibility to place the 10G switch on a desktop or mount it to a wall. Same Cables, New Speed Designed to integrate flawlessly into existing gigabit Ethernet network infrastructures, guaranteeing speeds 5× faster§ using standard Cat5e Ethernet cables—no Cat6 wiring needed. With Cat6a or higher rated cables, 10G connections are built up to 100 meters (328 feet). |

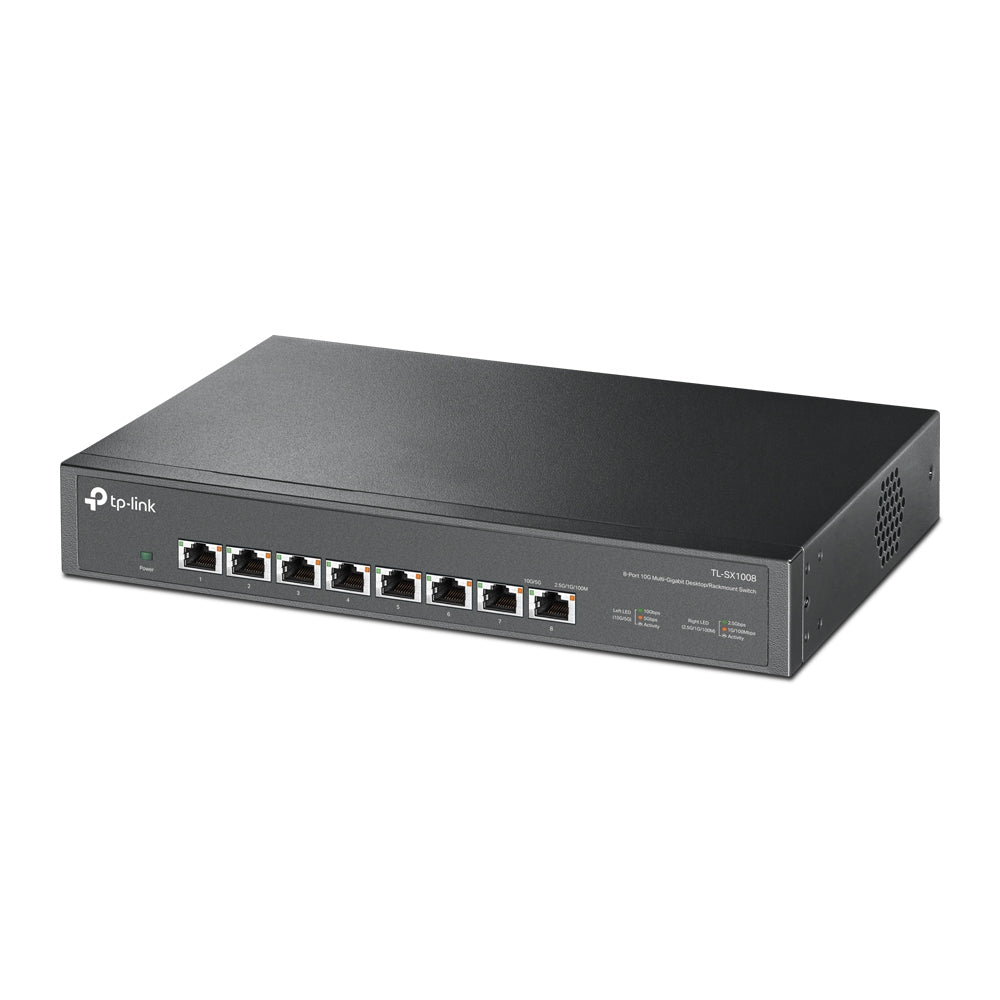

Futuristic Networking with Lightning-Fast 10G Connections 8-Port 10G Desktop/Rackmount Switch Unlock the Highest Performance of 10G/Multi-Gig Bandwidth and Devices As the flagship 10G product, TL-SX1008 is an 8-port 10G desktop/rackmount switch, providing up to 160 Gbps of switching capacity. Auto-negotiation 5-speed (100Mbps/1G/2.5G/5G/10G) connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including 10G NAS, 10G server, workstation, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, desktop, and more. Ready for Immediate Network Upgrading to 10G? Reliable, lightning-fast connections and the lowest possible latency make it ideal for gaming and small office and home office use. Lightning-Fast Connections for Business and Home Office Work at office or home with lightning-fast connections to workstations, desktop computers, and WiFi 6 access points. Built for Smooth LAN Parties Never host a laggy LAN party again. Experience the unparalleled speed and lower latency, and prioritize gaming traffic with QoS. Let’s begin the unprecedented smooth game! Low-Noise Operation and Robust Design Intelligent fan speed adjustment ensures minimal noise to be non-distracting when in use. Durable metal casing and a heat dissipating design guarantee a wide operating temperature (0–50 ℃) that make it ideal for virtually any working environment. Just Plug and Play for Internet Access A plug-and-play design allows for easy deployment without the need for a technician. Auto MDI/MDIX eliminates the need for crossover cables. Flexible Deployment Options The versatile mounting system gives you the flexibility to place the TL-SX1008 on a desktop or mount it in a rack. |

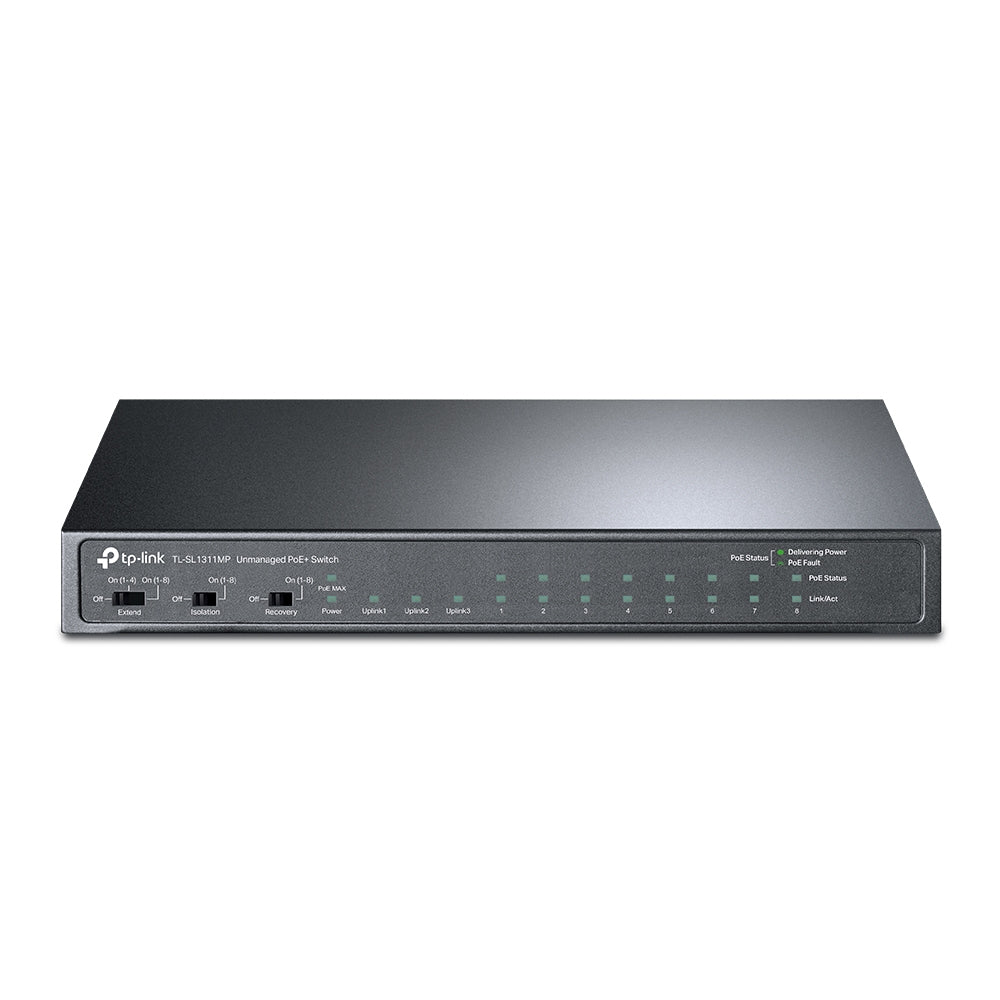

What This Product Does TP-Link desktop switch TL-SL1311MP is an unmanaged switch with 8× 10/100Mbps ports and 3× Gigabit ports that requires no configuration. With 8× PoE (Power over Ethernet) ports, it can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc. Professional 11-Port Switch with 8-Port PoE+ (124 W Budget) for Numerous Applications Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 124 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more. Ideal for IP Surveillance—Long-Range PoE Transmission and One-Click Traffic Separation With Extend Mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas. With one click, Isolation Mode easily divides traffic for ports 1–8 to avoid snooping and tampering. This enables the switch to isolate broadcast storm for higher security and performance. Intelligent Power Management When total power consumption exceeds 124 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged. Durable Metal Casing The interior components of TL-SL1311MP are protected by high-quality metal casing to ensure a long product life. Its fanless design delivers zero added noise in their locations. Having passed an array of stringent reliability tests, TL-SL1311MP delivers switching performance you can depend on. |

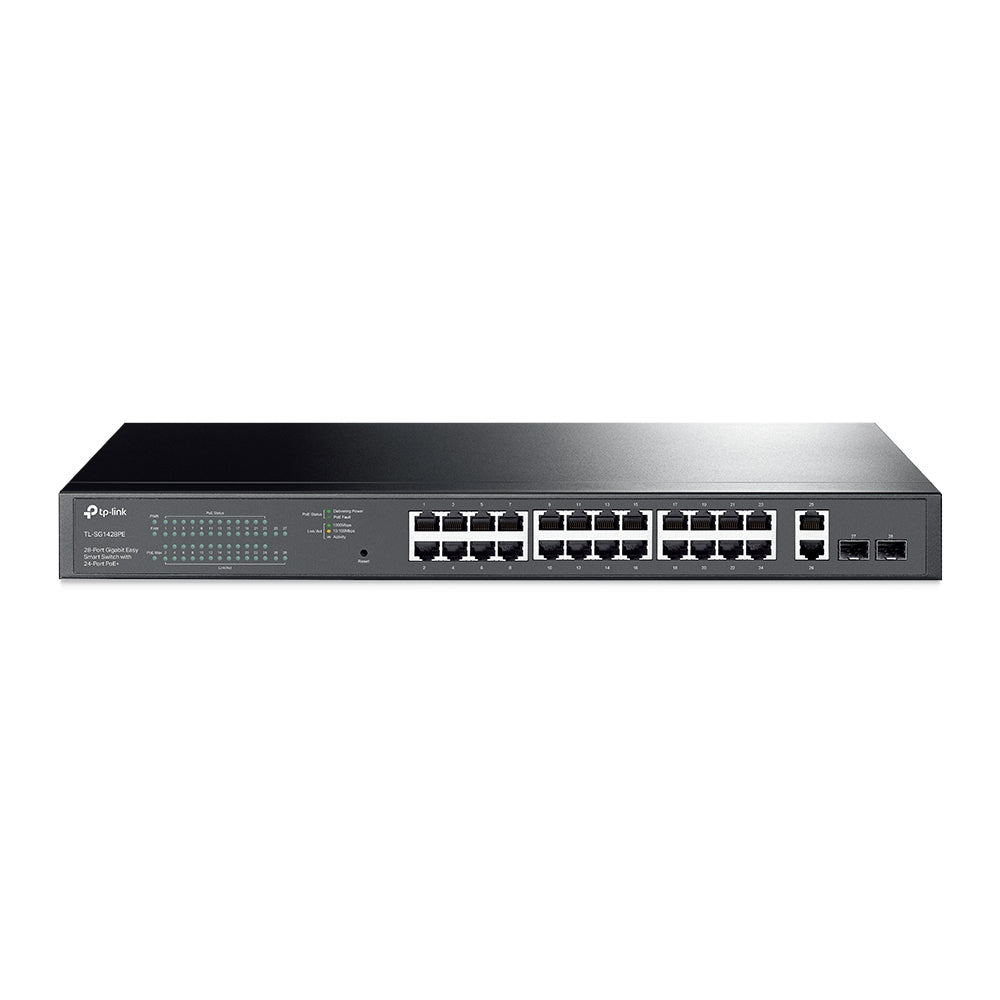

Professional High Power 28-Port Gigabit Easy Smart Switch with 24-Port PoE+ Easy to Use, Multi-Purpose PoE Switch with Powerful Performance Multiple Application Scenarios The TL-SG1428PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV. Dedicated 24 PoE+ Ports (250 W Budget) for Numerous Applications Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24× gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc. Easy to Use Value-Added Features Bring Unexpected Experiences QoS for a Lag-Free Experience Ensures smooth traffic for latency-sensitive applications, such as voice and video. IGMP Snooping for Multicast Optimization Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery. VLAN for Security Helps to create a network with higher security and better overall performance by dividing the network into smaller groups. Making Management Easy TL-SG1428PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1428PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS. Multiple Factors Guarantee Stable Operation System Self-Healing with PoE Auto Recovery The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart. Intelligent Power Management to Prevent Power Overload Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 250 W. This protects the device from power overload operation. Great Compatibility with PD Detection Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged. Wide Operating Temperature with Good Heat Dissipation Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability. |
