TP-Link TL-SG1008MP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Regular price
$177.28
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Available in stock (51)
What This Product Does

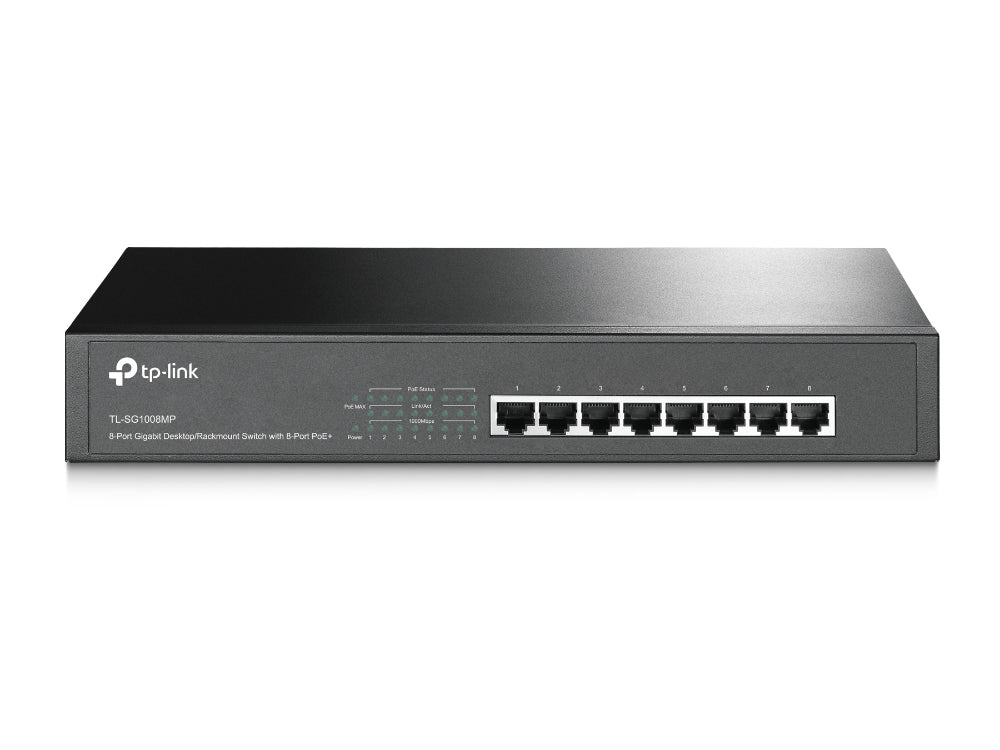

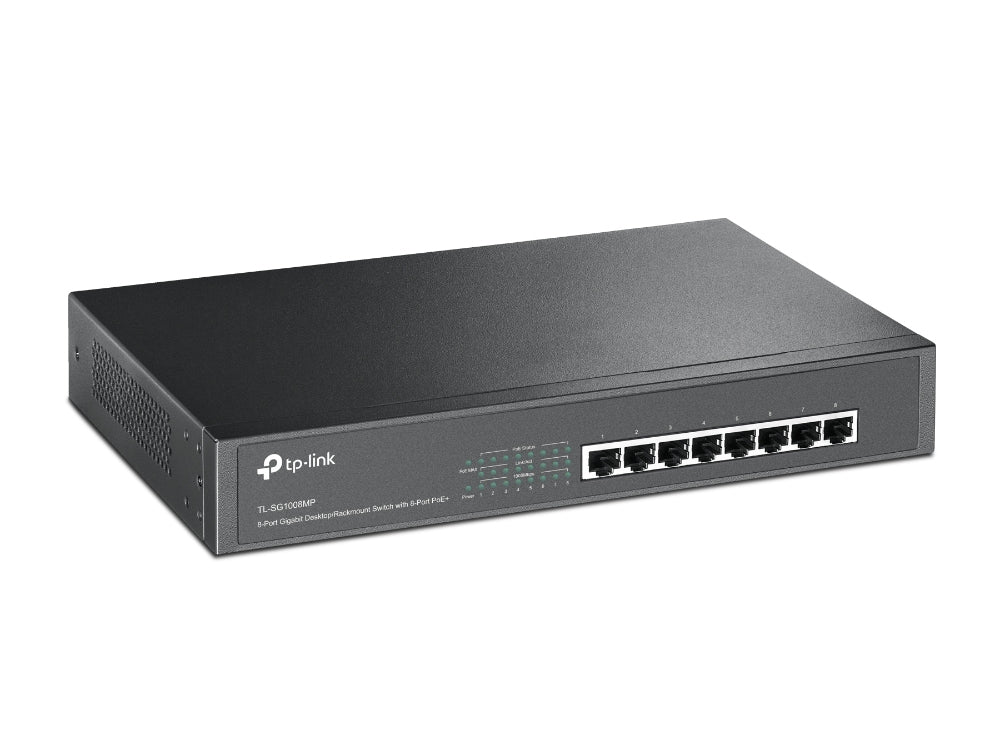

The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
How This Product Works
All 8 ports of TL-SG1008MP support Power over Ethernet (IEEE 802.3af/at, PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). The electrical power is transmitted along with data in a single cable, allowing you to expand your network where there is no electrical outlet, and feed the devices such as wireless APs, cameras, and phones.
Prioritized Power Supply
Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power on Port 7 to protect the switch being overload. This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied on Port 7 as it has the lowest priority among the ports in use.
Easy To Use
TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.
The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
How This Product Works
All 8 ports of TL-SG1008MP support Power over Ethernet (IEEE 802.3af/at, PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). The electrical power is transmitted along with data in a single cable, allowing you to expand your network where there is no electrical outlet, and feed the devices such as wireless APs, cameras, and phones.
Prioritized Power Supply
Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power on Port 7 to protect the switch being overload. This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied on Port 7 as it has the lowest priority among the ports in use.
Easy To Use
TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Switch type: Unmanaged
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 10 - 90%
- Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE): Yes
- Switching capacity: 16 Gbit/s
- MAC address table: 4000 entries
- 10G support: No
- Storage relative humidity (H-H): 5 - 90%
- Rack mounting: Yes
- AC input voltage: 100 - 240 V
- Power supply included: Yes
- Packet buffer memory: 1.5MB
- Store-and-forward: Yes
- AC input frequency: 50 - 60 Hz
- Auto MDI/MDI-X: Yes
- Certification: FCC, CE, RoHS
Design
- Number of fans
- 1 fan(s)
Logistics data
- Harmonized System (HS) code
- 85176990
Network
- Auto-negotiation
- Yes
Operational conditions
- Heat dissipation
- 492.6 BTU/h
- Storage temperature (T-T)
- -40 - 70 °C
Packaging content
- Cables included
- AC
- Rack mount kit
- Yes
- User guide
- Yes
Performance
- Commodity Classification Automated Tracking System (CCATS)
- 11
- Mean time between failures (MTBF)
- 1 h
- Minimum system requirements
- 1
- MTBF (PoE)
- 1 h
Power
- Power consumption (max)
- 144.4 W
- Power consumption (typical)
- 140.1 W
Power over Ethernet (PoE)
- Power over Ethernet plus (PoE+) ports quantity
- 8
Technical details
- Layers per pallet (air)
- 1 pc(s)
- Layers per pallet (sea)
- 1 pc(s)
- Master (outer) cases per pallet (air)
- 11 pc(s)
- Master (outer) cases per pallet (sea)
- 1 pc(s)
- Master (outer) cases per pallet layer
- 1 pc(s)
- Pallet gross length
- 0.1 cm
- Pallet gross weight (air)
- 0 kg
- Pallet gross weight (sea)
- 0 kg
- Pallet gross width
- 0.1 cm
- Pallet height (air)
- 0.1 cm
- Pallet height (sea)
- 0.1 cm
- Products per pallet (air)
- 1 pc(s)
- Products per pallet (sea)
- 11 pc(s)
- Products per shipping (inner) case
- 1 pc(s)
- Shipping (inner) case gross weight
- 0 kg
- Shipping (inner) case height
- 0.1 cm
- Shipping (inner) case length
- 0.1 cm
- Shipping (inner) case net weight
- 0 kg
- Shipping (inner) case width
- 0.1 cm
Weight & dimensions
- Depth
- 18 cm
- Height
- 4.4 cm
- Width
- 29.4 cm
Cables included: AC
Power supply included
Power supply included
Materials
