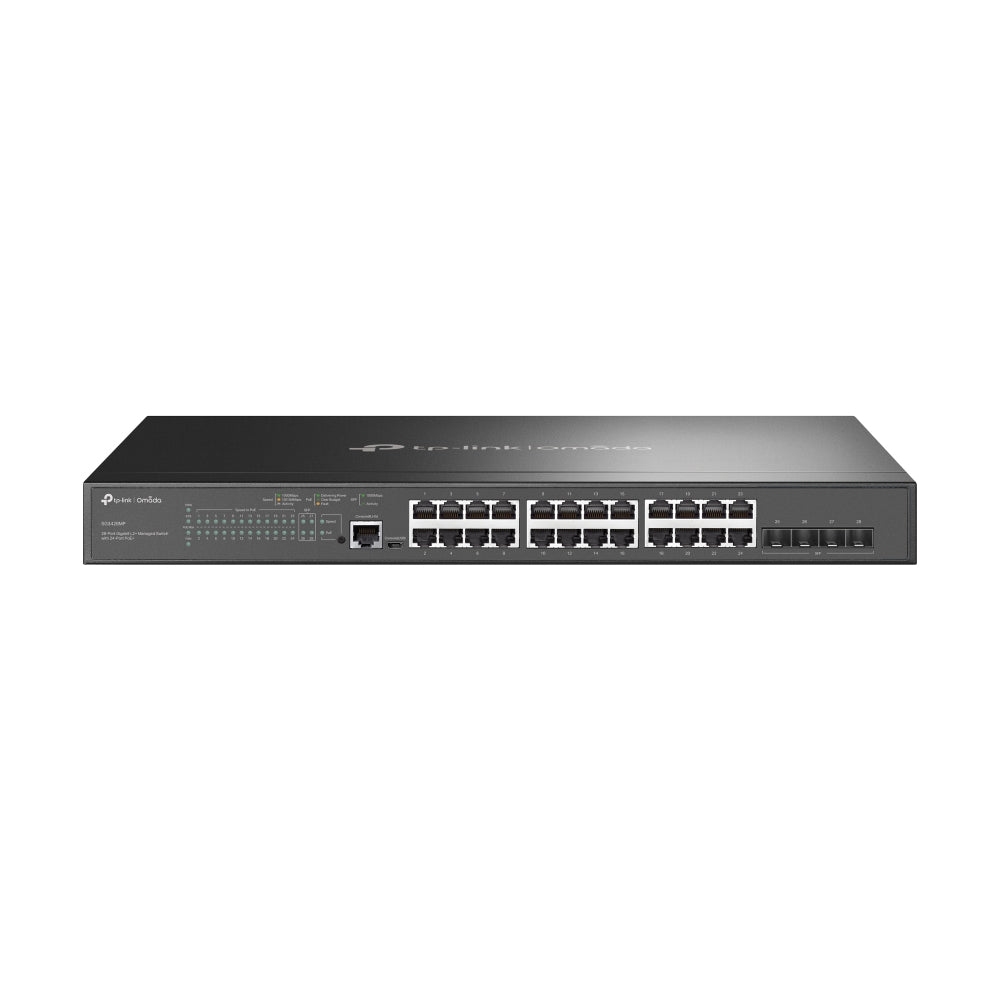

TP-Link Omada 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+
Regular price
$787.86
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Available in stock (23)
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static
routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port
Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.
routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port
Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Switch type: Managed
- Operating temperature (T-T): 0 - 45 °C
- Operating relative humidity (H-H): 10 - 90%
- Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE): Yes
- Switching capacity: 56 Gbit/s
- MAC address table: 16000 entries
- 10G support: No
- Storage relative humidity (H-H): 5 - 90%
- LED indicators: Yes
- Quality of Service (QoS) support: Yes
- Rack mounting: Yes
- Flow control support: Yes
- Jumbo frames support: Yes
- Switch layer: L2+
- Forwarding rate: 41.66 Mpps
- Jumbo frames: 9000
Certificates
- Certification
- CE, FCC, RoHS
Data transmission
- Packet buffer memory
- 12MB
- Store-and-forward
- Yes
Design
- Form factor
- 1U
- Number of fans
- 2 fan(s)
Management features
- ARP inspection
- Yes
- Cloud-managed
- Yes
- Configuring Location Settings (CLI)
- Yes
- System event log
- Yes
- Web-based management
- Yes
Multicast features
- Multicast support
- Yes
Network
- Active link detection
- Yes
- Broadcast storm control
- Yes
- Copper ethernet cabling technology
- 10BASE-T, 1000BASE-T
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Head-of-line (HOL) blocking
- Yes
- IP routing
- Yes
- Link aggregation
- Yes
- Number of VLANs
- 4000
- Port mirroring
- Yes
- Rate limiting
- Yes
- Spanning tree protocol
- Yes
- Virtual LAN features
- MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
- VLAN support
- Yes
Operational conditions
- Heat dissipation
- 1637.14 BTU/h
- Storage temperature (T-T)
- -40 - 70 °C
Packaging content
- Quick start guide
- Yes
- User guide
- Yes
Performance
- Export Control Classification Number (ECCN)
- EAR99
Ports & interfaces
- Console port
- RJ-45/Micro-USB
- Gigabit Ethernet (copper) ports quantity
- 24
- Power connector
- AC-in jack
- SFP module slots quantity
- 4
Power
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Power consumption (max)
- 480.1 W
- Power source
- AC
- Power supply included
- Yes
Power over Ethernet (PoE)
- Power over Ethernet (PoE) power per port
- 30 W
- Power over Ethernet plus (PoE+) ports quantity
- 24
- Total Power over Ethernet (PoE) budget
- 384 W
Protocols
- GARP VLAN Registration Protocol (GVRP)
- Yes
- Management protocols
- SNMPv1/v2c/v3, LLDP/LLDP-MED
Security
- Access Control List (ACL)
- Yes
- Authentication
- MAC-based authentication, Port-based authentication
- BPDU filtering/protection
- Yes
- DHCP features
- DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
- IGMP snooping
- Yes
- IP-MAC-Port binding
- Yes
- Loop protection
- Yes
- MAC address filtering
- Yes
- Security algorithms
- SSH, SSL/TLS
- SSH/SSL support
- Yes
- Static port security
- Yes
Weight & dimensions
- Depth
- 33 cm
- Height
- 4.4 cm
- Width
- 44 cm
Quick start guide
Power supply included
Power supply included
Materials
