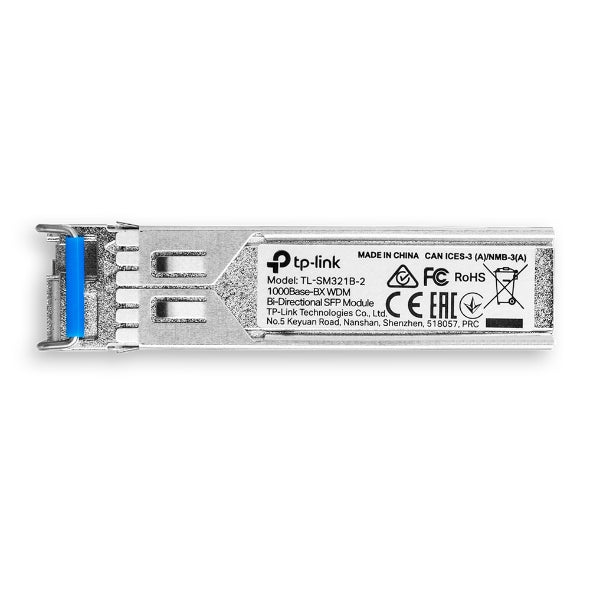

TP-Link Omada Gigabit Single-Mode WDM Bi-Directional SFP Module
Regular price
$48.10
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Hurry up, only 1 item left in stock.

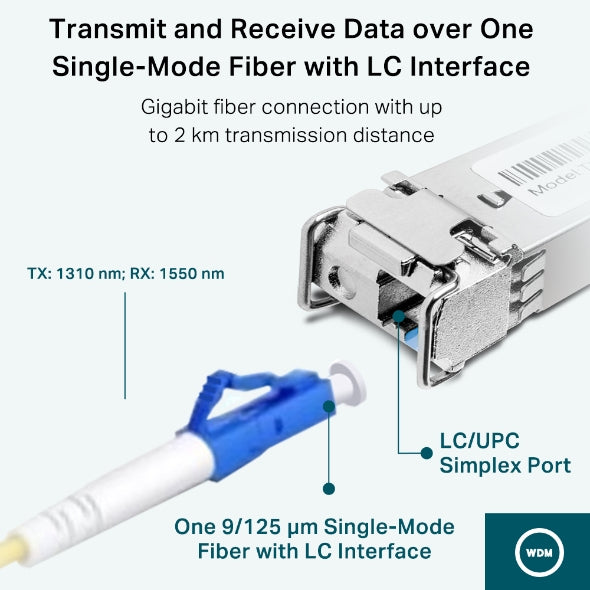

TP-LINK´s TL-SM321B adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km(6.2 miles) with TP-LINK´s Routers, Switches, Media Converters to provide high speed and stability.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Metallic
- Interface type: SFP
- SFP transceiver type: Fiber optic
- Maximum transfer distance: 1000 m
- Harmonized System (HS) code: 85369010
- Fiber optic connector: LC
- SFP transceiver standard: BX
- Certification: FCC, CE
- Multi-mode fiber (MMF) supported: No
- Compliance certificates: RoHS
- Single-mode fiber (SMF) supported: Yes
- Networking standards: IEEE 802.3z
- Operating temperature (T-T): 0 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Tx wavelength (max): 1310 nm
- Rx wavelength (max): 1550 nm
- Wavelength-division multiplexing (WDM): Yes
- Storage relative humidity (H-H): 5 - 90%
- Fiber cable diameters supported (core/cladding): 9/125 µm
- User guide: Yes
Operational conditions
- Storage temperature (T-T)
- -40 - 80 °C
Packaging content
- Quantity per pack
- 1 pc(s)
Packaging data
- Package depth
- 12.25 cm
- Package height
- 3.85 cm
- Package weight
- 0.06 kg
- Package width
- 8.15 cm
Performance
- Maximum data transfer rate
- 1250 Mbit/s
Weight & dimensions
- Depth
- 1.46 cm
- Height
- 1.29 cm
- Width
- 5.54 cm
Materials
Compare With Similar Items
|
|
|
|
|
|
|
| Description | TP-LINK´s TL-SM321B adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km(6.2 miles) with TP-LINK´s Routers, Switches, Media Converters to provide high speed and stability. |
10 Gbps | Multi Mode Fiber | LC | 200 m (656 ft) | Lifetime Warranty The J9152D-ST is a HPE J9152D compatible fiber transceiver module that has been designed, programmed and tested to work with HPE brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LRM compliant networks, with a maximum distance of up to 200 m (656 ft). Technical Specifications: • Wavelength: 1310nm • Maximum Data Transfer Rate: 10 Gbps • Type: Multi Mode Fiber • Connection Type: LC Connector • Maximum Transfer Distance: 200 m (656 ft) • MTBF: 145,858,878 hours • Power Consumption: • Digital Diagnostics Monitoring (DDM): Yes This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance. |
10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty The J9151E-ST is a HPE J9151E compatible fiber transceiver module that has been designed, programmed and tested to work with HPE brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi). Technical Specifications: • Wavelength: 1310nm • Maximum Data Transfer Rate: 10 Gbps • Type: Single Mode Fiber • Connection Type: LC Connector • Maximum Transfer Distance: 10 km (6.2 mi) • MTBF: 1,386,624,697 hours • Power Consumption: • Digital Diagnostics Monitoring (DDM): Yes This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP+ modules and direct-attach SFP+ cables, providing the convenience and reliability you need to ensure dependable network performance. |
10 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty The J9150D-ST is a HPE J9150D compatible fiber transceiver module that has been designed, programmed and tested to work with HPE brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft). Technical Specifications: • Wavelength: 850nm • Maximum Data Transfer Rate: 10 Gbps • Type: Multi Mode Fiber • Connection Type: LC Connector • Maximum Transfer Distance: 300 m (984 ft) • MTBF: 498,745,585 hours • Power Consumption: • Digital Diagnostics Monitoring (DDM): Yes This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance. |
1000 Mbps (1 Gbps) | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty The J8177CST is an HPE J8177C compatible copper transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft). Technical Specifications: • Maximum Data Transfer Rate: 1000 Mbps • Type: Copper • Connection Type: RJ45 Connector • Maximum Transfer Distance: 100 m (328 ft) • MTBF: 4,655,371 hours • Power Consumption: Less than 1.3 Watts • Digital Diagnostics Monitoring (DDM): No This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance. |
