TP-Link 10/100 Mbps WDM Media Converter
Regular price
$51.58
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
What This Product Does

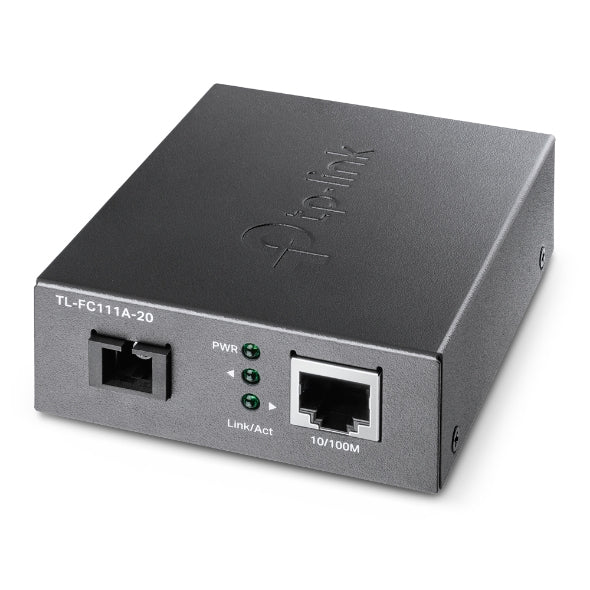

TL-FC111A-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works

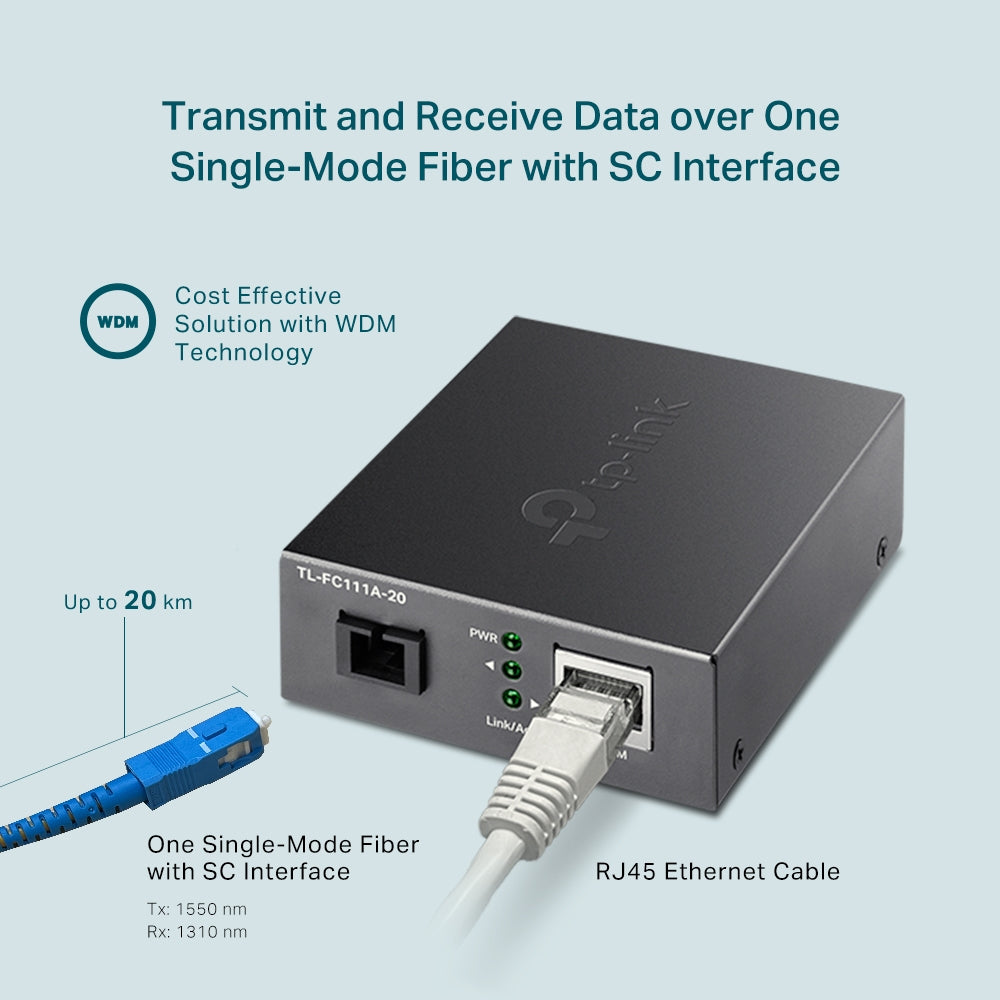

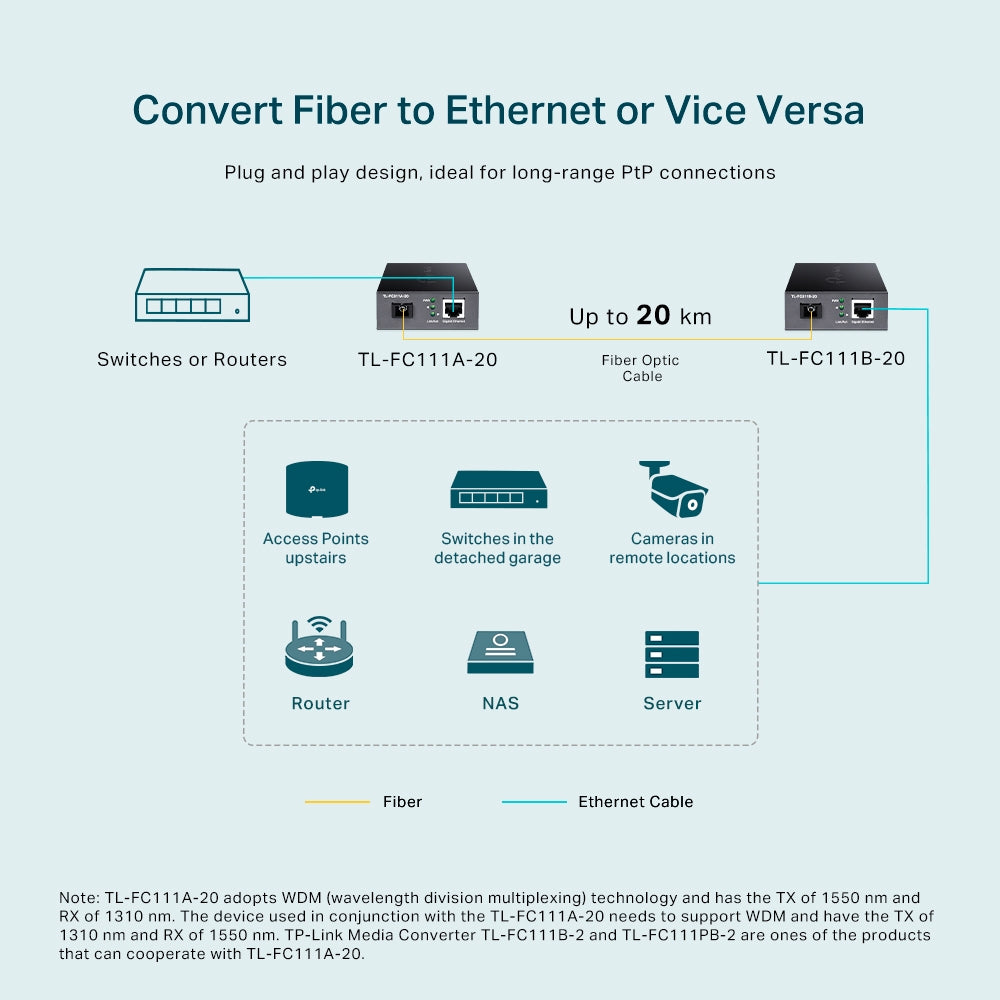

TL-FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at wavelength 1550nm and sending data at wavelength 1310nm.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
TL-FC111A-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works
TL-FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at wavelength 1550nm and sending data at wavelength 1310nm.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Internal: No
- Fiber optic connector: SC
- Operating temperature (T-T): 0 - 50 °C
- Operating relative humidity (H-H): 10 - 90%
- Ethernet LAN (RJ-45) ports: Yes
- Connectivity technology: Wired
- Auto MDI/MDI-X: Yes
- Fiber mode structure: Single-mode
- Fiber ports quantity: 1
- Duplex system: Full, Half
- Compliance certificates: RoHS
- Networking standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3u
- LED indicators: Activity, Link, Power
- Maximum transfer distance: 20000 m
- Ethernet LAN data rates: 10,100 Mbit/s
- Harmonized System (HS) code: 85176990
- Certification: FCC, CE
- Auto-negotiation: Yes
- Storage relative humidity (H-H): 5 - 90%
Network
- Cable types supported
- Cat3, Cat4, Cat5, Cat5e
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-T
- Fiber ethernet cabling technology
- 100BASE-FX
- Flow control support
- Yes
- Maximum data transfer rate
- 100 Mbit/s
Operational conditions
- Storage temperature (T-T)
- -40 - 70 °C
Packaging data
- Package depth
- 20.4 cm
- Package height
- 6.5 cm
- Package weight
- 0.36 kg
- Package width
- 16.5 cm
Performance
- Fiber cable diameters supported (core/cladding)
- 9/125 µm

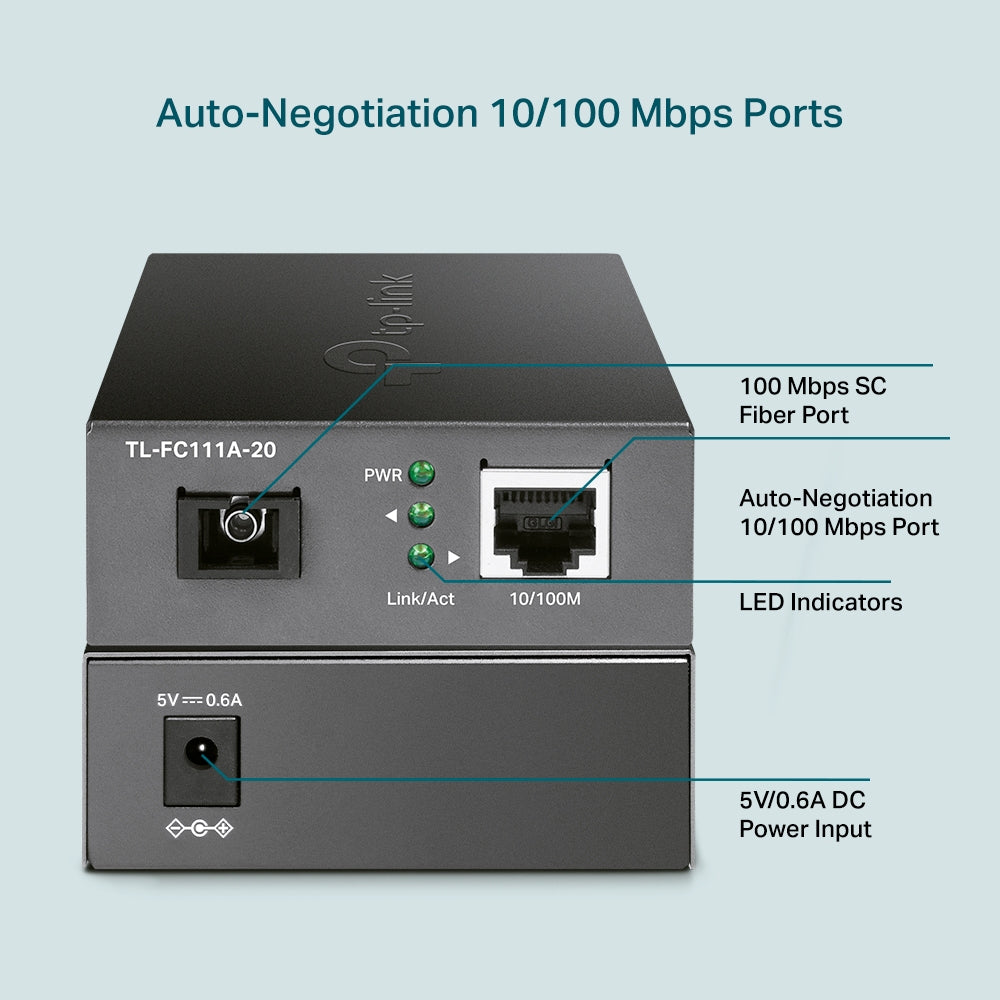

Power
- Output current
- 0.6 A
- Output voltage
- 5 V

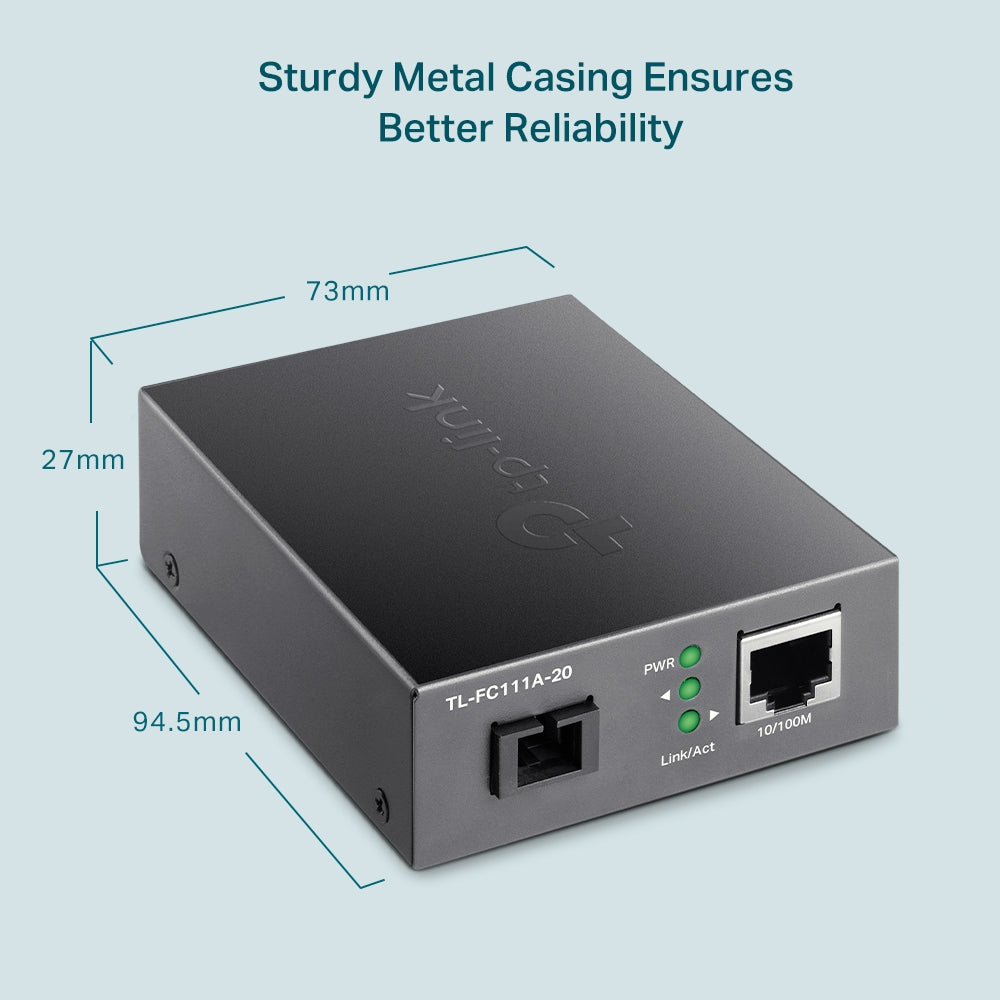

Weight & dimensions
- Depth
- 7.3 cm
- Height
- 2.7 cm
- Width
- 9.45 cm
Materials
Compare With Similar Items
|
|
|
|
|
|
|
| Description | What This Product Does TL-FC111A-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking. How This Product Works TL-FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at wavelength 1550nm and sending data at wavelength 1310nm. Other Features Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated. |

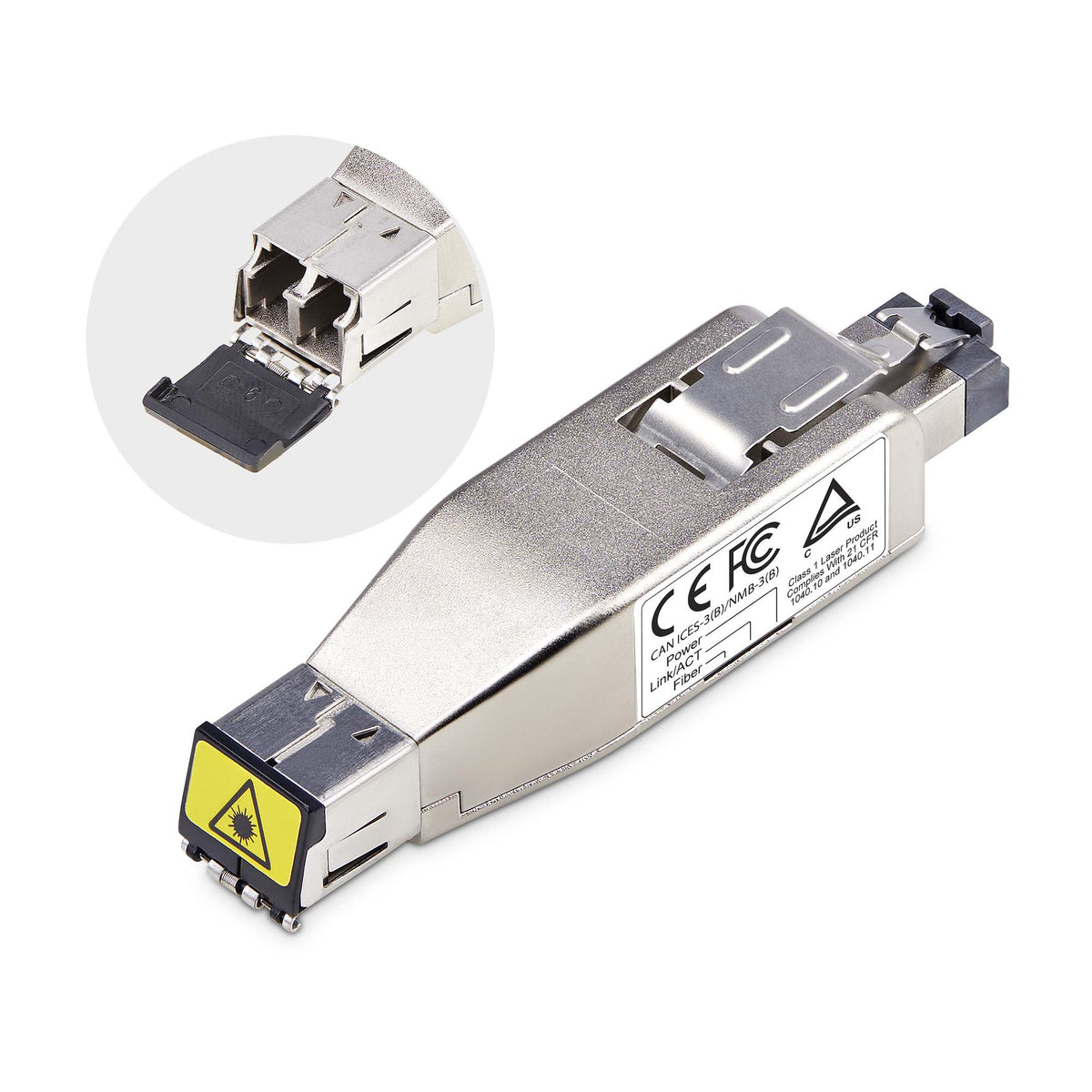

Convert and extend a Gigabit RJ45 Ethernet connection over single or multimode LC fiber This compact Gigabit Fiber to Ethernet Media Converter enables Cat6 or similar cabling to be upgraded to an EMI-free fiber connection. The TAA-compliant adapter is PoE powered, making it a perfect choice when external power options are unavailable. Simplified Installation The unmanaged fiber media converter features a plug-and-play design that does not require additional software or settings to be changed. The metal housing features an IP20 rating and is an all-in-one construction with integrated LC fiber and RJ45 ports. The RJ45 side features a metal tab to ensure a reliable and secure fit and prevent accidental disconnections. Network Features The PoE media converter is designed to work seamlessly with any networking equipment that is PoE-capable and supports the 802.3af standard or higher. It comes equipped with a range of PoE protection features, including Over Voltage Protection (OVP), Over Current Protection (OCP), Over Temperature Protection (OTP), and 2KV Surge Protection. The LC slot is compatible with Single-Mode (10km) and Multimode (800m) fiber cables up to 1Gbps. A spring-loaded tab protects the port when not in use. The converter supports LFPT (Link Fault Pass-Through), allowing IT administrators to monitor and assess network connectivity at a glance based on the LED behavior. Compatibility This LAN-to-fiber converter is ideal for upgrading computers, switches, routers, or other equipment from copper to fiber. It suits various applications, including field deployments, industrial automation, telecommunications, broadcasting, data centers, and remote networking. Experience reliable connectivity with EMI immunity over long distances with this compact (3.2×0.8×0.7in/82.39x20x17.5mm) and power-efficient (2.5W max) dongle. |

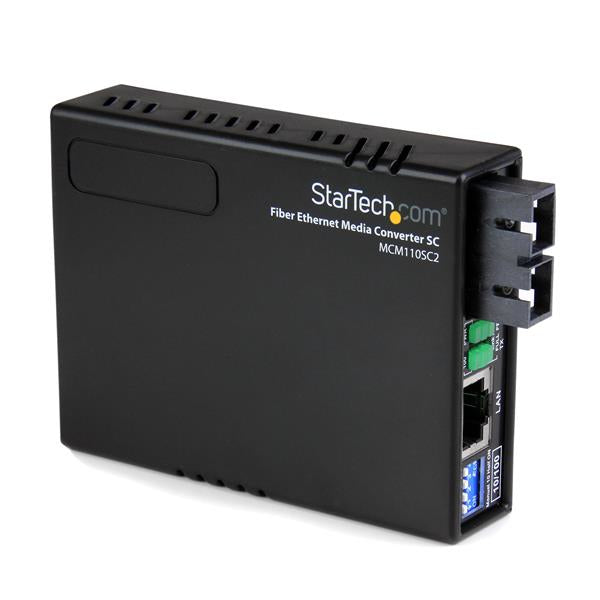

Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode SC fiber The MCM110SC2 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km creates an economical, cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over an SC terminated multimode fiber backbone. The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability. This versatile Ethernet to Fiber converter is compatible with most 3COM™, Cisco™, Lucent™ and Nortel™ networks and fully complies with applicable IEEE 802.3 standards. |

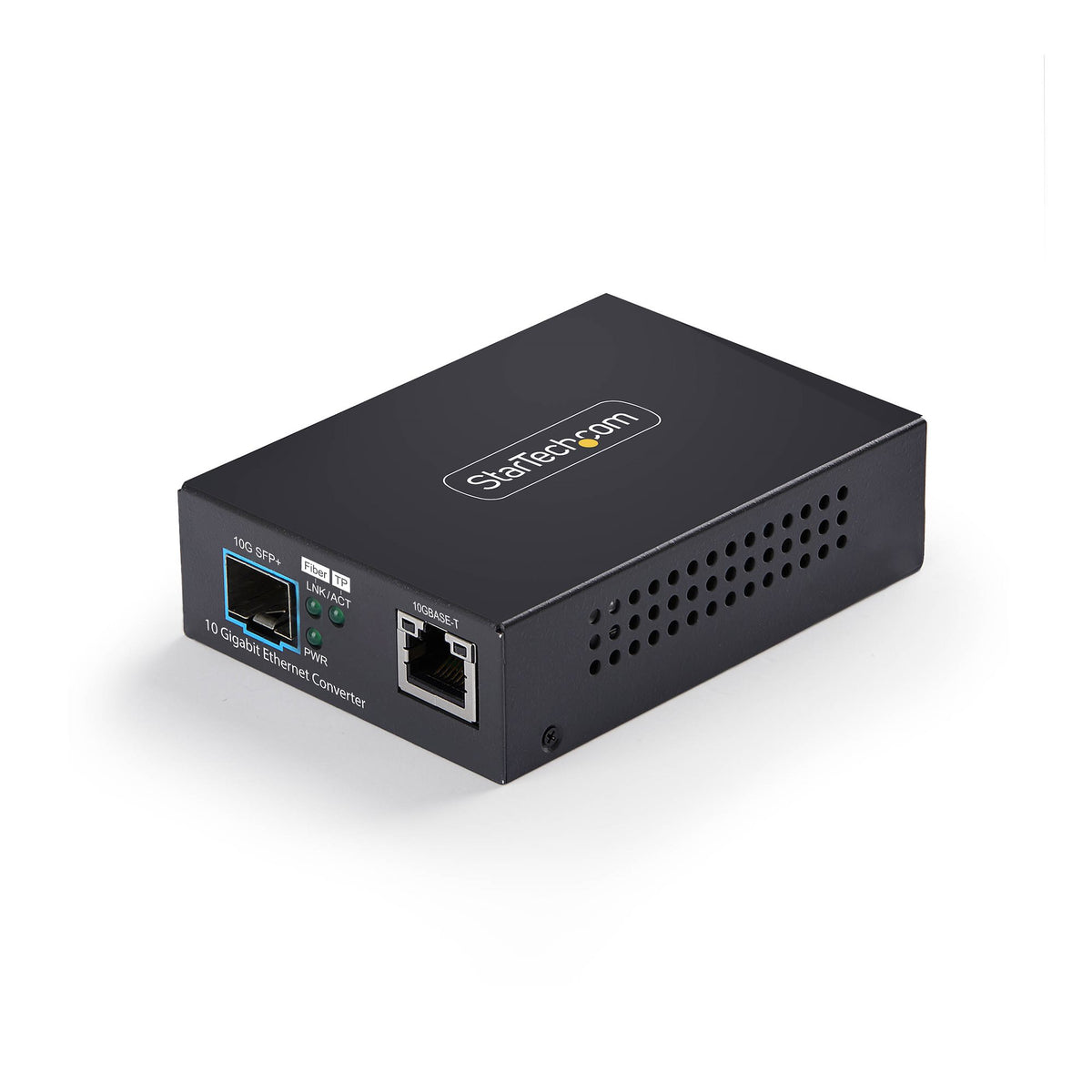

Connect a Gigabit copper network to a Gigabit fiber network using an SFP+ transceiver of your choice. High-Speed Copper-to-Fiber Conversion This compact 10G media converter enables seamless copper-to-fiber connectivity for high-speed network upgrades and extended reach. Featuring an open SFP+ slot, it converts 10GBASE-T (RJ-45) to 10G fiber and supports multi-mode or single-mode transceivers (e.g., 10GBASE-SR/LR) for flexible deployment across enterprise and telecom environments. Versatile Mounting and Deployment Ideal for structured wiring closets, server rooms, or remote network upgrades, the converter supports wall-mount, DIN rail, and chassis installations. It can operate as a standalone device or integrate into a media converter chassis system. Optimized for 10Gbps Networks Built for 10G speeds, the converter supports 16K Jumbo Frames, auto MDI/MDI-X, and full-duplex flow control. With plug-and-play setup and reliable diagnostics, it ensures consistent performance across 10G links. Efficient, Compact Design With low 5.3W (typical) power consumption via 5V DC input, this power-efficient converter operates in environments ranging from 0°C to 50°C. It avoids PoE-related conflicts and is ideal for compact, power-sensitive deployments. |

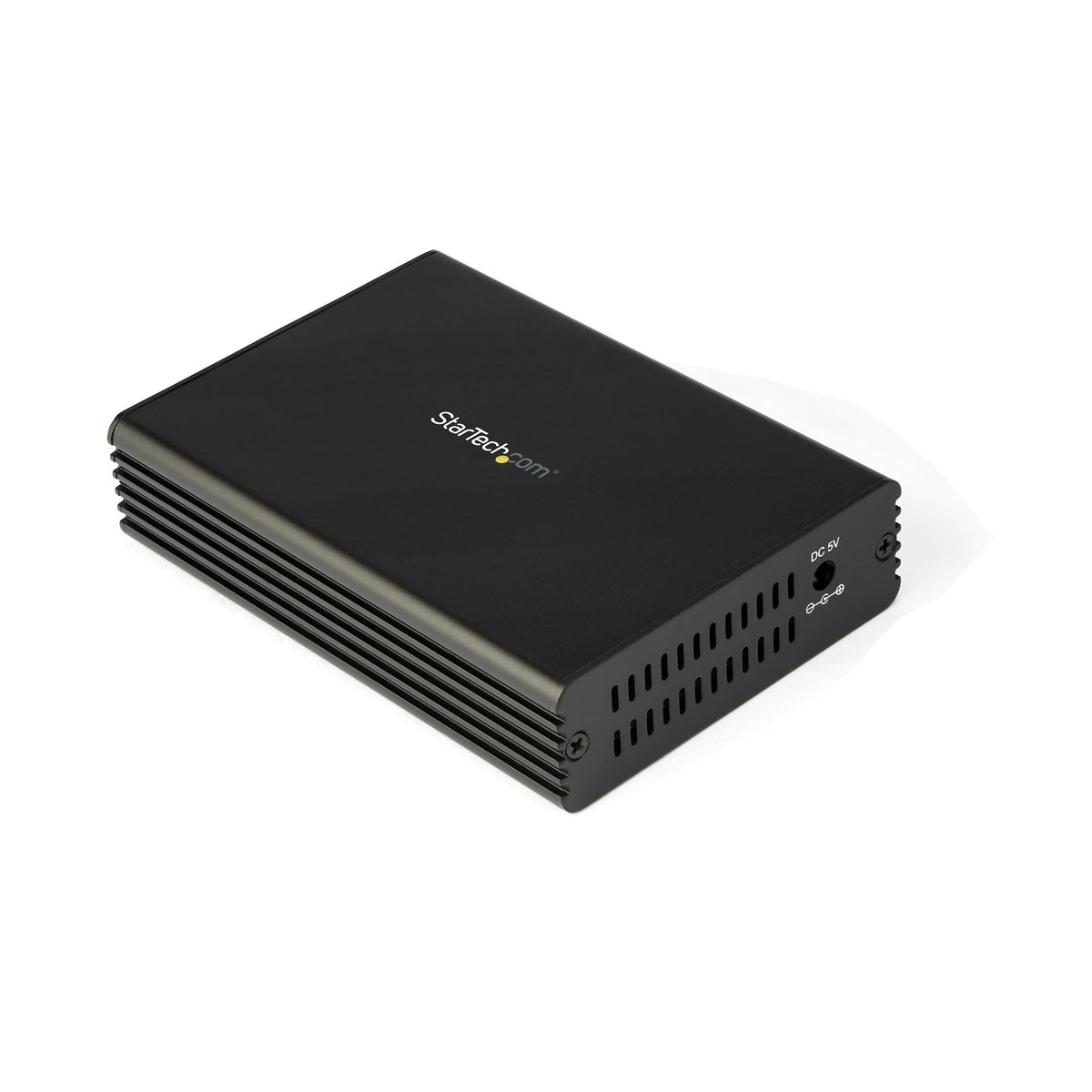

Fiber to Copper Media Converter | 10GBASE/1000BASE | 10Gbps/1Gbps Unmanaged | Single Mode & Multimode This Ethernet fiber media converter offers an easy, cost-effective way to extend your network over fiber, using the SFP+ of your choice. It converts a copper RJ45 Ethernet connection to 10Gbps or 1Gbps fiber, to extend your network over longer distances or connect workstations to switches. Cost-Effective Extensions and Flexible Performance The RJ45 to fiber media converter provides a cost-efficient way to connect an Ethernet network to remote devices over a fiber backbone. It features an open SFP+ slot that supports the MSA-compliant 10 Gigabit SFP+ or 1 Gigabit SFP that best suits your fiber connection setup (single mode/multimode) and distance requirements. A Versatile Way to Connect Different Networks The 10Gb/1Gb fiber media converter supports auto-negotiation while providing versatile connectivity to existing networks and devices, maximizing the usage and performance of legacy equipment. Network Compatibility: • 10GBASE-ER • 10GBASE-LR • 10GBASE-LW • 10GBASE-EW • 10GBASE-R • 10GBASE-SR • 10GBASE-SW • 10GBASE-T • 1000BASE-T • 1000BASE-SX • 1000BASE-LX Fast and Easy Installation The unmanaged fiber media converter has a standalone compact design with simple plug-and-play setup to ensure fast and easy installation. StarTech.com Fiber Media Converters Overcome the distance limitations of traditional network cables with StarTech.com fiber media converters. Our converters connect different types of network cabling and help you extend networks between buildings and over longer distances. Whether you need to extend a network connection 550 m or 40 km, we can help you. |
