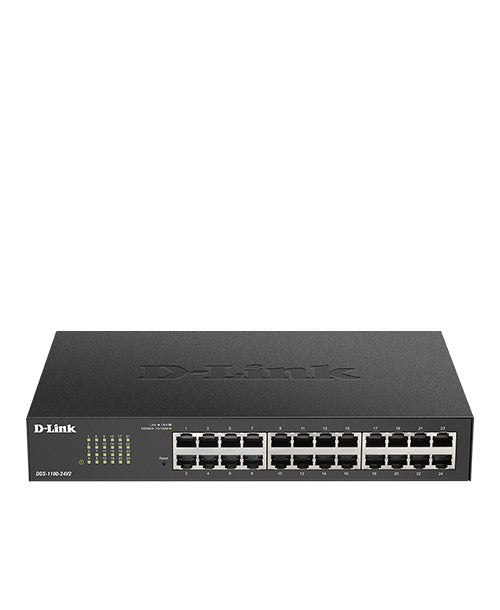

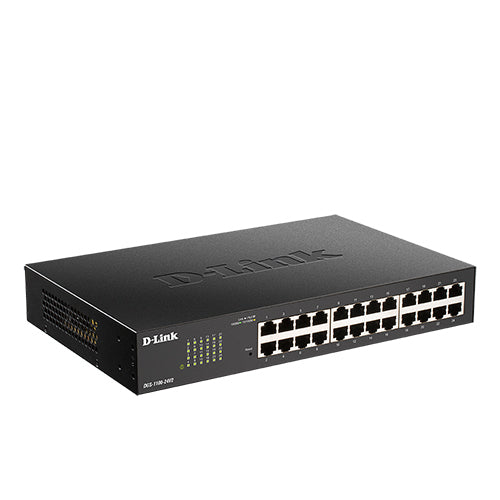

D-Link 24-Port Gigabit Smart Managed Switch
Regular price
$290.03
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
Powerful Switching for your Business
The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.
Easy to Use & Easy to Install
D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.
VLANs: Stronger Security & Better Traffic Management
Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.
For Voice
If VoIP calls make up a large slice of your network usage, separating them onto their own VLAN can ensure they get the bandwidth they need for smooth conversations without lag or jitters.
For Surveillance
If you have surveillance cameras and devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. At the same time, it can help prevent a variety of malicious attacks by restricting access to different network areas.
Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.
The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.
Easy to Use & Easy to Install
D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.
VLANs: Stronger Security & Better Traffic Management
Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.
For Voice
If VoIP calls make up a large slice of your network usage, separating them onto their own VLAN can ensure they get the bandwidth they need for smooth conversations without lag or jitters.
For Surveillance
If you have surveillance cameras and devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. At the same time, it can help prevent a variety of malicious attacks by restricting access to different network areas.
Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Switch type: Managed
- Operating temperature (T-T): -5 - 50 °C
- Operating relative humidity (H-H): 0 - 95%
- Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE): No
- Switching capacity: 48 Gbit/s
- MAC address table: 8000 entries
- Storage relative humidity (H-H): 0 - 95%
- LED indicators: Yes
- Rack mounting: Yes
- Flow control support: Yes
- Jumbo frames support: Yes
- Switch layer: L2
- Forwarding rate: 35.71 Mpps
- Jumbo frames: 9216
- AC input voltage: 100 - 240 V
- IGMP snooping: Yes
Certificates
- Certification
- RoHS 6\ncUL, CE LVD, CB, BSMI, CCC
Data transmission
- Number of queues
- 4
- Packet buffer memory
- 4.1MB
- Store-and-forward
- Yes
Design
- Electromagnetic compatibility
- FCC A, CE A, VCCI A, C-Tick, BSMI, CCC
- Form factor
- 1U
Logistics data
- Harmonized System (HS) code
- 85176990
Management features
- System event log
- Yes
- Web-based management
- Yes
Multicast features
- Multicast support
- Yes
Network
- Auto MDI/MDI-X
- Yes
- Broadcast storm control
- Yes
- Head-of-line (HOL) blocking
- Yes
- Link aggregation
- Yes
- Number of VLANs
- 4094
- Port mirroring
- Yes
- Rate limiting
- Yes
- Spanning tree protocol
- Yes
- Virtual LAN features
- Port-based VLAN, Voice VLAN
- VLAN support
- Yes
Operational conditions
- Heat dissipation
- 54.3 BTU/h
- Operating altitude
- 0 - 2000 m
- Storage temperature (T-T)
- -40 - 70 °C
Packaging content
- Rack mount kit
- Yes
Performance
- Built-in processor
- Yes
- Flash memory
- 16MB
- Mean time between failures (MTBF)
- 424762 h
- Noise level
- 0 dB
- Processor frequency
- 125 MHz
Power
- AC input frequency
- 50 - 60 Hz
- Power consumption (max)
- 15.9 W
- Power consumption (typical)
- 4.5 W
Security
- DHCP features
- DHCP client
- IGMP entries
- 64
- Queue scheduling algorithms
- SPQ, Weighted Round Robin (WRR)
- Security algorithms
- SNMP, SSL/TLS
Weight & dimensions
- Depth
- 18 cm
- Height
- 4.4 cm
- Weight
- 1.47 kg
- Width
- 28 cm
Materials
