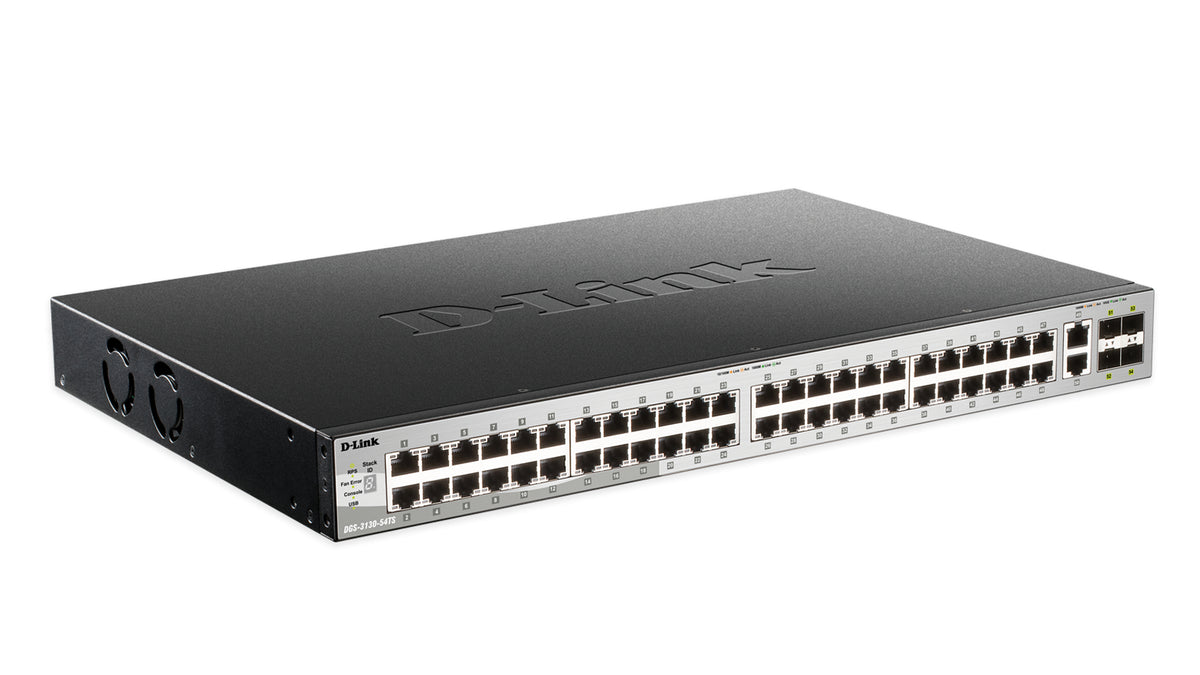

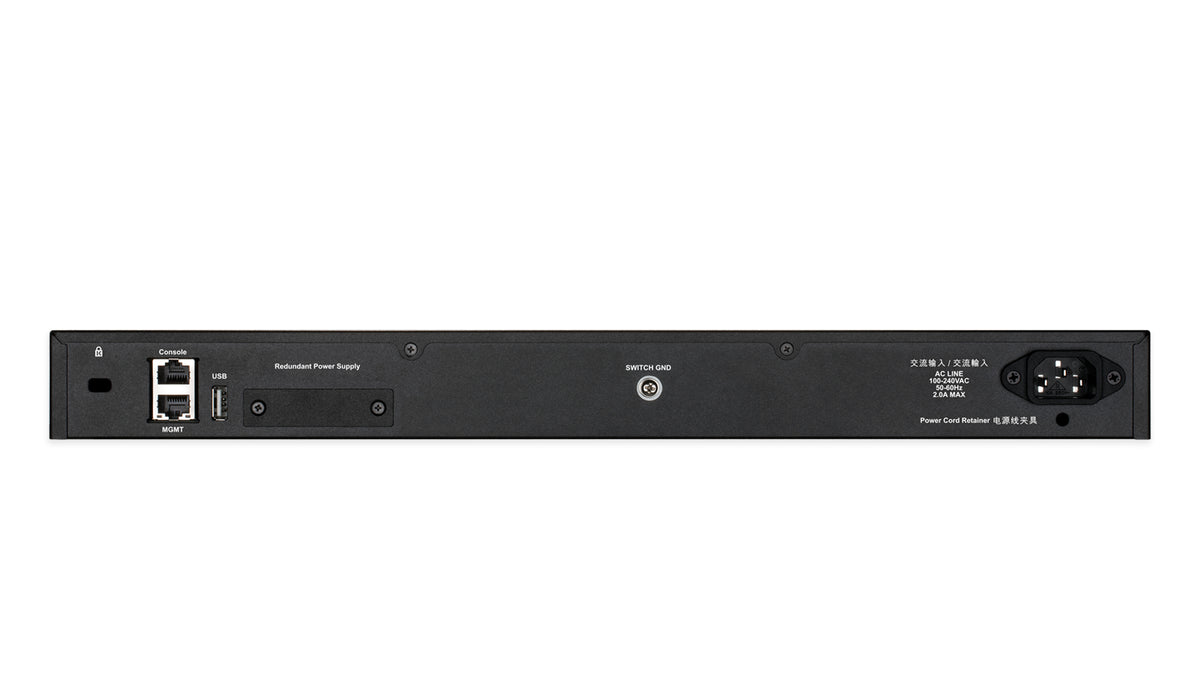

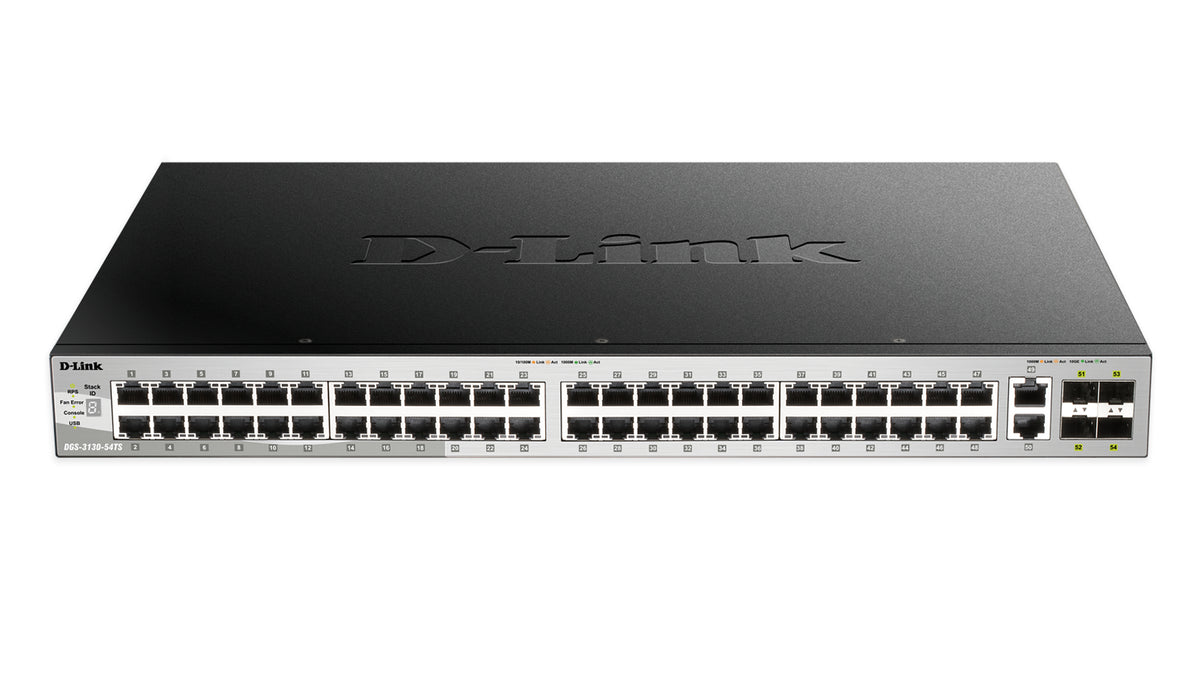

D-Link DGS-3130-54TS Managed L3 Gigabit Ethernet (10/100/1000) Black, Grey
Regular price
$2,903.13
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
The DGS-3130 Series is a range of Lite Layer 3 Stackable Managed Switches designed to help connect end-users in a secure enterprise or metro Ethernet access network. These switches support multicast and enhanced security features, making them an ideal Gigabit access layer solution. The DGS-3130-30TS/54TS provide 24 or 48 10/100/1000 Mbps Gigabit Ethernet ports. The DGS-3130-30PS/54PS provide 24 or 48 10/100/1000 Mbps Power over Ethernet (PoE) Gigabit Ethernet ports. The DGS-3130-30S/54S provide 24 or 48 SFP Gigabit Ethernet ports. Each 10/100/1000 Mbps port on the DGS-3130-30PS/54PS supports the IEEE 802.3af and IEEE 802.3at PoE standards. The default power budget for these models is 370 watts and can be expanded to 740 watts with the DPS-700 redundant power supply. The switches are also equipped with a USB 2.0 port, allowing the user to boot images and upload configuration files directly, as well as conveniently save syslog files to an USB 2.0 storage device.
Enhanced Network Reliability
The DGS-3130 Series targets enterprises and metro Ethernet applications, and customers who require a high level of network security and maximum uptime. All the models in the DGS-3130 Series support an external redundant power supply to ensure continued operation. In addition, these switches incorporate essential reliability features to enhance network resilience, including 802.1D Spanning Tree (STP), 802.1w Rapid Spanning Tree (RSTP), and 802.1s Multiple Spanning Tree (MSTP), Loopback Detection (LBD), and Broadcast Storm Control. ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) minimizes the recovery time to 50 ms. For load sharing and redundancy backup in a switch cascading/server attachment configuration, the DGS-3130 Series provides dynamic 802.3ad Link Aggregation Port Trunking.
Comprehensive Security Features
The DGS-3130 Series provides users with security features such as Multi-layer and Packet Content Access Control Lists (ACL), Storm Control, and IP-MAC-Port Binding (IMPB) with DHCP Snooping. The IP-MAC-Port Binding feature allows administrators to bind a source IP address with an associated MAC and define the port number to enhance user access control. With the DHCP Snooping feature, the switch automatically learns IP/MAC pairs by snooping DHCP packets and saving them to the IMPB white list.
Easy Access Control Policies
The DGS-3130 Series supports authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC) for strict access control and easy deployment. After authentication, individual policies such as VLAN membership, QoS policies, and ACL rules can be assigned to each host. In addition, the switch also supports Microsoft® NAP (Network Access Protection). NAP is a policy enforcement technology that helps customers protect network assets from compromised computers by enforcing compliance with network health policies.
Power over Ethernet Support
The DGS-3130-30PS and DGS-3130-54PS support industry standard IEEE 802.3at power over Ethernet across all Gigabit copper ports. They feature a total power budget of 370 W, capable of supplying up to 30 W of power per port to connected PoE-enabled devices. The PoE power budget can be increased to 740 W when the DPS-700 redundant power supply is used in conjunction. Power over Ethernet helps simplify deployment of surveillance devices and access point infrastructures by reducing cable clutter, eliminating the need for dedicated power supplies, and allowing PoE devices to be installed in remote locations.
Versatile Traffic Management
The DGS-3130 Series implements a rich set of multi-layer QoS/CoS features to help ensure that critical network services such as VoIP, video conferences, IPTV, and IP surveillance are always given high priority. Traffic Shaping features guaranteed bandwidth for these services when the network is busy. L2 Multicast support enables the DGS-3130 Series to handle growing IPTV applications. Host-based IGMP/MLD Snooping allows multiple multicast subscribers per physical interface while ISM VLAN allows the switches to send multicast streams in a multicast VLAN to save bandwidth and to provide better security to the backbone network. The ISM VLAN profiles allow administrators to bind or replace the pre-defined multicast registration information to subscriber ports quickly and easily.
Lifetime Warranty and NBD Replacement
D-Link offers a Lifetime Warranty and Next Business Day (NBD) hardware replacement on the DGS-3130 Series Lite Layer 3 Stackable Managed Switches to further its commitment to product quality and long-term customer confidence.
Enhanced Network Reliability
The DGS-3130 Series targets enterprises and metro Ethernet applications, and customers who require a high level of network security and maximum uptime. All the models in the DGS-3130 Series support an external redundant power supply to ensure continued operation. In addition, these switches incorporate essential reliability features to enhance network resilience, including 802.1D Spanning Tree (STP), 802.1w Rapid Spanning Tree (RSTP), and 802.1s Multiple Spanning Tree (MSTP), Loopback Detection (LBD), and Broadcast Storm Control. ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) minimizes the recovery time to 50 ms. For load sharing and redundancy backup in a switch cascading/server attachment configuration, the DGS-3130 Series provides dynamic 802.3ad Link Aggregation Port Trunking.
Comprehensive Security Features
The DGS-3130 Series provides users with security features such as Multi-layer and Packet Content Access Control Lists (ACL), Storm Control, and IP-MAC-Port Binding (IMPB) with DHCP Snooping. The IP-MAC-Port Binding feature allows administrators to bind a source IP address with an associated MAC and define the port number to enhance user access control. With the DHCP Snooping feature, the switch automatically learns IP/MAC pairs by snooping DHCP packets and saving them to the IMPB white list.
Easy Access Control Policies
The DGS-3130 Series supports authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC) for strict access control and easy deployment. After authentication, individual policies such as VLAN membership, QoS policies, and ACL rules can be assigned to each host. In addition, the switch also supports Microsoft® NAP (Network Access Protection). NAP is a policy enforcement technology that helps customers protect network assets from compromised computers by enforcing compliance with network health policies.
Power over Ethernet Support
The DGS-3130-30PS and DGS-3130-54PS support industry standard IEEE 802.3at power over Ethernet across all Gigabit copper ports. They feature a total power budget of 370 W, capable of supplying up to 30 W of power per port to connected PoE-enabled devices. The PoE power budget can be increased to 740 W when the DPS-700 redundant power supply is used in conjunction. Power over Ethernet helps simplify deployment of surveillance devices and access point infrastructures by reducing cable clutter, eliminating the need for dedicated power supplies, and allowing PoE devices to be installed in remote locations.
Versatile Traffic Management
The DGS-3130 Series implements a rich set of multi-layer QoS/CoS features to help ensure that critical network services such as VoIP, video conferences, IPTV, and IP surveillance are always given high priority. Traffic Shaping features guaranteed bandwidth for these services when the network is busy. L2 Multicast support enables the DGS-3130 Series to handle growing IPTV applications. Host-based IGMP/MLD Snooping allows multiple multicast subscribers per physical interface while ISM VLAN allows the switches to send multicast streams in a multicast VLAN to save bandwidth and to provide better security to the backbone network. The ISM VLAN profiles allow administrators to bind or replace the pre-defined multicast registration information to subscriber ports quickly and easily.
Lifetime Warranty and NBD Replacement
D-Link offers a Lifetime Warranty and Next Business Day (NBD) hardware replacement on the DGS-3130 Series Lite Layer 3 Stackable Managed Switches to further its commitment to product quality and long-term customer confidence.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black, Grey
- Switch type: Managed
- Operating temperature (T-T): 0 - 50 °C
- Operating relative humidity (H-H): 10 - 90%
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x
- Basic switching RJ-45 Ethernet ports quantity: 48
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE): No
- Switching capacity: 216 Gbit/s
- MAC address table: 16384 entries
- 10G support: Yes
- Storage relative humidity (H-H): 5 - 90%
- LED indicators: Yes
- Quality of Service (QoS) support: Yes
- Rack mounting: Yes
- Flow control support: Yes
- Jumbo frames support: Yes
- Switch layer: L3
- Forwarding rate: 161 Mpps
- AC input voltage: 100 - 240 V
Certificates
- Certification
- FCC A, CE A, VCCI A, IC, RCM, BSMI, CCC
Data transmission
- Number of queues
- 8
- Packet buffer memory
- 4MB
Design
- Number of fans
- 2 fan(s)
- Safety
- CB, cUL, BSMI, CCC
- Stackable
- Yes
Logistics data
- Harmonized System (HS) code
- 85176990
Management features
- ARP inspection
- Yes
- MIB support
- RFC 1213; RFC 4188; RFC 1157, 2571-2576; RFC 1907; RFC 1757, 2819; RFC 2021; RFC 1398, 1643, 1650, 2358, 2665; RFC 2674 802.1p 2233, 2863 IF MIB; RFC 2618; RFC 2620; RFC 2925; RFC 2674, 4363; RFC 1065, 1066, 1155, 1156, 2578; RFC 1215; RFC 1212; RFC 1215; RFC 1157, 2571-2576; RFC 4022; RFC 4113; RFC 4293; RFC 2737
- System event log
- Yes
- Web-based management
- Yes
Multicast features
- Multicast features
- Controllable multicast
- Multicast support
- Yes
Network
- Broadcast storm control
- Yes
- Copper ethernet cabling technology
- 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
- Head-of-line (HOL) blocking
- Yes
- Link aggregation
- Yes
- Number of VLANs
- 4000
- Port mirroring
- Yes
- Spanning tree protocol
- Yes
- Virtual LAN features
- Private VLAN, Voice VLAN, Tagged VLAN, MAC address-based VLAN, Port-based VLAN
- VLAN support
- Yes
Operational conditions
- Heat dissipation
- 172.72 BTU/h
- Storage temperature (T-T)
- -40 - 70 °C
Other features
- I/O ports
- 2 x 10GBASE-T
Packaging data
- Package depth
- 50.6 cm
- Package height
- 7 cm
- Package weight
- 4.83 kg
- Package width
- 42.7 cm
Performance
- Mean time between failures (MTBF)
- 478258 h
- Noise level
- 51.9 dB
- Physical stacking (units)
- 9
- sFlow
- Yes
- Telnet
- Yes
- Virtual stacking (units)
- 32
Ports & interfaces
- Fiber optic connector
- SFP+
- Power connector
- AC-in jack
- SFP+ module slots quantity
- 4
- USB 2.0 ports quantity
- 1
Power
- AC input frequency
- 50 - 60 Hz
- Power consumption (max)
- 50.62 W
- Redundant power supply (RPS) support
- Yes
Protocols
- GARP VLAN Registration Protocol (GVRP)
- Yes
- Routing protocols
- RIP
- Virtual Router Redundancy Protocol (VRRP)
- Yes
Security
- Access Control List (ACL)
- Yes
- Access Control List (ACL) egress
- 512
- Access Control List (ACL) ingress
- 2048
- Authentication
- Guest VLAN, MAC-based authentication, Port-based authentication
- BPDU filtering/protection
- Yes
- DHCP features
- DHCP server, DHCP snooping, DHCP relay, DHCP client
- DoS attack prevention
- Yes
- IGMP snooping
- Yes
- Loop protection
- Yes
- Password protection
- Yes
- Queue scheduling algorithms
- SP, WRR+SP, Weighted Round Robin (WRR)
- Root protection
- Yes
- Security algorithms
- SNMP, SNMPv3, SSH-2, SSL/TLS
- SSH/SSL support
- Yes
Technical details
- Master (outer) cases per pallet (air)
- 48 pc(s)
- Master (outer) cases per pallet (sea)
- 48 pc(s)
- Pallet gross length
- 110 cm
- Pallet gross weight (air)
- 522.6 kg
- Pallet gross weight (sea)
- 522.6 kg
- Pallet gross width
- 120 cm
- Pallet height (air)
- 197.5 cm
- Pallet height (sea)
- 197.5 cm
- Products per pallet (air)
- 96 pc(s)
- Products per pallet (sea)
- 96 pc(s)
- Products per shipping (inner) case
- 2 pc(s)
- Shipping (inner) case gross weight
- 10.5 kg
- Shipping (inner) case height
- 46 cm
- Shipping (inner) case length
- 52.4 cm
- Shipping (inner) case net weight
- 9.66 kg
- Shipping (inner) case width
- 19.8 cm
Weight & dimensions
- Depth
- 29 cm
- Height
- 4.4 cm
- Weight
- 3.72 kg
- Width
- 44 cm
