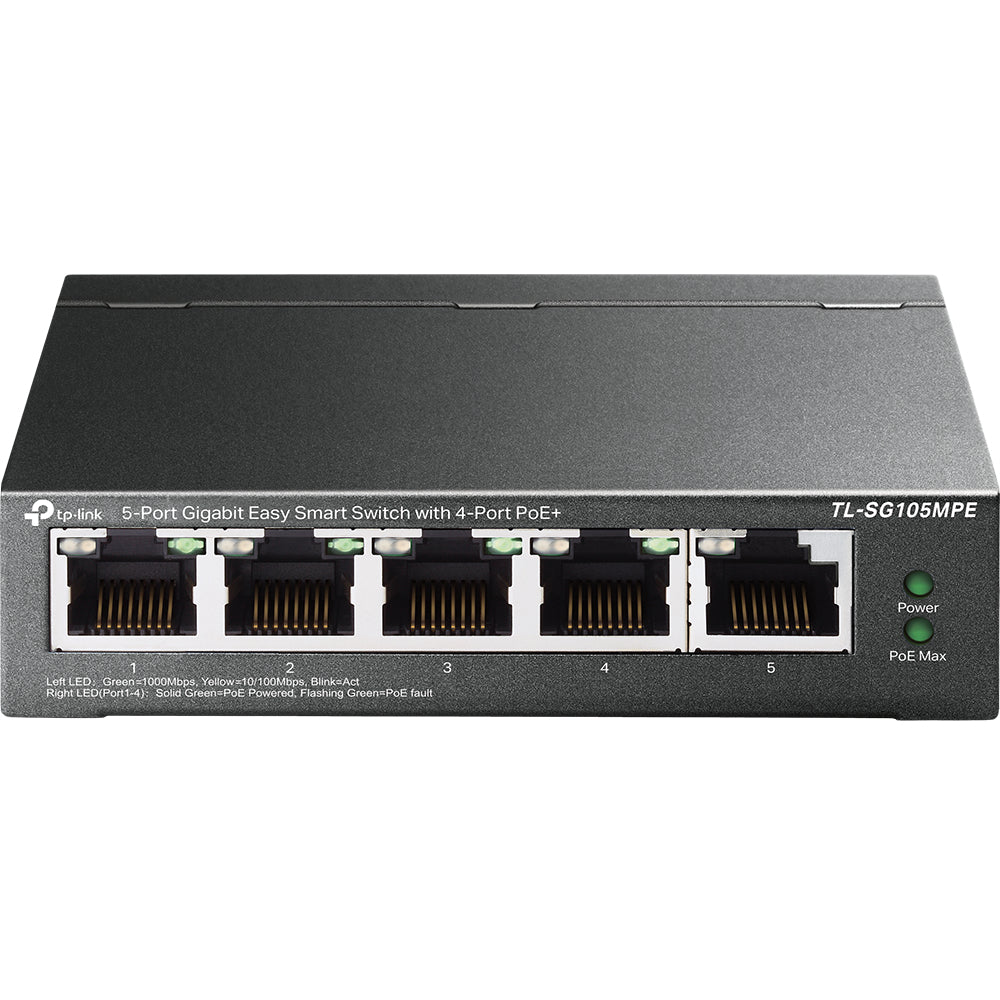

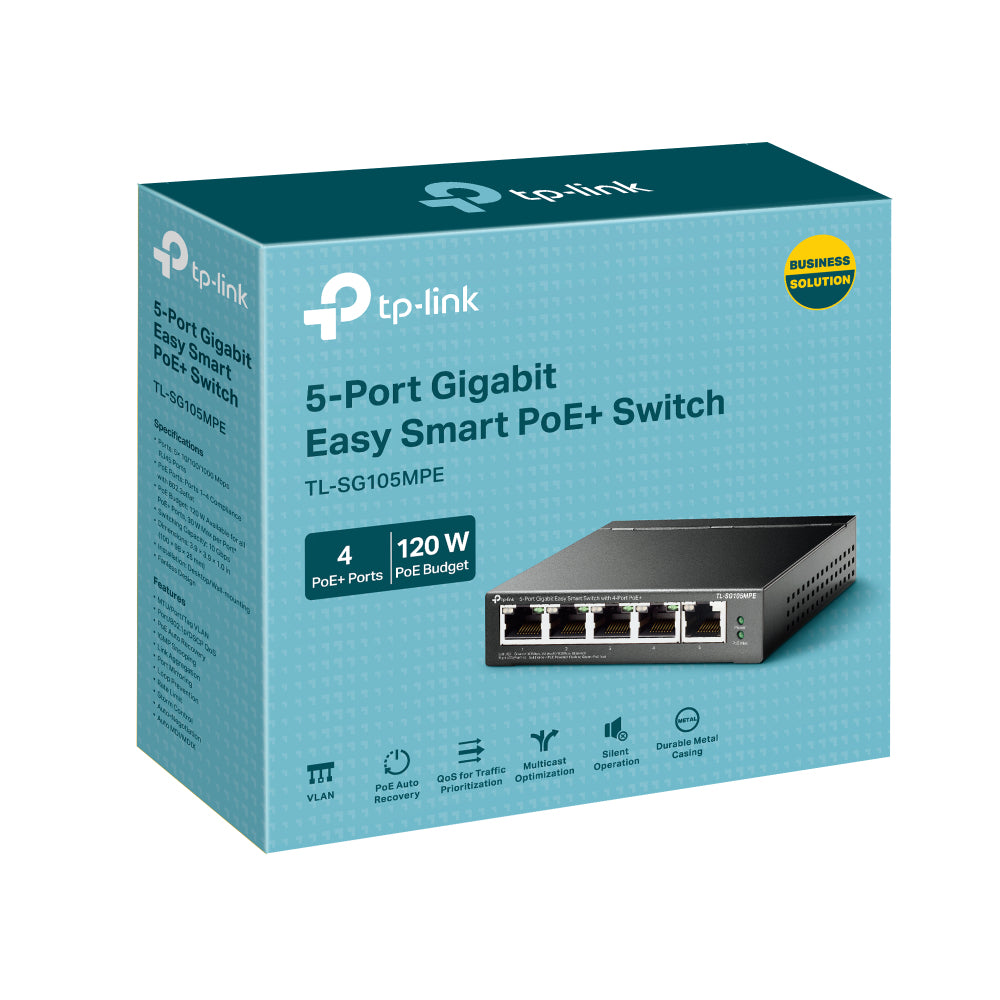

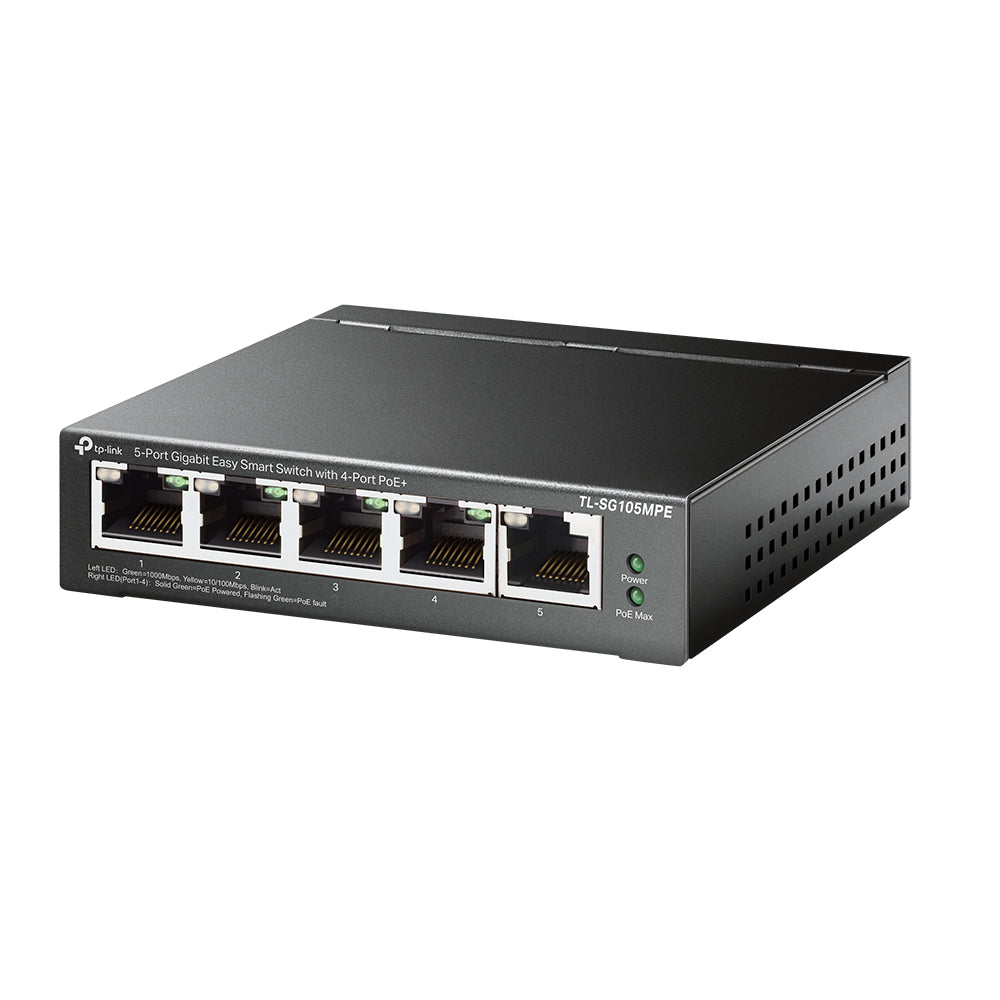

TP-Link 5-Port Gigabit Easy Smart Switch with 4-Port PoE+
Regular price
$133.10
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Hurry up, only 3 items left in stock.
TP-Link 5-Port Gigabit Easy Smart Switch with 4-Port PoE+. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE.... DC input voltage: 53.5 V. Power over Ethernet (PoE)
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 10 - 90%
- Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE): Yes
- Switching capacity: 10 Gbit/s
- MAC address table: 2000 entries
- 10G support: No
- Storage relative humidity (H-H): 5 - 95%
- Rack mounting: No
- Jumbo frames support: Yes
- Switch layer: L2
- Forwarding rate: 7.44 Mpps
- Jumbo frames: 16
- AC input voltage: 100 - 240 V
- IGMP snooping: Yes
- Power supply included: Yes
- AC input frequency: 50 - 60 Hz
Data transmission
- Static route
- Yes
Management features
- Web-based management
- Yes
Network
- Broadcast storm control
- Yes
- Port mirroring
- Yes
- Rate limiting
- Yes
Operational conditions
- Storage temperature (T-T)
- -40 - 70 °C
Packaging content
- Cables included
- LAN (RJ-45)
Packaging data
- Package depth
- 52.8 cm
- Package height
- 8 cm
- Package weight
- 2.76 kg
- Package width
- 25 cm
Power
- DC input voltage
- 53.5 V
- Power consumption (max)
- 137.01 W
- Power source
- DC/PoE
Power over Ethernet (PoE)
- Total Power over Ethernet (PoE) budget
- 120 W
Security
- Loop protection
- Yes
Weight & dimensions
- Depth
- 9.8 cm
- Height
- 2.5 cm
- Width
- 9.98 cm
Cables included: LAN (RJ-45)
Power supply included
Power supply included
