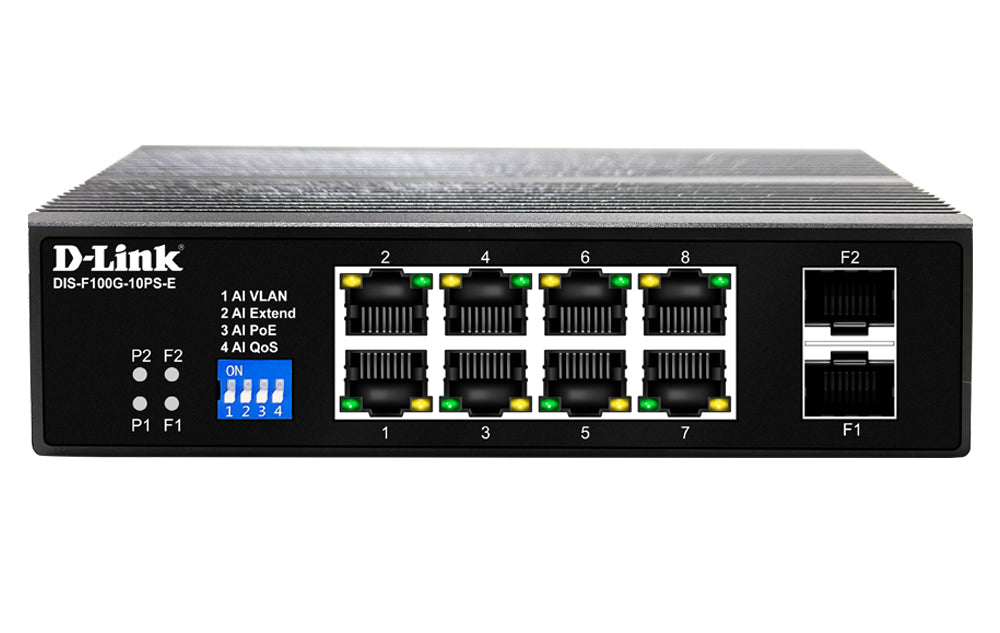

D-Link DIS-F100G-10PS-E network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
Regular price
$603.89
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
The DIS-F100G Series Gigabit Industrial Unmanaged Switches are equipped with a variety of port combinations including 10/100/1000BASE-T PoE+ ports and SFP ports. These switches feature a robust design making them ideal for deployment in industrial and outdoor cabinet surveillance settings, capable of withstanding the harshest environments. In addition, the DIS-F100G Series are Plug-and-Play, allowing for effortless and swift deployment.
Durable, Reliable, and Efficient
The DIS-F100G Series switches are housed in a highly resistant IP40-rated metal casing to protect the switches from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects the DIS-F100G Series from unwanted effects when operating in environments with strong electromagnetic interference. Meanwhile, the fanless design extends the life of the DIS-F100G Series while also being able to operate in a wide temperature range from -40 °C up to 75 °C. For increased flexibility, the DIS-F100G Series can also be mounted on a DIN rail. In addition, the DIS-F100G Series supports dual power input which allows for a redundant power supply configuration to make sure the switches continue to operate in the event of a primary power supply failure.
Power over Ethernet Support
The PoE-ready DIS-F100G-10PS-E features a total PoE budget of 240 W, capable of supplying up to 30 W of power per port to connected PoE-enabled devices leveraging existing conventional Ethernet cabling. Additionally the PoE ports in each switch offer Long Reach PoE technology, allowing the use of longer network cable runs which are normally limited to 100m. The Long Reach PoE technology supports cables up to 250m long. This effectively cuts down deployment times, reduces cable clutter, and eliminates the need for dedicated power supplies to allow PoE-devices to be installed in remote locations.
Durable, Reliable, and Efficient
The DIS-F100G Series switches are housed in a highly resistant IP40-rated metal casing to protect the switches from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects the DIS-F100G Series from unwanted effects when operating in environments with strong electromagnetic interference. Meanwhile, the fanless design extends the life of the DIS-F100G Series while also being able to operate in a wide temperature range from -40 °C up to 75 °C. For increased flexibility, the DIS-F100G Series can also be mounted on a DIN rail. In addition, the DIS-F100G Series supports dual power input which allows for a redundant power supply configuration to make sure the switches continue to operate in the event of a primary power supply failure.
Power over Ethernet Support
The PoE-ready DIS-F100G-10PS-E features a total PoE budget of 240 W, capable of supplying up to 30 W of power per port to connected PoE-enabled devices leveraging existing conventional Ethernet cabling. Additionally the PoE ports in each switch offer Long Reach PoE technology, allowing the use of longer network cable runs which are normally limited to 100m. The Long Reach PoE technology supports cables up to 250m long. This effectively cuts down deployment times, reduces cable clutter, and eliminates the need for dedicated power supplies to allow PoE-devices to be installed in remote locations.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Switch type: Unmanaged
- Operating temperature (T-T): -40 - 75 °C
- Operating relative humidity (H-H): 5 - 95%
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
- Basic switching RJ-45 Ethernet ports quantity: 10
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE): Yes
- Switching capacity: 20 Gbit/s
- MAC address table: 8000 entries
- 10G support: No
- Storage relative humidity (H-H): 0 - 95%
- Forwarding rate: 14.9 Mpps
- Power supply included: No
- Store-and-forward: Yes
- Auto MDI/MDI-X: Yes
- Power source: DC
- Copper ethernet cabling technology: 1000BASE-T
- Total Power over Ethernet (PoE) budget: 240 W
- Console port: RJ-45
- Power over Ethernet plus (PoE+) ports quantity: 8
Certificates
- Compliance certificates
- Federal Communications Commission (FCC), RoHS
Design
- DIN rail mounting
- Yes
Operational conditions
- Heat dissipation
- 26 BTU/h
- Storage temperature (T-T)
- -40 - 85 °C
Ports & interfaces
- SFP module slots quantity
- 2
Power
- DC input voltage
- 48 - 56 V
- Power consumption (max)
- 246 W
Weight & dimensions
- Depth
- 10.5 cm
- Height
- 3.9 cm
- Weight
- 0.75 kg
- Width
- 15.9 cm
