Sold out

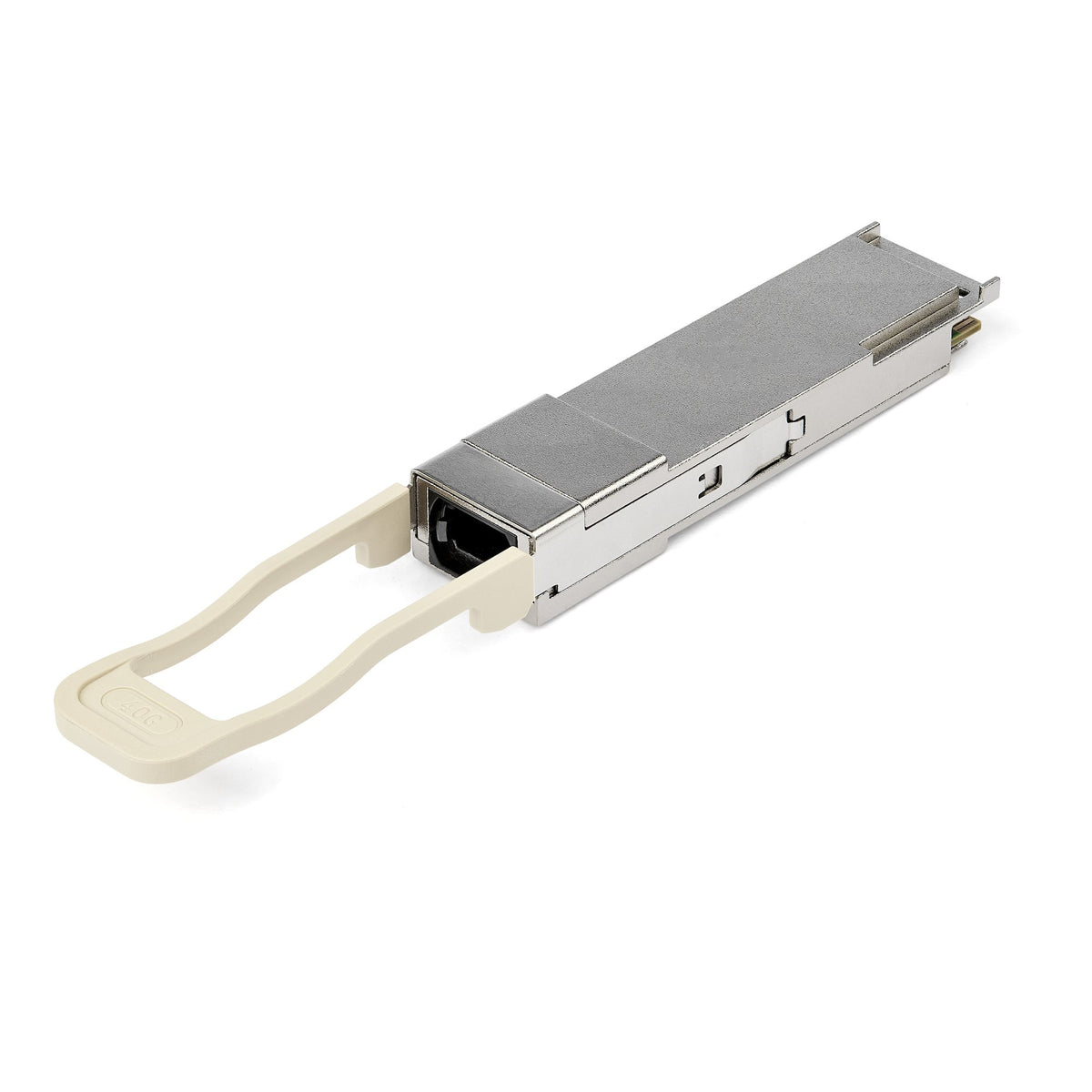

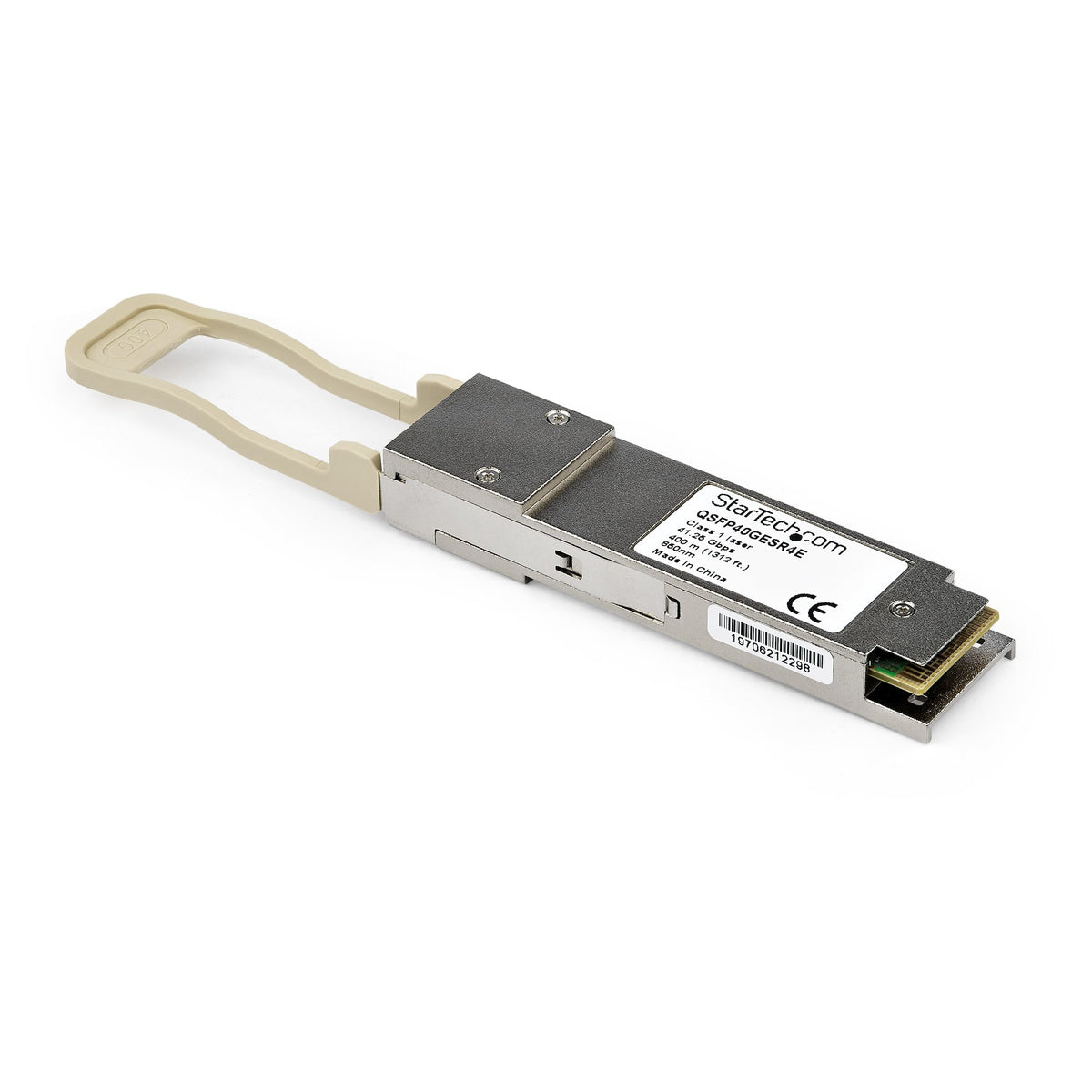

StarTech.com Extreme Networks 10319 Compatible QSFP+ Module - 40GBASE-SR4 - 40GbE Multimode Fiber MMF Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - MPO 150m - 850nm - DDM
Regular price
$94.48
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
40 Gbps | Multi Mode Fiber | MPO | 150 m (492 ft) | Lifetime Warranty
The 10319-ST is an Extreme Networks 10319 compatible fiber transceiver module that has been designed, programmed and tested to work with Extreme Networks brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-SR4 compliant networks, with a maximum distance of up to 150 m (492 ft). Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Multi Mode Fiber

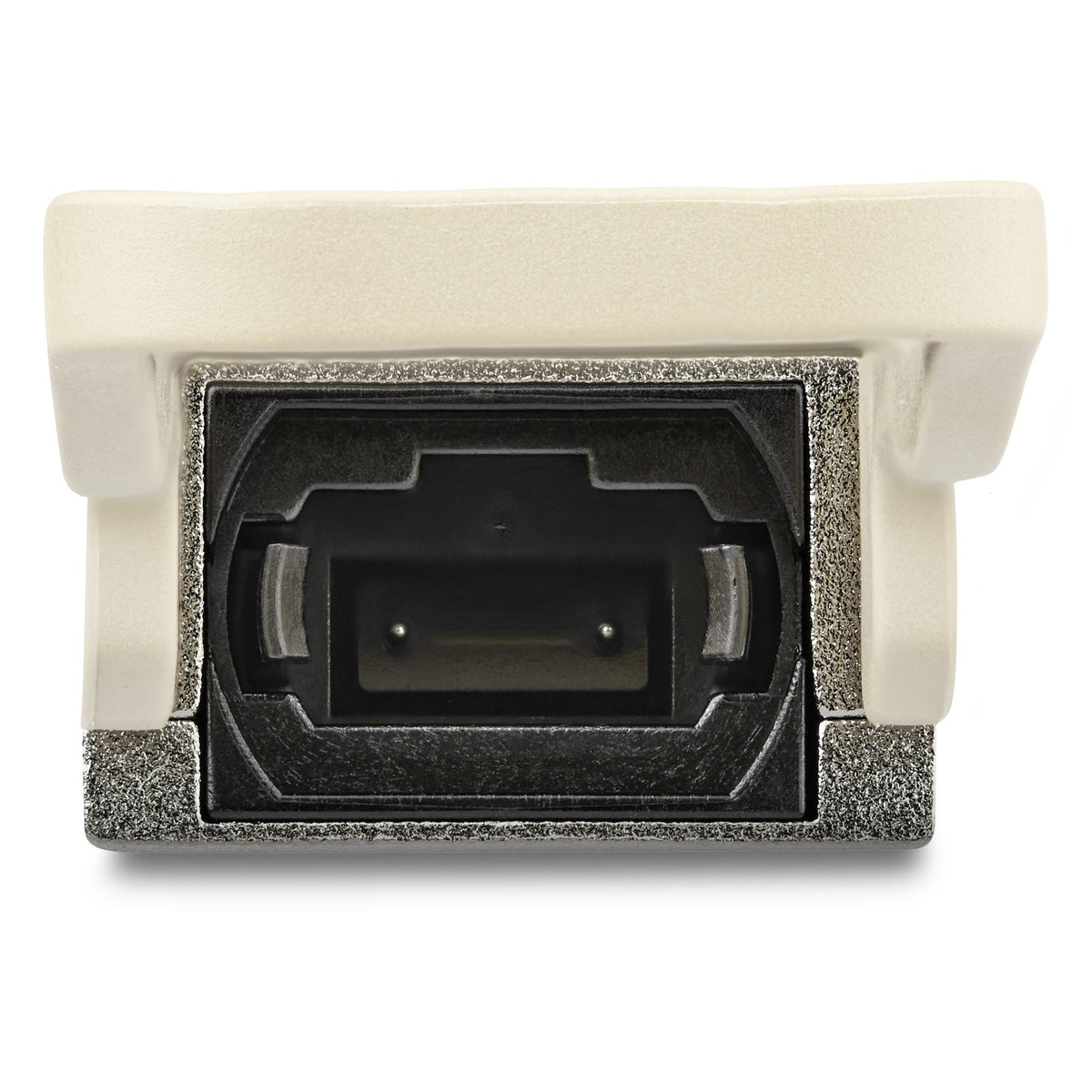

• Connection Type: MPO Connector
• Maximum Transfer Distance: 150 m (492 ft)
• MTBF: 244,610,583 hours
• Power Consumption: Low power consumption
• Digital Diagnostics Monitoring (DDM): Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
The 10319-ST is an Extreme Networks 10319 compatible fiber transceiver module that has been designed, programmed and tested to work with Extreme Networks brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-SR4 compliant networks, with a maximum distance of up to 150 m (492 ft). Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Multi Mode Fiber
• Connection Type: MPO Connector
• Maximum Transfer Distance: 150 m (492 ft)
• MTBF: 244,610,583 hours
• Power Consumption: Low power consumption
• Digital Diagnostics Monitoring (DDM): Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Silver
- Interface type: SFP+
- SFP transceiver type: Fiber optic
- Maximum transfer distance: 150 m
- Harmonized System (HS) code: 85369010
- Digital Diagnostics Monitoring (DDM): Yes
- Master (outer) case height: 3.1 cm
- Master (outer) case length: 11.5 cm
- Master (outer) case width: 9 cm
- Products per master (outer) case: 1 pc(s)
- Fiber optic connector: MPO
- Hot-swap: Yes
- SFP transceiver standard: SR4
- Mean time between failures (MTBF): 244610583 h
- Certification: CE, FCC, UR, REACH
- Multi-mode fiber (MMF) supported: Yes
- Wavelength: 850 nm
- Compliance certificates: RoHS
- Brand compatibility: Extreme Networks
- Compatible products: 10319

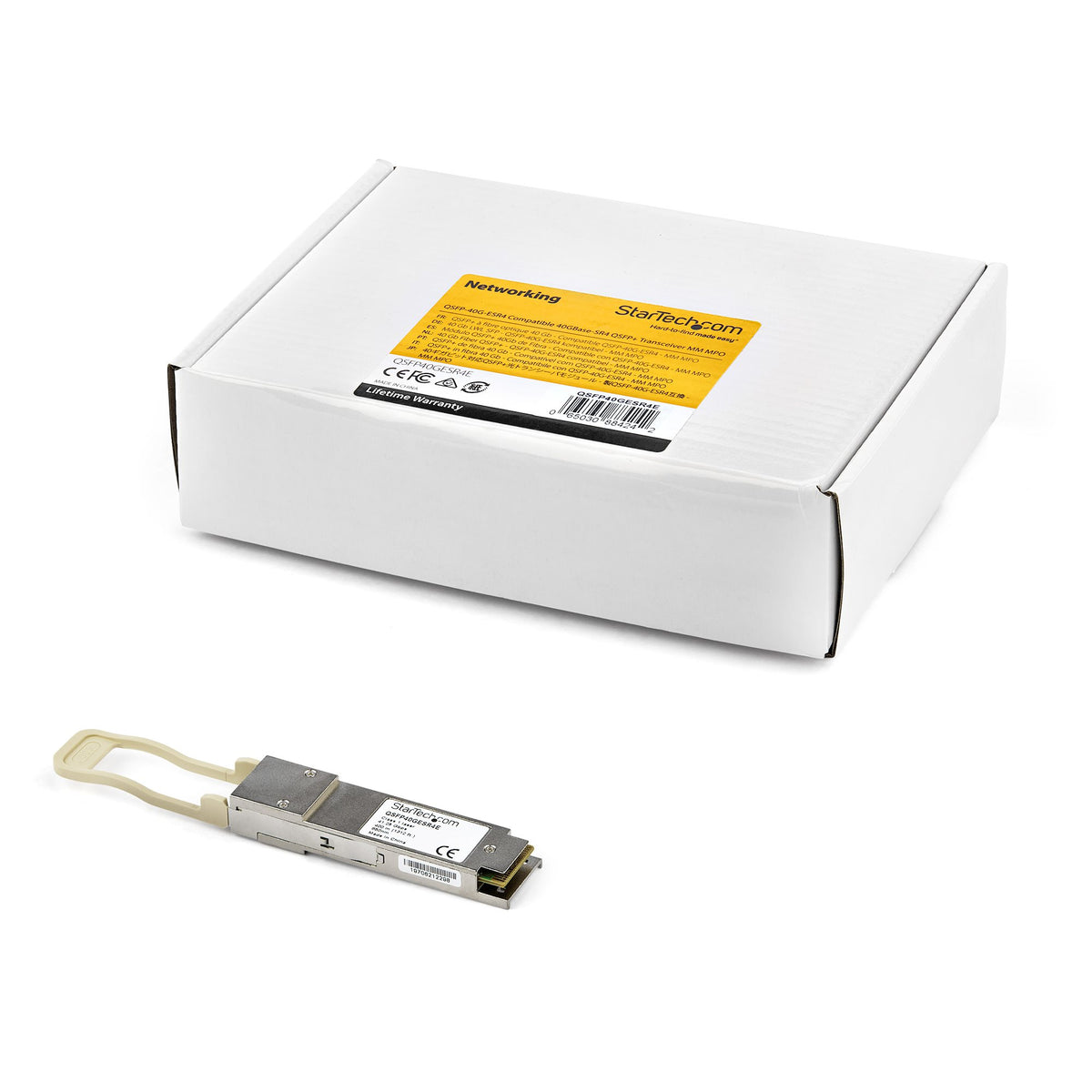

Packaging content
- Quantity per pack
- 1 pc(s)
Packaging data
- Package depth
- 11.5 cm
- Package height
- 3.1 cm
- Package weight
- 0.05 kg
- Package width
- 9 cm
Performance
- Duplex system
- Full
- Fiber ethernet cabling technology
- 40GBASE
- Maximum data transfer rate
- 40000 Mbit/s
Weight & dimensions
- Depth
- 1.86 cm
- Height
- 0.85 cm
- Weight
- 0.04 kg
- Width
- 12.2 cm
Materials
