Sold out
StarTech.com Thunderbolt 3 PCIe Expansion Chassis, External Enclosure W/Dual PCI Express Slots, PCIe Box for Laptops/Desktops/All-In-Ones, 8K/4K Output Via TB3/DP 1.4 Ports, For Video Capture/Fiber/Ethernet Cards - TAA
Regular price
$1,131.40
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
Add dual external PCIe (PCI Express 3.0) slots, Thunderbolt 3 ports, and a DisplayPort connection to a Thunderbolt 3 equipped system.
Add two PCI-Express 3.0 x16 capable cards and increase the potential of a Thunderbolt 3 or 4 capable laptop, desktop, or all-in-one system. This Thunderbolt 3 PCIe Expansion Chassis lets you take advantage of the vast range of PCIe expansion cards with computers that lack PCIe slots. The chassis lets you connect an external monitor via the DisplayPort (DP) or Thunderbolt 3 ports, supporting Ultra High Definition (UHD) 4K or 8K resolutions.
Enhanced Computer Capabilities
Connect the expansion box to a Thunderbolt 3 or 4 computer with the included 3.3ft (1m) Thunderbolt-certified cable. The chassis features dual PCIe 3.0 x16 slots with 32Gbps of bandwidth that is shared dynamically between both slots (each slot supports up to 2700MBps/21.6Gbps). Add extra functionality to a host device using video capture cards, high-speed fiber or Ethernet networking, NVMe drives, FireWire, sound cards, or any other PCIe-compatible card.
Flexible Card Support

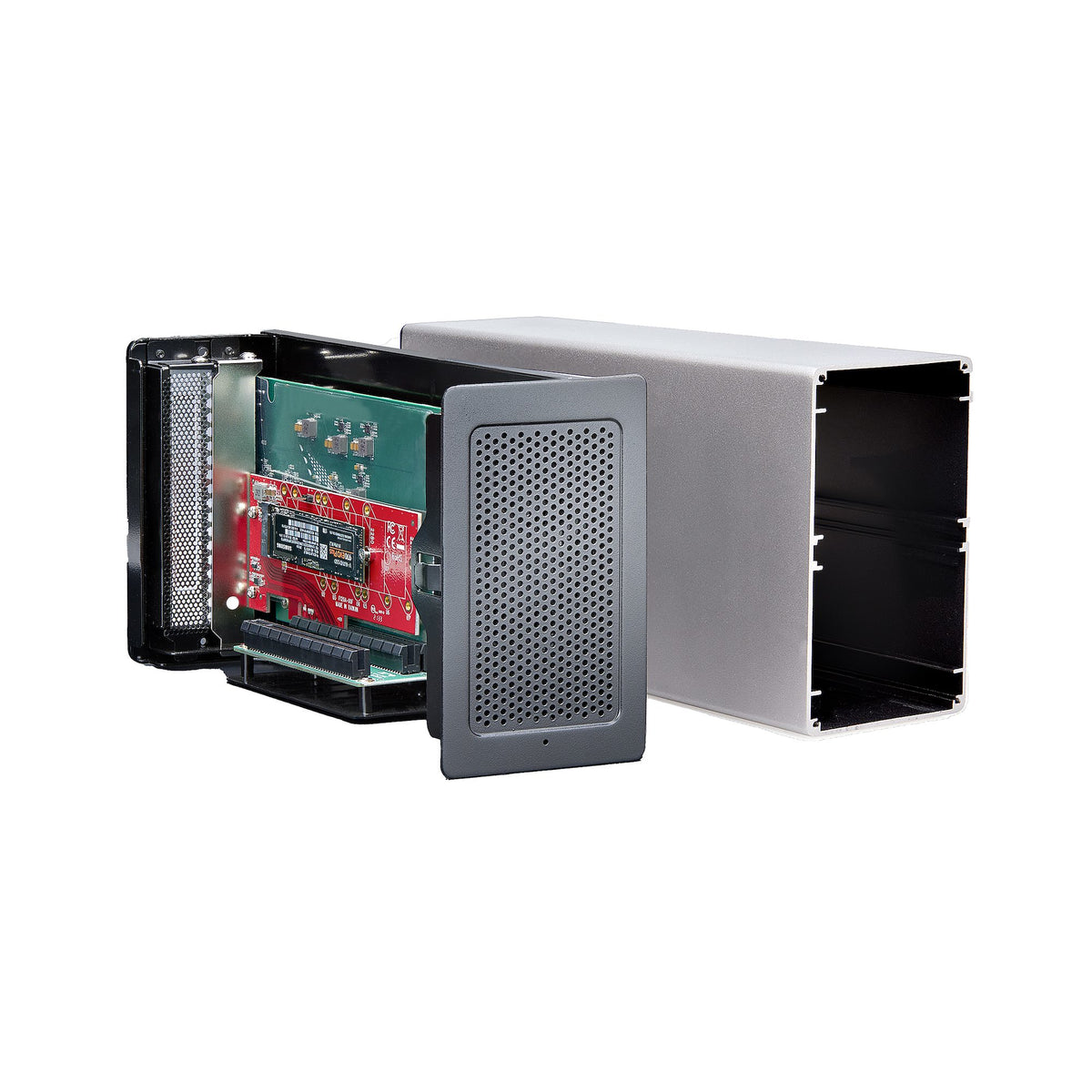

The expansions chassis supports single-slot cards to a maximum length of 8in (20.3cm), allowing current or legacy PCIe cards to be installed. The built-in fan ensures active cooling for your hardware, preventing overheating during heavy usage.
The TAA-Compliant chassis delivers up to 25W per slot, ensuring optimal performance for your connected devices. In addition, the two internal 12V 15W SATA power ports ensure the installed cards have enough power (up to 40W per card) at their disposal.
8K & 4K Monitor Support

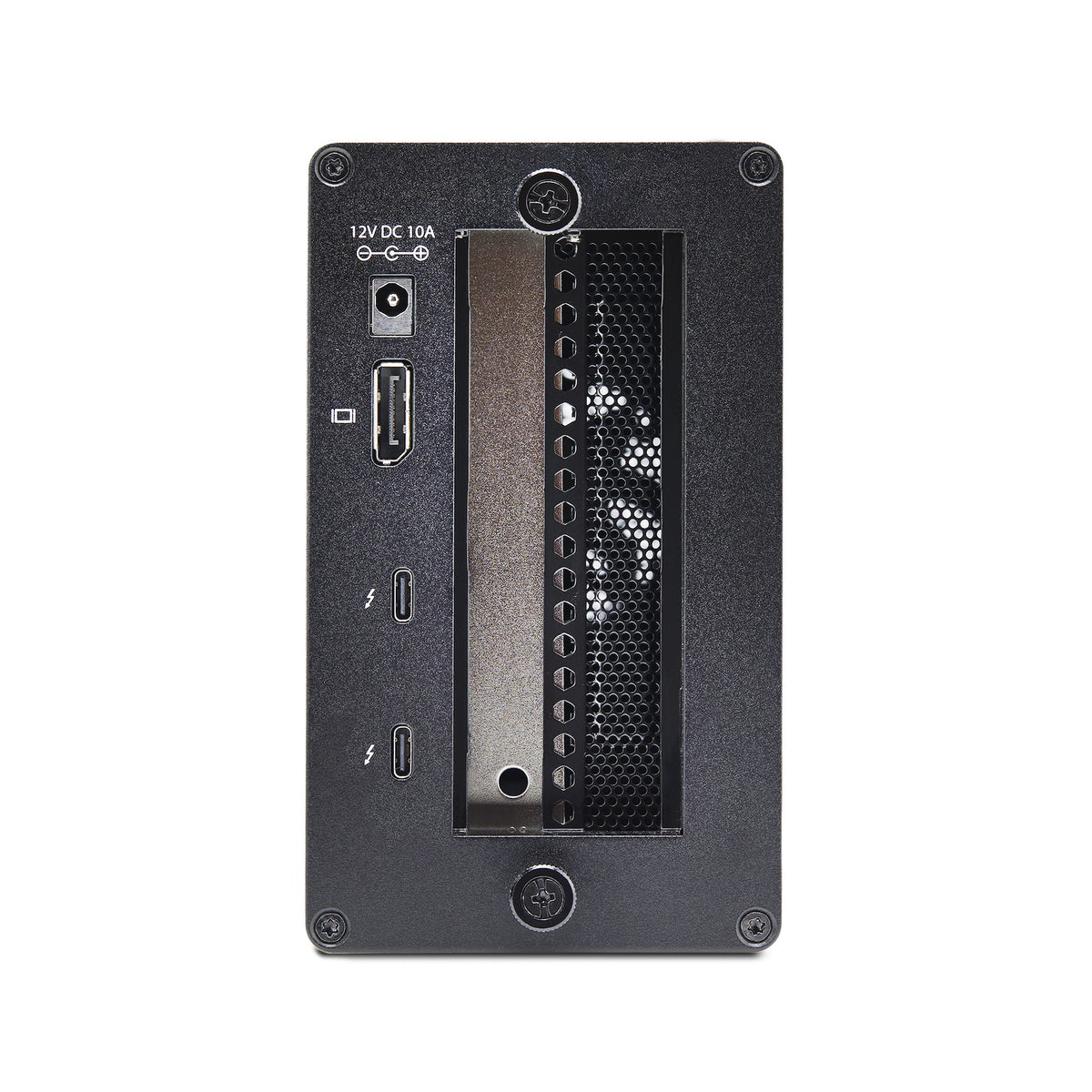

Connect a second high-resolution monitor using the DP 1.4 or Thunderbolt 3 ports at the back of the chassis. Enjoy video resolutions of up to single 8K or 5K 60Hz or dual 4K 60Hz (other video resolutions are also supported).
Compatibility
The enclosure is driverless, enabling rapid deployment and is supported in macOS, Windows, and Linux.
The chassis can be placed horizontally or vertically, adapting to your workspace. The toolless design and aluminum construction ensure fast card installation and longevity.
Note: Some expansion cards installed in the chassis may require drivers to be installed.
The StarTech.com Advantage
Add two PCI-Express 3.0 x16 capable cards and increase the potential of a Thunderbolt 3 or 4 capable laptop, desktop, or all-in-one system. This Thunderbolt 3 PCIe Expansion Chassis lets you take advantage of the vast range of PCIe expansion cards with computers that lack PCIe slots. The chassis lets you connect an external monitor via the DisplayPort (DP) or Thunderbolt 3 ports, supporting Ultra High Definition (UHD) 4K or 8K resolutions.
Enhanced Computer Capabilities
Connect the expansion box to a Thunderbolt 3 or 4 computer with the included 3.3ft (1m) Thunderbolt-certified cable. The chassis features dual PCIe 3.0 x16 slots with 32Gbps of bandwidth that is shared dynamically between both slots (each slot supports up to 2700MBps/21.6Gbps). Add extra functionality to a host device using video capture cards, high-speed fiber or Ethernet networking, NVMe drives, FireWire, sound cards, or any other PCIe-compatible card.
Flexible Card Support
The expansions chassis supports single-slot cards to a maximum length of 8in (20.3cm), allowing current or legacy PCIe cards to be installed. The built-in fan ensures active cooling for your hardware, preventing overheating during heavy usage.
The TAA-Compliant chassis delivers up to 25W per slot, ensuring optimal performance for your connected devices. In addition, the two internal 12V 15W SATA power ports ensure the installed cards have enough power (up to 40W per card) at their disposal.
8K & 4K Monitor Support
Connect a second high-resolution monitor using the DP 1.4 or Thunderbolt 3 ports at the back of the chassis. Enjoy video resolutions of up to single 8K or 5K 60Hz or dual 4K 60Hz (other video resolutions are also supported).
Compatibility
The enclosure is driverless, enabling rapid deployment and is supported in macOS, Windows, and Linux.

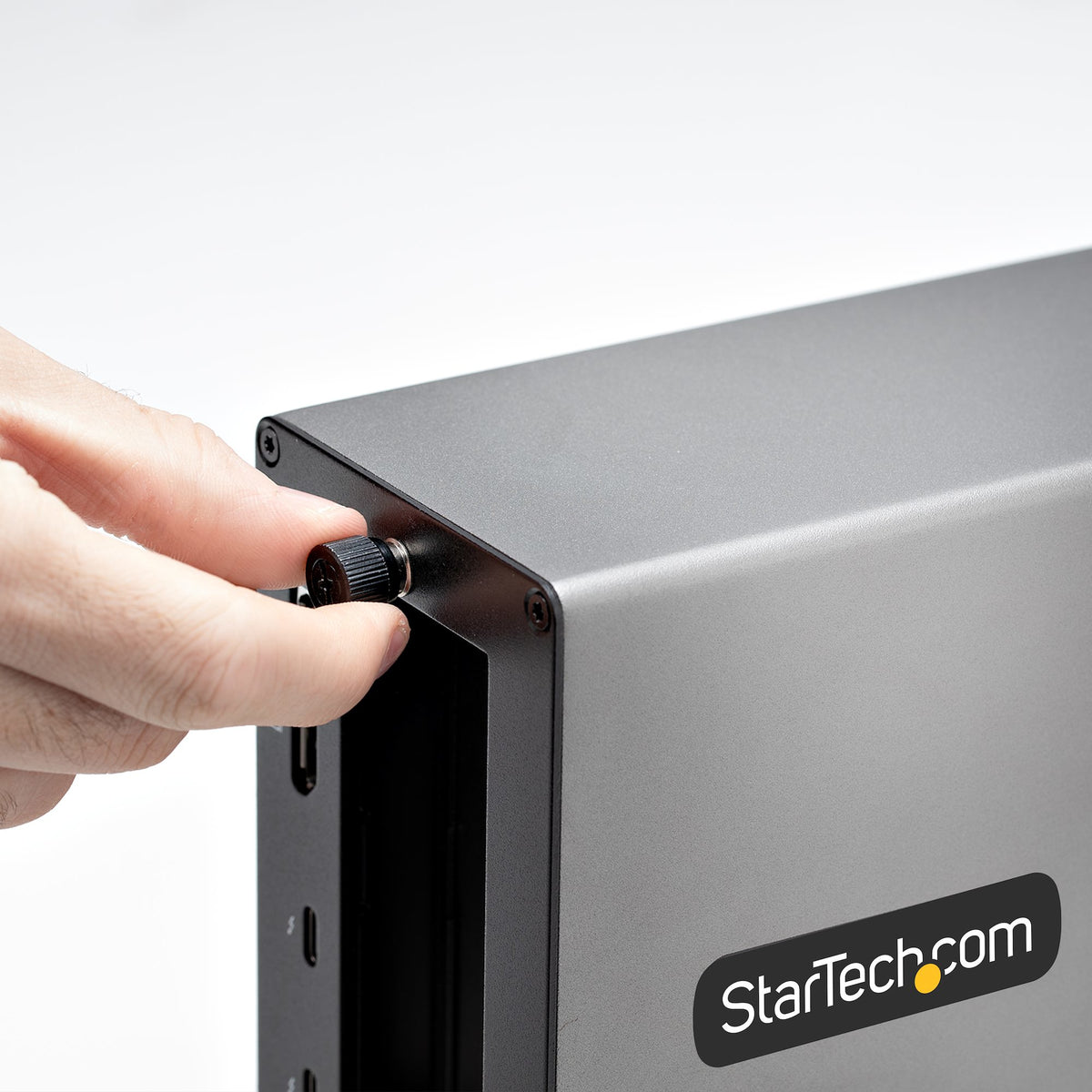

The chassis can be placed horizontally or vertically, adapting to your workspace. The toolless design and aluminum construction ensure fast card installation and longevity.
Note: Some expansion cards installed in the chassis may require drivers to be installed.
The StarTech.com Advantage
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Silver
- Host interface: Thunderbolt 3
- Card reader integrated: No
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
- Connectivity technology: Wired
- Ethernet LAN: No
- Mac operating systems supported: Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
- Operating relative humidity (H-H): 20 - 80%
- Microphone in: No
- Products per master (outer) case: 3 pc(s)
- Master (outer) case height: 32.5 cm
- Master (outer) case length: 45.5 cm
- Master (outer) case width: 37.5 cm
- Chipset: Titan Ridge DSL7440 (x2), Ti TPS65983B (x2)
- Compliance certificates: RoHS, Trade Agreements Act (TAA)
- Housing material: Aluminium
- Power source type: DC
- HD type: 8K Ultra HD
- Quick start guide: Yes
- Maximum refresh rate: 60Hz
Cooling
- Built-in fan
- Yes
- Fan diameter
- 6 cm
- Number of fans
- 1 fan(s)
Operational conditions
- Operating temperature (T-T)
- 5 - 65 °C
- Storage temperature (T-T)
- -20 - 65 °C
Packaging content
- AC adapter included
- Yes
- Cables included
- Thunderbolt
Packaging data
- Package depth
- 35.3 cm
- Package height
- 14.3 cm
- Package weight
- 3.4 kg
- Package width
- 28.5 cm
Performance
- LED indicators
- Power
- Number of displays supported
- 2
- Rubber feet
- Yes
Ports & interfaces
- DisplayPorts quantity
- 1
- DisplayPort version
- 1.4
- PCIe version
- 3.0
- PCI Express x16 slots
- 2
- Thunderbolt 3 ports quantity
- 2
Power
- AC input voltage
- 100 - 240 V
- Compatible power plug types
- AU, EU, JP, UK, US
- Input current
- 3 A
- Output current
- 10 A
- Output voltage
- 12 V
- Power consumption (max)
- 120 W
Sustainability
- Sustainability compliance
- Yes
Weight & dimensions
- Depth
- 8.4 cm
- Height
- 14.2 cm
- Weight
- 1.6 kg
- Width
- 28.1 cm
AC adapter included
Cables included: Thunderbolt
Quick start guide
Cables included: Thunderbolt
Quick start guide
Materials
Housing material: Aluminium
