StarTech.com PCI Express to PCI Adapter Card - TAA
Regular price
$103.51
Sale price
Regular price
Tax included.
Hurry up, only 2 items left in stock.
Install half-height/low profile PCI interface cards in a standard PCI Express expansion slot

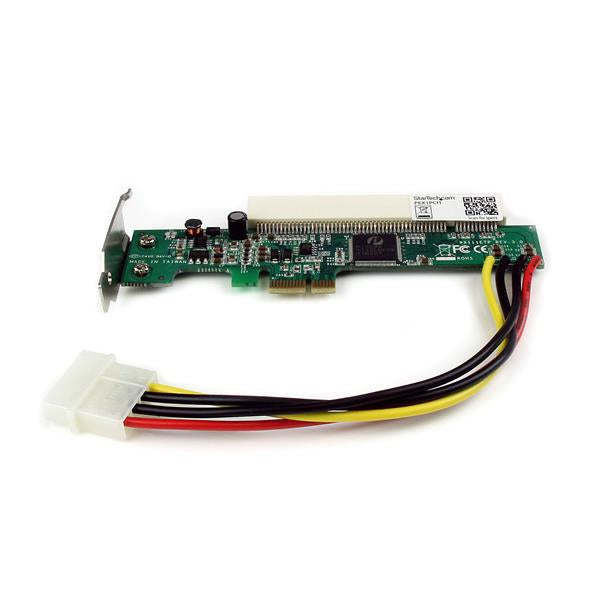

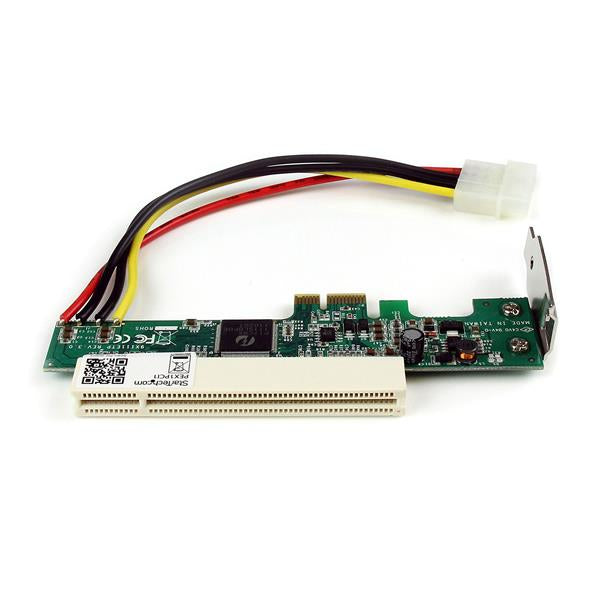

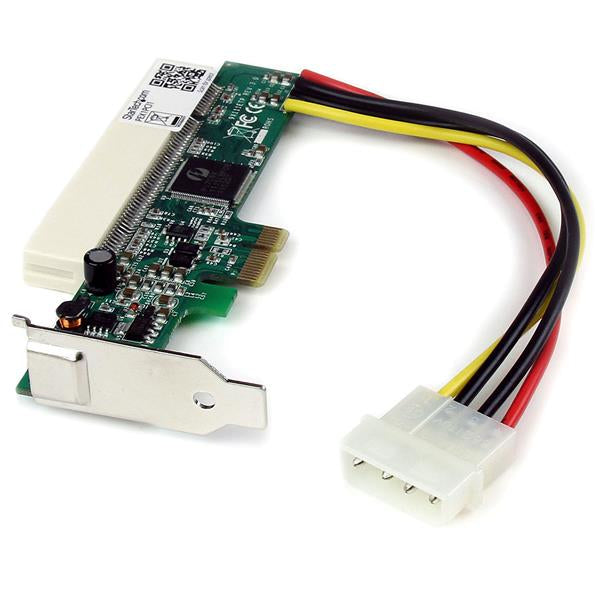

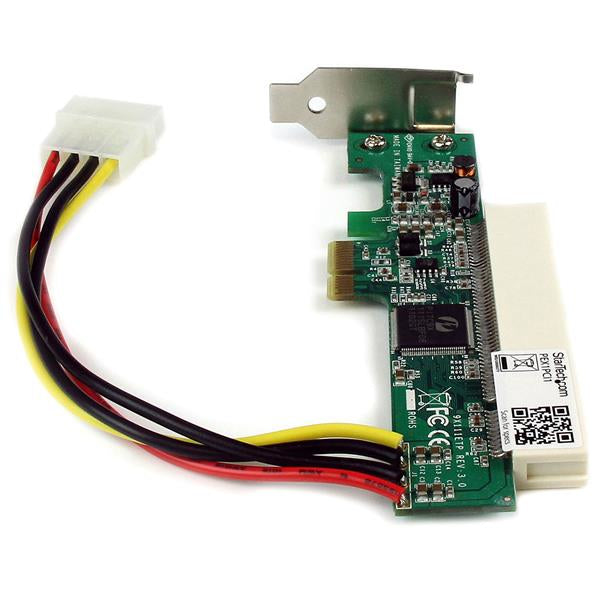

This PCIe to PCI Adapter Card lets you use low profile PCI expansion cards in a server or desktop motherboard PCI Express slot. Compliant with PCI Express Specification 1.0a and PCI Specification 2.2, the adapter card connects through a PCIe 1x slot to provide a low profile PCI slot in its place. A spare full size bracket for PCI Express card is also included for use in larger desktop or server PCI Express slots.
A versatile solution, the adapter card converts PCIe to PCI or PCI-X; a built-on LP4 power connector links the card to the computer power supply, allowing you to install universal voltage PCI cards (3.3V/5V).
The adapter card offers an economical solution that lets you extend the usability of older or extra PCI Bus cards in newer PCIe capable systems.
To ensure suitable installation, the PCIe/PCI adapter features an innovative bracket design that adapts and secures the low profile PCI or PCI-X card into the converted slot.
This PCIe to PCI Adapter Card lets you use low profile PCI expansion cards in a server or desktop motherboard PCI Express slot. Compliant with PCI Express Specification 1.0a and PCI Specification 2.2, the adapter card connects through a PCIe 1x slot to provide a low profile PCI slot in its place. A spare full size bracket for PCI Express card is also included for use in larger desktop or server PCI Express slots.
A versatile solution, the adapter card converts PCIe to PCI or PCI-X; a built-on LP4 power connector links the card to the computer power supply, allowing you to install universal voltage PCI cards (3.3V/5V).
The adapter card offers an economical solution that lets you extend the usability of older or extra PCI Bus cards in newer PCIe capable systems.
To ensure suitable installation, the PCIe/PCI adapter features an innovative bracket design that adapts and secures the low profile PCI or PCI-X card into the converted slot.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Red
- Output interface: PCI 32-bit
- Host interface: PCIe
- Harmonized System (HS) code: 84733020
- Operating temperature (T-T): 0 - 85 °C
- Products per master (outer) case: 75 pc(s)
- Master (outer) case height: 31 cm
- Master (outer) case length: 68 cm
- Master (outer) case width: 35.2 cm
- Chipset: PERICOM PI7C9X110BNBE
- Certification: CE, FC, ROHS
- Connectivity technology: Wired
- Compatible operating systems: Windows 2000/XP/Vista
- Mac compatibility: No
- I/O ports: 1x PCI 32-bit
- Ports quantity: 1
- Form factor: LP/ST
- Platform: PC
- Power requirements: 3.3V
Packaging data
- Package depth
- 17.5 cm
- Package height
- 3.3 cm
- Package weight
- 0.12 kg
- Package width
- 14.4 cm
Weight & dimensions
- Depth
- 13.5 cm
- Height
- 2 cm
- Weight
- 0.05 kg
- Width
- 7 cm
Materials
Compare With Similar Items
|
|
|
|
|
|
|
| Description | Install half-height/low profile PCI interface cards in a standard PCI Express expansion slot This PCIe to PCI Adapter Card lets you use low profile PCI expansion cards in a server or desktop motherboard PCI Express slot. Compliant with PCI Express Specification 1.0a and PCI Specification 2.2, the adapter card connects through a PCIe 1x slot to provide a low profile PCI slot in its place. A spare full size bracket for PCI Express card is also included for use in larger desktop or server PCI Express slots. A versatile solution, the adapter card converts PCIe to PCI or PCI-X; a built-on LP4 power connector links the card to the computer power supply, allowing you to install universal voltage PCI cards (3.3V/5V). The adapter card offers an economical solution that lets you extend the usability of older or extra PCI Bus cards in newer PCIe capable systems. To ensure suitable installation, the PCIe/PCI adapter features an innovative bracket design that adapts and secures the low profile PCI or PCI-X card into the converted slot. |
Mount a 2.5" U.2 NVMe SSD into your desktop computer or server, using an available PCIe expansion slot Get ultra-fast data access by adding an NVMe U.2 SSD to your computer. This U.2 to PCIe adapter lets you add a high-speed, U.2 (4-lane PCIe) 2.5" NVMe SSD, such as the Intel® 750 Series drive, to a PC with an available x4 PCI Express expansion slot. You can mount the PCIe U.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage. Boost your system speed and performance The expansion card lets you take full advantage of the fast performance and compact size of PCIe U.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an NVMe U.2 PCIe-based SSD through ultra-fast x4 PCIe. With the U.2 PCIe-based drive in place, the adapter gives your computer a significant speed boost. Easy to install The expansion card is equipped with a full-profile bracket and doesn't require an adapter cable for installation, this helps to reduce clutter and simplifies system builds. The drive connects directly to the SFF-8639 connector on the adapter, and the adapter connects directly to the computer motherboard. The adapter is compatible with PCIe 4.0 motherboards and is also backward compatible with PCIe 3.0 / 2.0 / 1.0. |
PCI Express to Serial Adapter | 921.6Kbps | Windows® and Linux® Compatible This PCI Express RS232 serial adapter card lets you add four RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot. The 4 port PCIe serial card enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.6Kbps. Maximum Compatibility With broad OS support, including for Windows and Linux, this PCI E serial card is easy to integrate into mixed environments. The card comes pre-configured with low-profile brackets and includes optional full-profile brackets, so installation is easy regardless of the case form factor. This card is a direct replacement for PEX4S952LP . Experience Optimal Technology • This PCIe to serial adapter supports the following features: • Compatible with industry-standard 16950 UART • Supports max baud rate of up-to 921.6Kbps • Provides 5/12V power output on Pin 9 when external power is connected • 256-byte depth FIFO cache per transmitter and receiver • Supports 9, 8, 7, 6, 5 data bits (one per port) • Asix AX99100 chipset PCI Express 1.1 compliant The Choice of IT Pros Since 1985 StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales. PEX4S03LP is backed by a StarTech.com lifetime warranty and free lifetime technical support. |

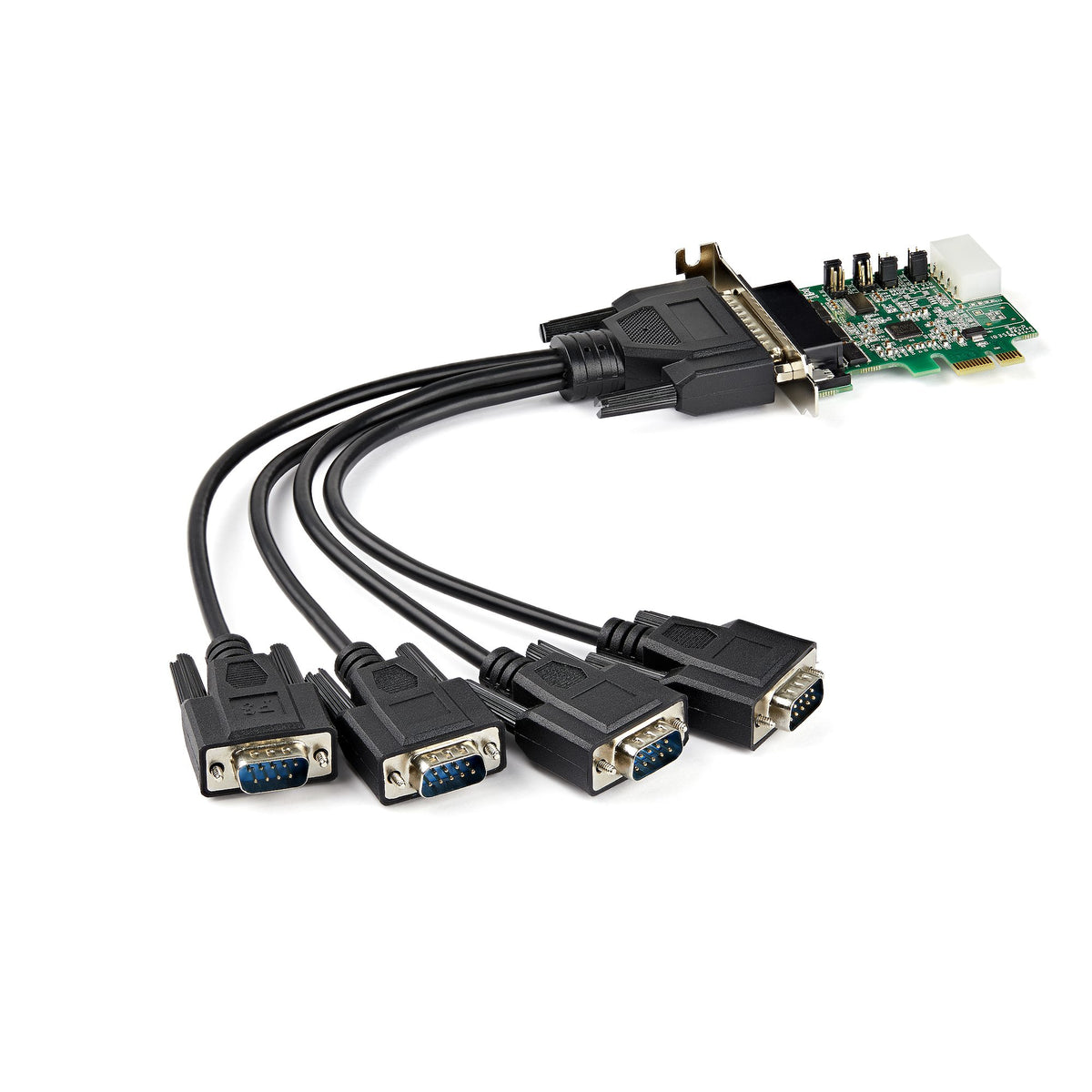

PCI Express to Serial Adapter | 921.6Kbps | Windows® and Linux® Compatible This PCI Express RS232 serial adapter card lets you add four RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot, as if they were native serial ports. The 4 port PCIe serial card enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.6Kbps. Maximum Compatibility With broad OS support, including for Windows and Linux, this multiport PCI E serial card is easy to integrate into mixed environments. The card comes pre-configured with a full-sized bracket, and includes an optional low-profile bracket, so installation is easy regardless of the case form factor. This expansion card is a direct replacement for PEX4S952 . Experience Optimal Technology This PCIe to serial adapter supports the following features: • Industry standard 16950 UART compatible • Supports max baud rate of up-to 921.6Kbps • Provides 5/12V power output on Pin 9 when external power is connected • 256-byte depth FIFO cache per transmitter and receiver • Supports 9, 8, 7, 6, 5 data bits (one per port) • Asix AX99100A chipset • Base PCI Express 1.1 compliant The Choice of IT Pros Since 1985 StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales. |

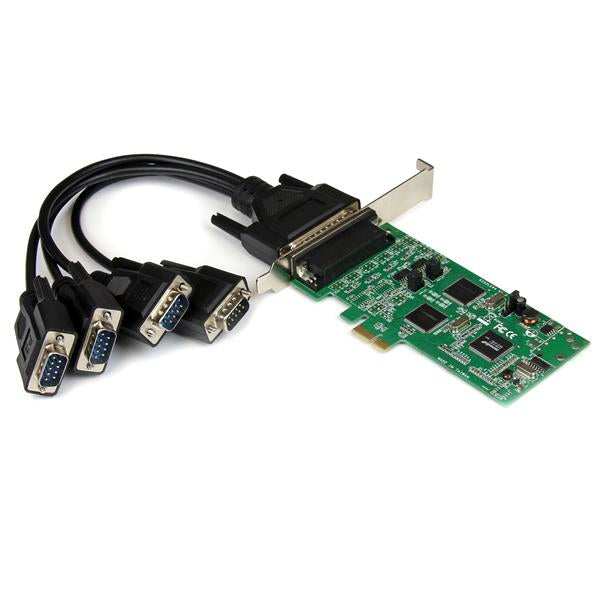

Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 lets you add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot. This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes. A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections. Backed by a StarTech.com lifetime warranty and free lifetime technical support. |
