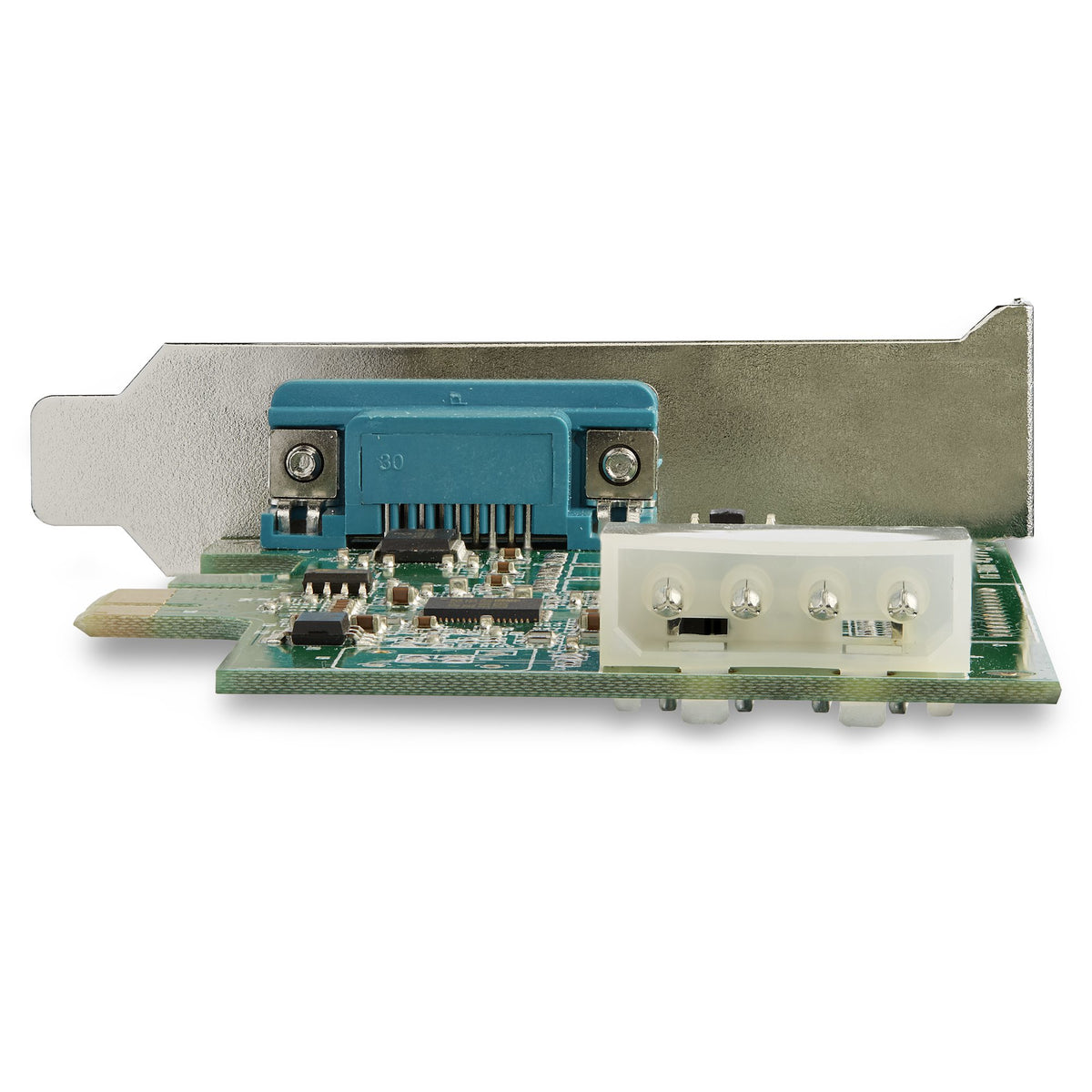

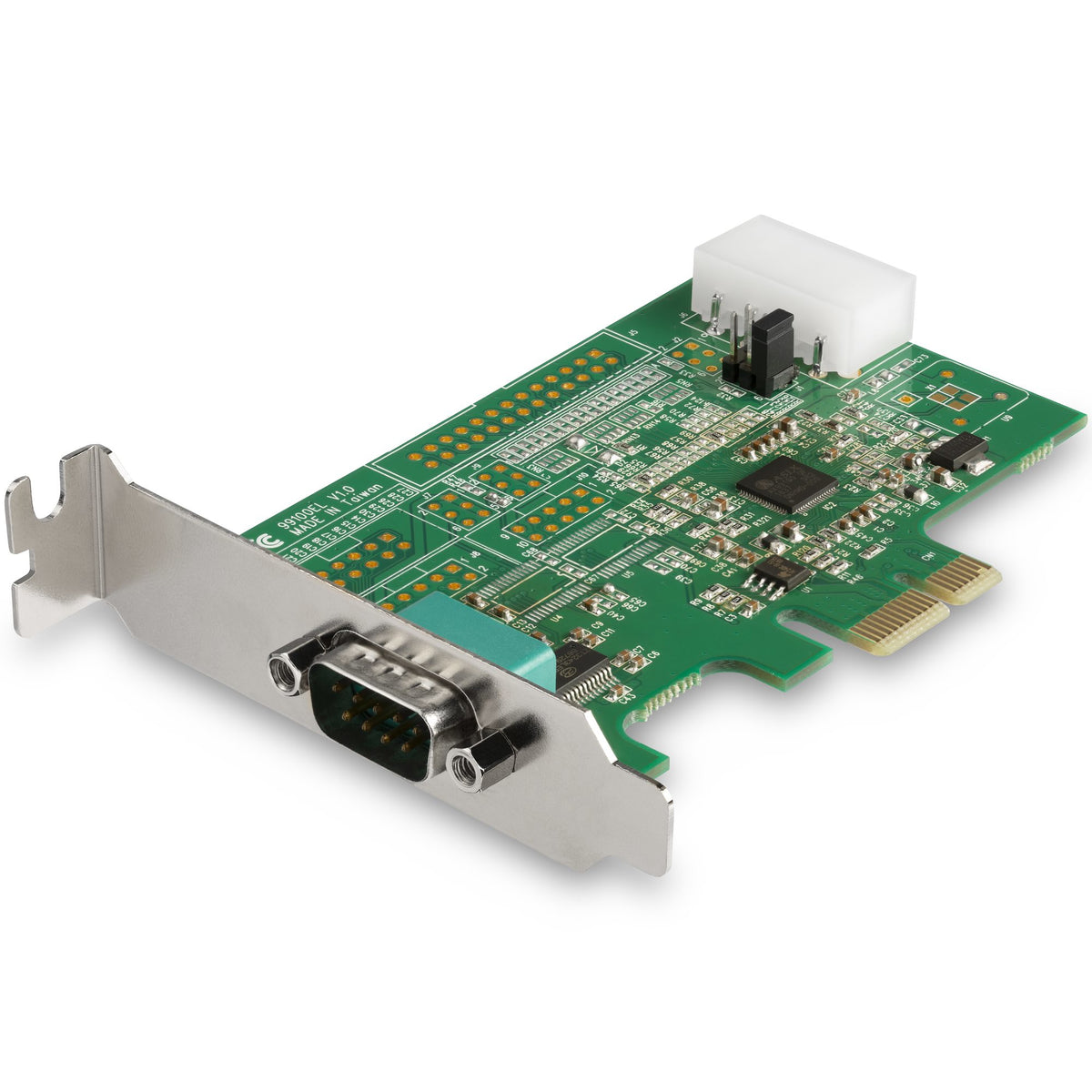

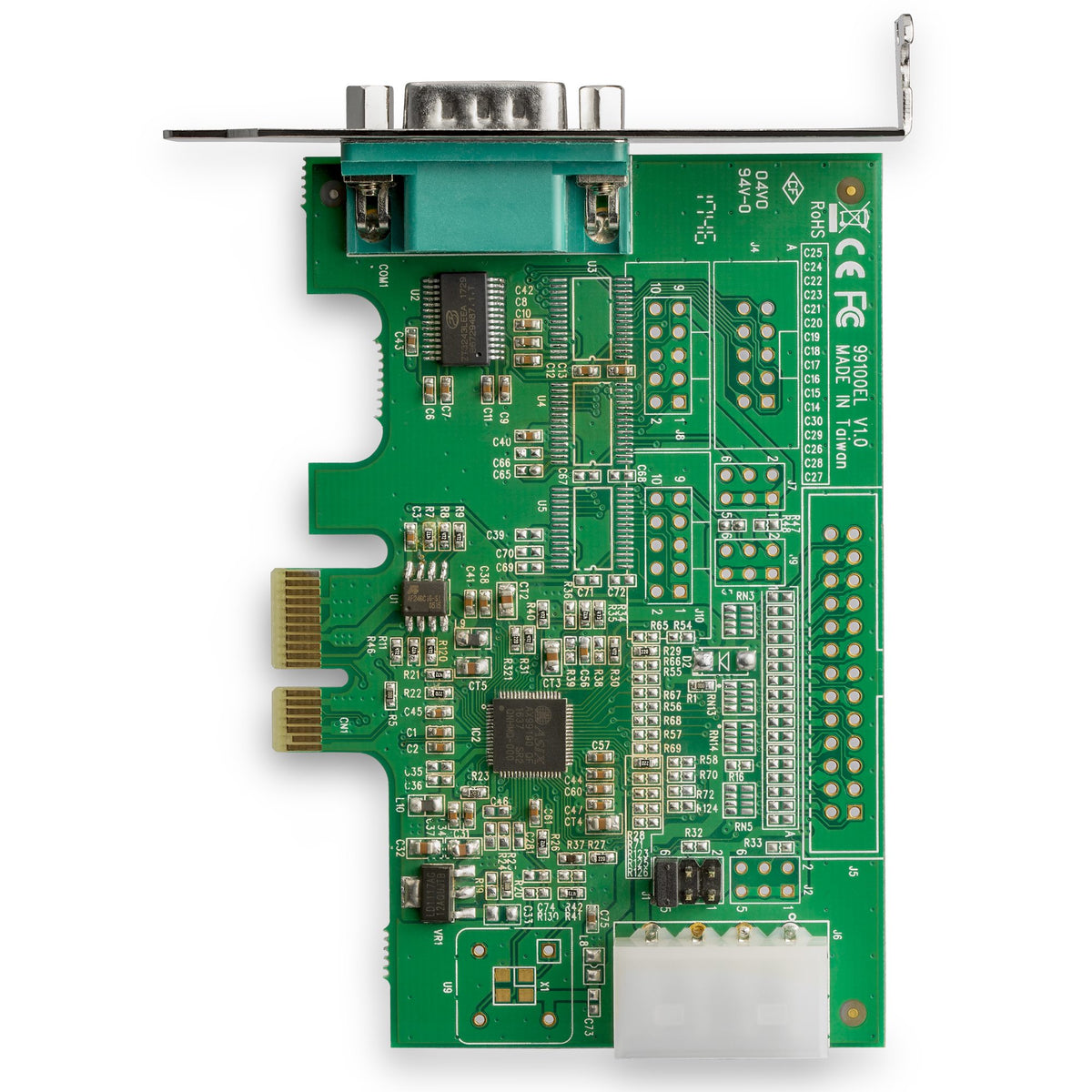

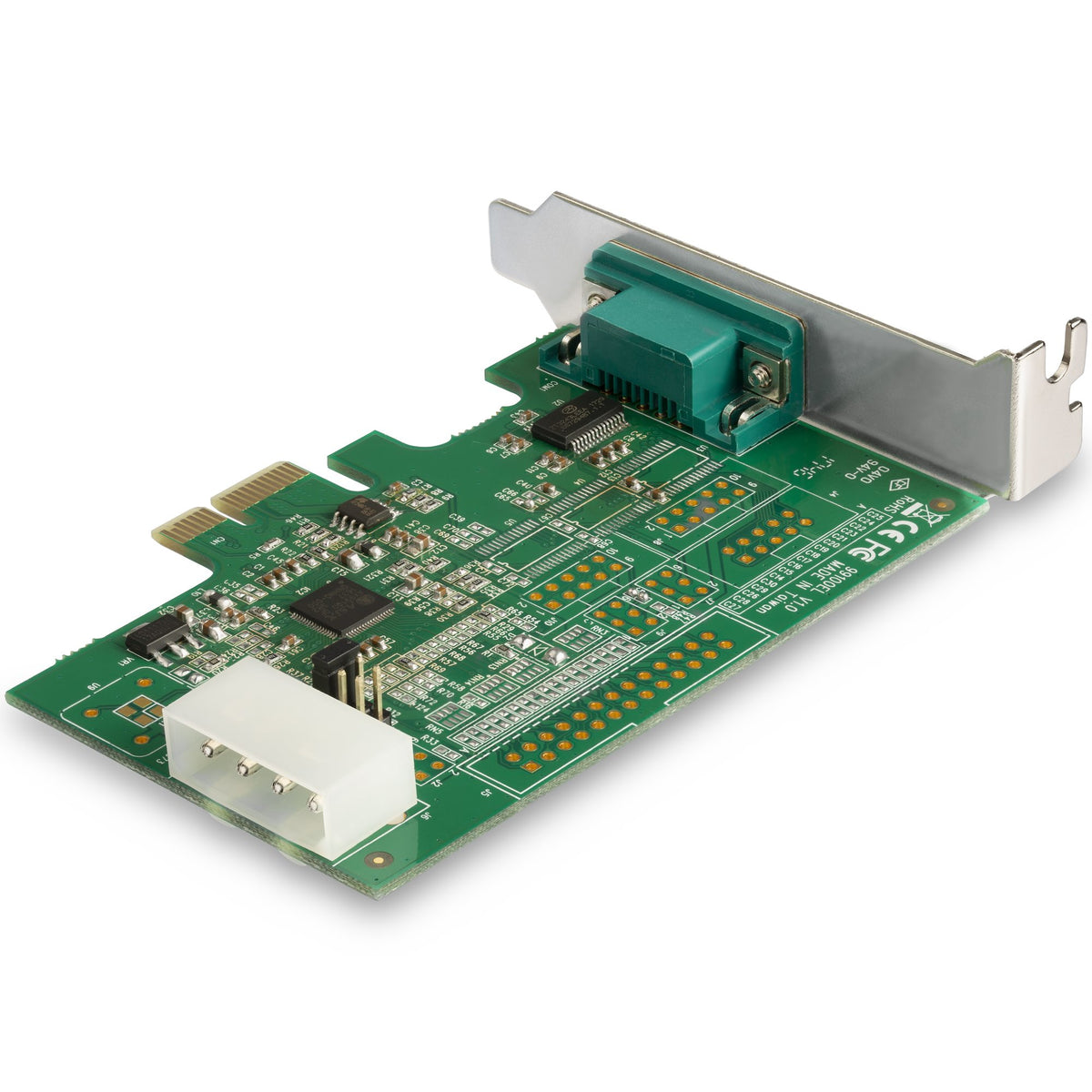

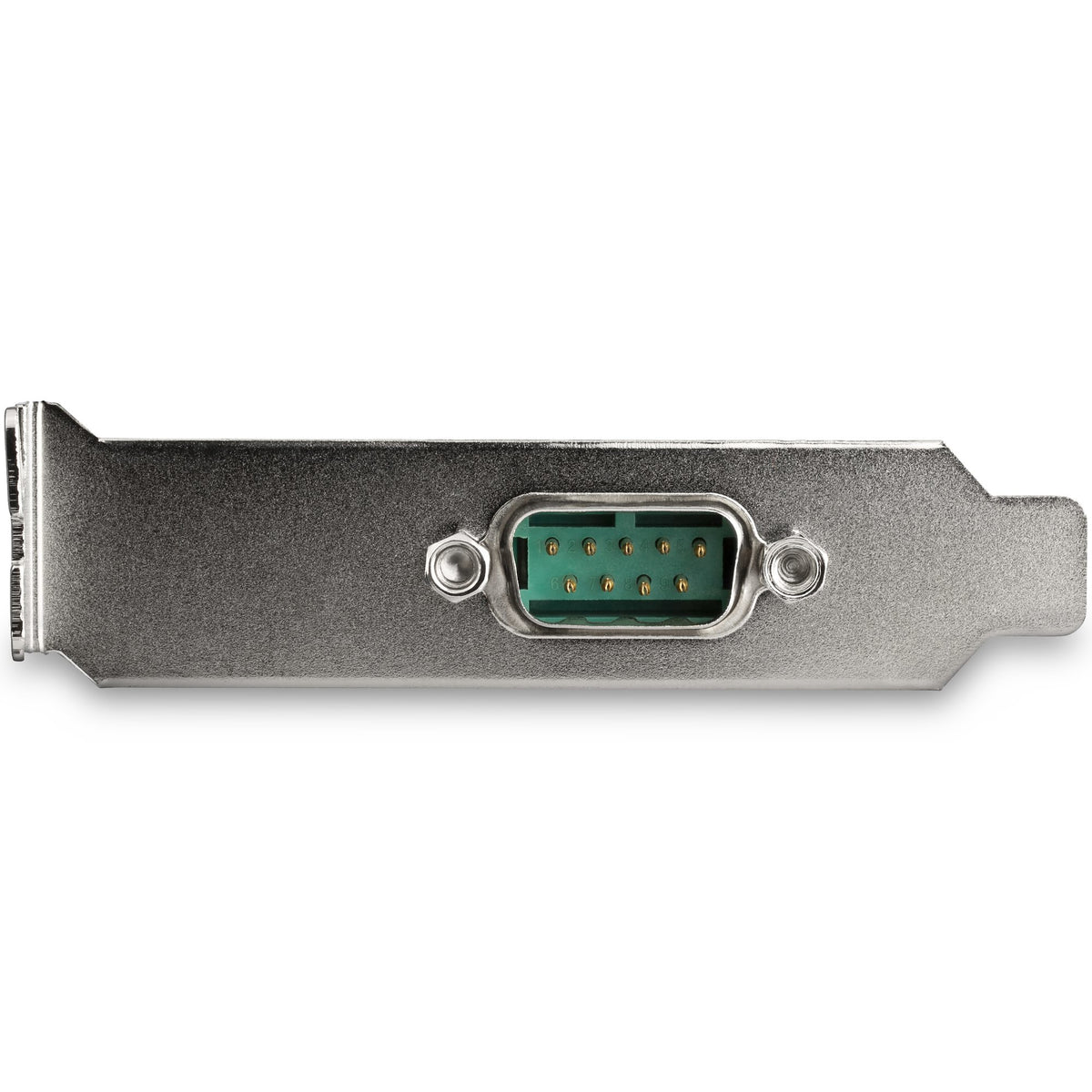

StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux - TAA
Regular price
$109.20
Sale price
Regular price
Tax included.
Available in stock (27)
PCI Express to Serial Adapter | 921.4Kbps | Windows® and Linux® Compatible
This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.
Maximum Compatibility
With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.
Experience Optimal Technology
This PCIe to serial adapter supports the following features:
• Compatible with industry standard 16950 UART
• Supports max baud rate of up-to 921.4Kbps
• Provides 5/12V power output on Pin 9 when external power is connected
• 128-byte depth FIFO per transmitter and receiver
• Supports 9, 8, 7, 6, 5 data bits
• Asix AX99100A chipset
• PCI Express 1.1 compliant
This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.
Maximum Compatibility
With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.
Experience Optimal Technology
This PCIe to serial adapter supports the following features:
• Compatible with industry standard 16950 UART
• Supports max baud rate of up-to 921.4Kbps
• Provides 5/12V power output on Pin 9 when external power is connected
• 128-byte depth FIFO per transmitter and receiver
• Supports 9, 8, 7, 6, 5 data bits
• Asix AX99100A chipset
• PCI Express 1.1 compliant
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Green
- Internal: Yes
- Output interface: Serial
- Host interface: PCIe
- Harmonized System (HS) code: 84733020
- Operating temperature (T-T): 0 - 70 °C
- Products per master (outer) case: 75 pc(s)
- Master (outer) case height: 32.5 cm
- Master (outer) case length: 35.8 cm
- Master (outer) case width: 69.4 cm
- Operating relative humidity (H-H): 20 - 80%
- Compliance certificates: CE, RoHS
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
- Chipset: Asix AX99100
- Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
- Linux operating systems supported: Yes
- Expansion card standard: PCIe 1.1
- Manual: Yes
- Mean time between failures (MTBF): 277385 h
- Quantity: 1
Features
- Baud rate
- 921.4 Kbit/s
- Data bits
- 5, 6, 7, 8, 9
- FIFO (First In, First Out)
- 256 B
- Flow control support
- Yes
- Flow Control type
- No, RTS/CTS, XON/XOFF
- Parity bit
- Even, Mark, No, Odd, Space
- Stop bits
- 1, 1.5, 2
Operational conditions
- Storage temperature (T-T)
- -20 - 80 °C
Packaging data
- Mounting brackets included
- Yes
- Package depth
- 17.4 cm
- Package height
- 3.3 cm
- Package weight
- 0.11 kg
- Package width
- 14.3 cm
Ports & interfaces
- Peripheral (Molex) power connectors (4-pin)
- 1
- Serial interface type
- RS-232
- Serial ports quantity
- 1
Technical details
- Sustainability compliance
- Yes
Weight & dimensions
- Depth
- 9.8 cm
- Height
- 15 cm
- Weight
- 0.04 kg
- Width
- 6.7 cm
Manual
Mounting brackets included
Mounting brackets included
Materials
Compare With Similar Items
|
|
|
|
|
|
|
| Description | PCI Express to Serial Adapter | 921.4Kbps | Windows® and Linux® Compatible This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps. Maximum Compatibility With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor. Experience Optimal Technology This PCIe to serial adapter supports the following features: • Compatible with industry standard 16950 UART • Supports max baud rate of up-to 921.4Kbps • Provides 5/12V power output on Pin 9 when external power is connected • 128-byte depth FIFO per transmitter and receiver • Supports 9, 8, 7, 6, 5 data bits • Asix AX99100A chipset • PCI Express 1.1 compliant |

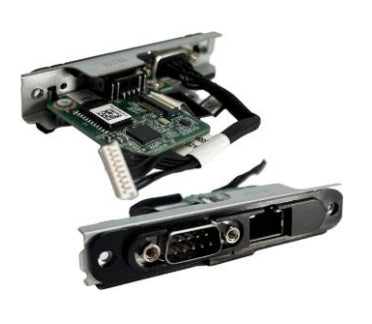

ASUS NUCIOALASCR. Output interface: RJ-45, RS-232. Data transfer rate (max): 2.5 Gbit/s. Width: 56 mm, Depth: 88 mm, Height: 20 mm. Quantity per pack: 1 pc(s), Package width: 105 mm, Package depth: 110 mm |
