TP-Link Omada 5-Port Gigabit Easy Managed Switch
Regular price
$70.08
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Hurry up, only 3 items left in stock.

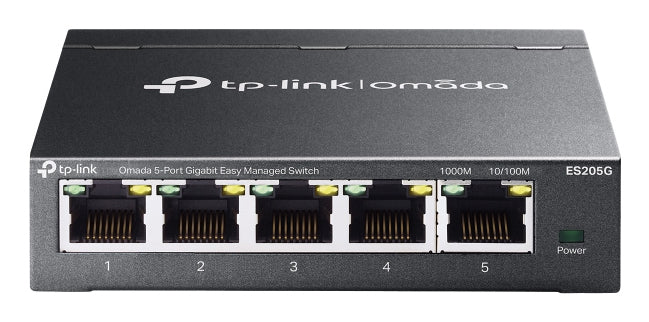

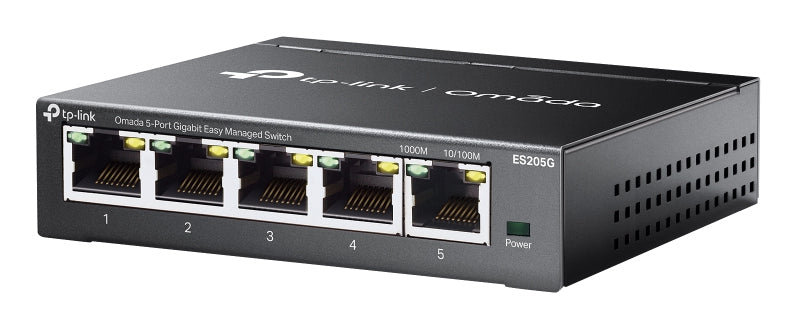

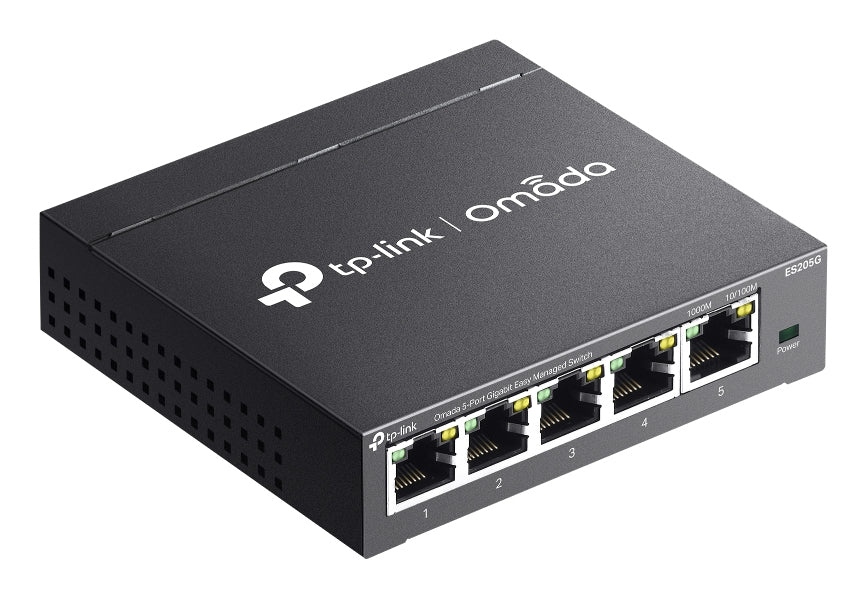

Omada 5-Port Gigabit Easy Managed Switch
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Switch type: Managed
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 10 - 90%
- Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Switching capacity: 10 Gbit/s
- MAC address table: 8000 entries
- 10G support: No
- Storage relative humidity (H-H): 5 - 90%
- LED indicators: Yes
- Quality of Service (QoS) support: Yes
- Flow control support: Yes
- Jumbo frames support: Yes
- Forwarding rate: 7.4 Mpps
- Jumbo frames: 15
- IGMP snooping: Yes
- Link aggregation: Yes
- Power supply included: Yes
Certificates
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
Data transmission
- Packet buffer memory
- 4MB
- Store-and-forward
- Yes
Design

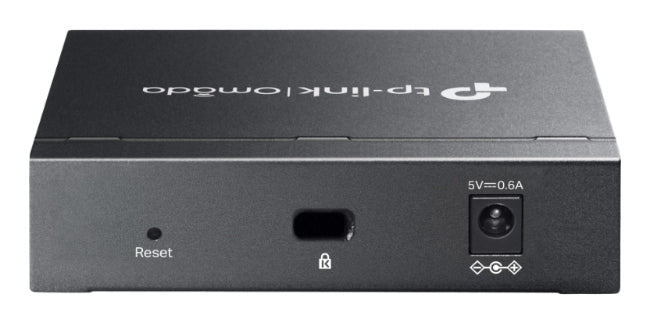

- Reset button
- Yes

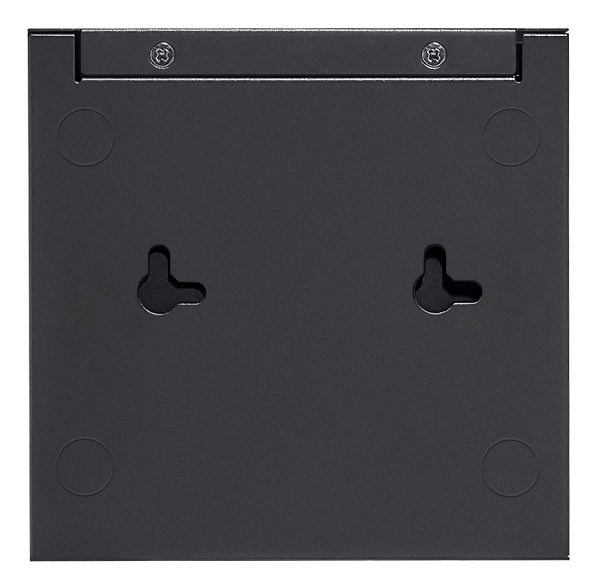

- Wall mountable
- Yes
Management features
- Cloud-managed
- Yes
Network
- Auto-negotiation
- Yes
- Auto MDI/MDI-X
- Yes
- Port mirroring
- Yes
- Virtual LAN features
- MTU VLAN, Port-based VLAN, Tagged VLAN
- VLAN support
- Yes
Operational conditions
- Storage temperature (T-T)
- -40 - 70 °C
Packaging content
- User guide
- Yes
Packaging data
- Package type
- Box
Performance
- Fanless
- Yes
Power
- DC input voltage
- 5 V
- Power source
- AC/DC
Security
- DHCP features
- DHCP client
- Loop protection
- Yes
Weight & dimensions
- Depth
- 9.8 cm
- Height
- 2.5 cm
- Width
- 10 cm
Power supply included
Materials
