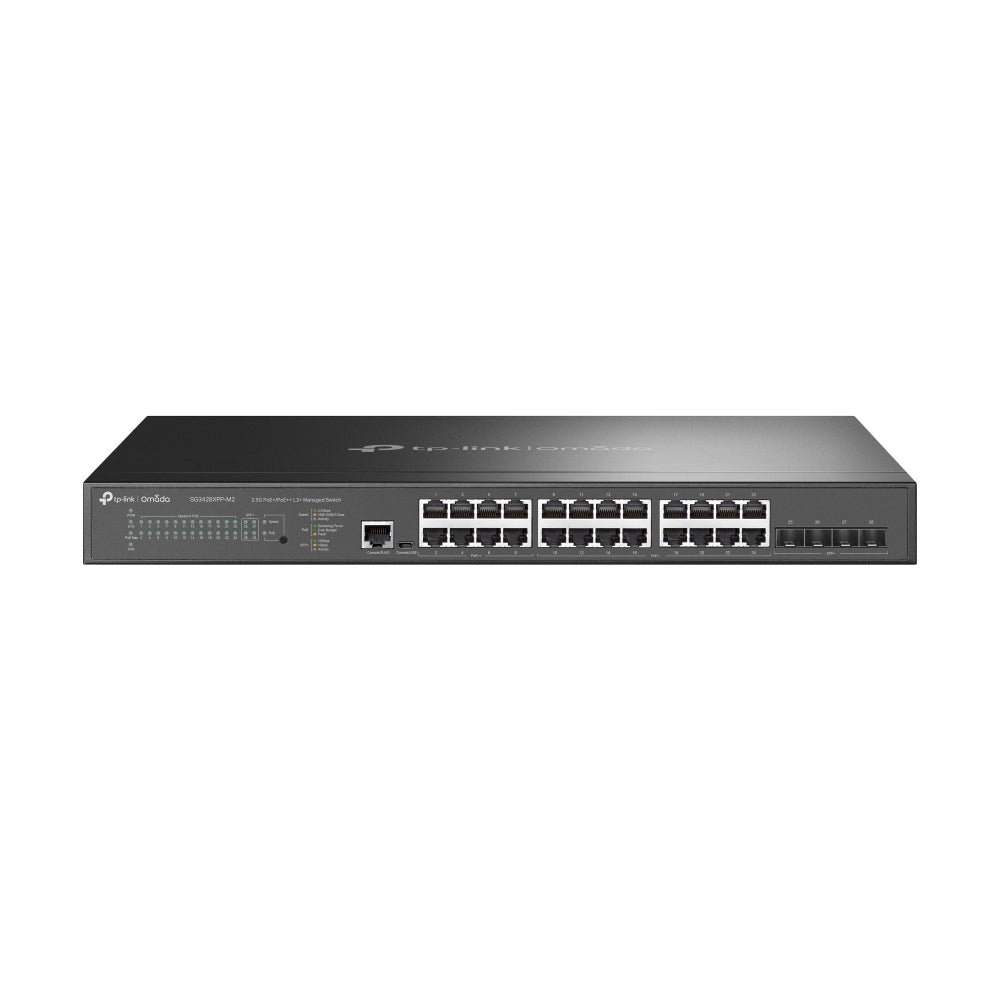

TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
Regular price
$1,428.90
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Hurry up, only 4 items left in stock.
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Internal memory: 256MB
- Product colour: Black
- Switch type: Managed
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 10 - 90%
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
- Power over Ethernet (PoE): Yes
- Switching capacity: 200 Gbit/s
- MAC address table: 32000 entries
- 10G support: Yes
- Storage relative humidity (H-H): 5 - 90%
- LED indicators: Yes
- Quality of Service (QoS) support: Yes
- Rack mounting: Yes
- Flow control support: Yes
- Jumbo frames support: Yes
- Switch layer: L2+
- Forwarding rate: 148.8 Mpps
Certificates
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
Data transmission
- Jumbo frames
- 9000
- Number of IP interfaces
- 32
- Number of queues
- 8
- Number of static routes
- 48
- Packet buffer memory
- 16MB
- Static route
- Yes
- Store-and-forward
- Yes
Design
- Form factor
- 1U
- Number of fans
- 3 fan(s)
- Redundant fans support
- Yes
Management features
- ARP inspection
- Yes
- Cloud-managed
- Yes
- Configuring Location Settings (CLI)
- Yes
- MIB support
- RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
- System event log
- Yes
- Web-based management
- Yes
Multicast features
- Multicast Listener Discovery (MLD) snooping
- MLD v1/v2
- Multicast support
- Yes
Network
- Broadcast storm control
- Yes
- Ethernet LAN data rates
- 10,100,1000,2500,10000 Mbit/s
- Full duplex
- Yes
- Half duplex
- Yes
- Head-of-line (HOL) blocking
- Yes
- IPv4 routes
- 48
- IPv6 routes
- 48
- Link aggregation
- Yes
- Port mirroring
- Yes
- Rate limiting
- Yes
- Spanning tree protocol
- Yes
- Virtual LAN features
- MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN
- VLAN support
- Yes
Operational conditions
- Heat dissipation
- 2153.45 BTU/h
- Storage temperature (T-T)
- -40 - 70 °C
Packaging content
- Cables included
- AC
- Quick start guide
- Yes
- Rack mount kit
- Yes
Performance
- Flash memory
- 32MB
- Memory type
- DRAM
Ports & interfaces
- 2.5G Ethernet (copper) ports quantity
- 24
- Console port
- RJ-45/Micro-USB
- SFP+ module slots quantity
- 4
Power
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Power consumption (max)
- 629.1 W
- Power source
- AC/PoE
- Power supply included
- Yes
- Redundant power supply (RPS) support
- Yes
Power over Ethernet (PoE)
- Power over Ethernet 4PPoE (PoE++) ports quantity
- 8
- Power over Ethernet plus (PoE+) ports quantity
- 16
- Total Power over Ethernet (PoE) budget
- 500 W
Protocols
- GARP VLAN Registration Protocol (GVRP)
- Yes
- IPv4 & IPv6 features
- IPv4/IPv6 access-control list (ACL), IPv6 ping, IPv6 portal, IPv6 tracert
- Management protocols
- SNMP v1/v2c/v3
Security
- Access Control List (ACL)
- Yes
- Authentication
- Guest VLAN, MAC-based authentication, Port-based authentication
- Authentication type
- AAA, IEEE 802.1x, RADIUS, TACACS+
- BPDU filtering/protection
- Yes
- DHCP features
- DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
- IGMP snooping
- Yes
- IP-MAC-Port binding
- Yes
- Loop protection
- Yes
- Password protection
- Yes
- Queue scheduling algorithms
- SP, WRR+SP, Weighted Round Robin (WRR)
- Security algorithms
- HTTPS, SSH, SSH-2, SSL/TLS
- SSH/SSL support
- Yes
- Static port security
- Yes
Sustainability
- Sustainability compliance
- Yes
Weight & dimensions
- Depth
- 33 cm
- Height
- 4.4 cm
- Width
- 44 cm
Cables included: AC
Quick start guide
Power supply included
Quick start guide
Power supply included
Materials
Compare With Similar Items
|
|
|
|
|
|
| Description | TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks. |
What This Product Does TP-Link desktop switch TL-SL1311MP is an unmanaged switch with 8× 10/100Mbps ports and 3× Gigabit ports that requires no configuration. With 8× PoE (Power over Ethernet) ports, it can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc. Professional 11-Port Switch with 8-Port PoE+ (124 W Budget) for Numerous Applications Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 124 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more. Ideal for IP Surveillance—Long-Range PoE Transmission and One-Click Traffic Separation With Extend Mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas. With one click, Isolation Mode easily divides traffic for ports 1–8 to avoid snooping and tampering. This enables the switch to isolate broadcast storm for higher security and performance. Intelligent Power Management When total power consumption exceeds 124 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged. Durable Metal Casing The interior components of TL-SL1311MP are protected by high-quality metal casing to ensure a long product life. Its fanless design delivers zero added noise in their locations. Having passed an array of stringent reliability tests, TL-SL1311MP delivers switching performance you can depend on. |
Professional High Power 28-Port Gigabit Easy Smart Switch with 24-Port PoE+ Easy to Use, Multi-Purpose PoE Switch with Powerful Performance Multiple Application Scenarios The TL-SG1428PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV. Dedicated 24 PoE+ Ports (250 W Budget) for Numerous Applications Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24× gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc. Easy to Use Value-Added Features Bring Unexpected Experiences QoS for a Lag-Free Experience Ensures smooth traffic for latency-sensitive applications, such as voice and video. IGMP Snooping for Multicast Optimization Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery. VLAN for Security Helps to create a network with higher security and better overall performance by dividing the network into smaller groups. Making Management Easy TL-SG1428PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1428PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS. Multiple Factors Guarantee Stable Operation System Self-Healing with PoE Auto Recovery The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart. Intelligent Power Management to Prevent Power Overload Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 250 W. This protects the device from power overload operation. Great Compatibility with PD Detection Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged. Wide Operating Temperature with Good Heat Dissipation Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability. |

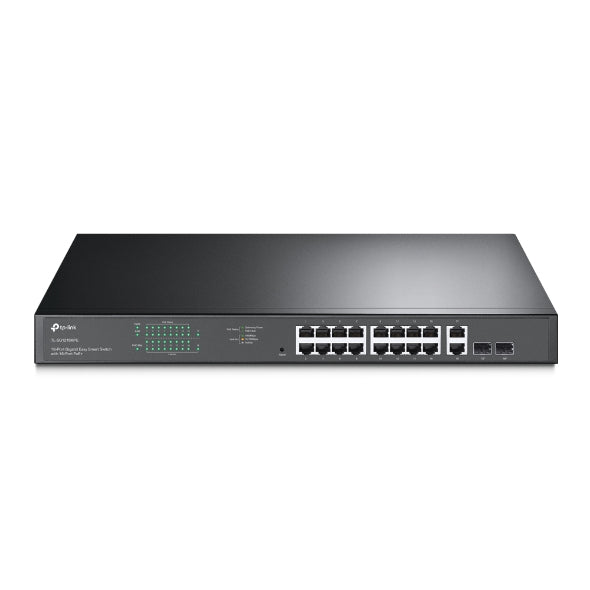

Professional High Power 18-Port Gigabit Easy Smart Switch with 16-Port PoE+ Easy to Use, Multi-Purpose PoE Switch with Powerful Performance Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc. Making Management Easy TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS. Wide Operating Temperature with Good Heat Dissipation Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability. Multiple Application Scenarios The TL-SG1218MPE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV. |
