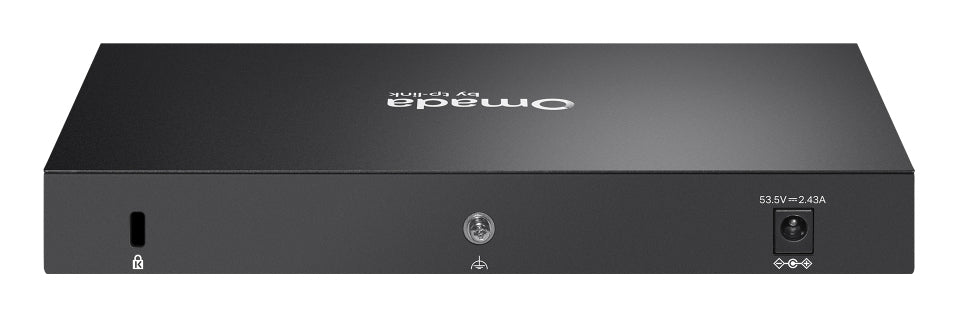

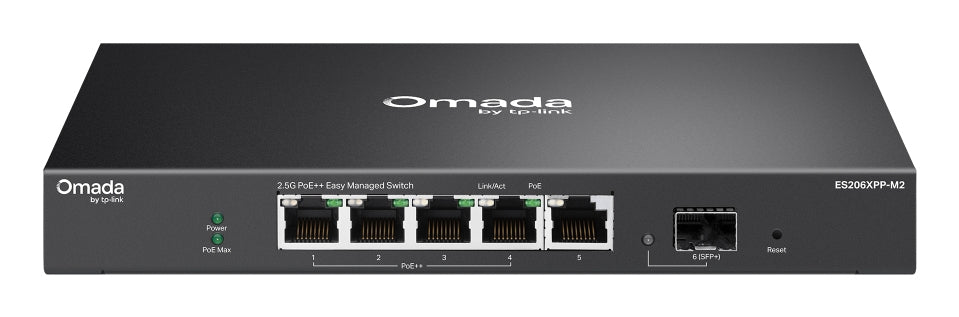

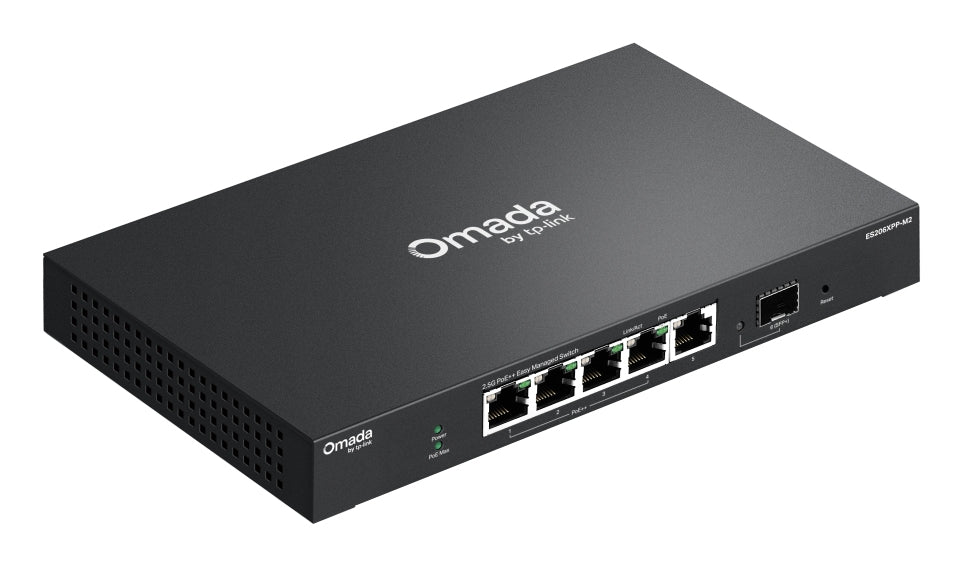

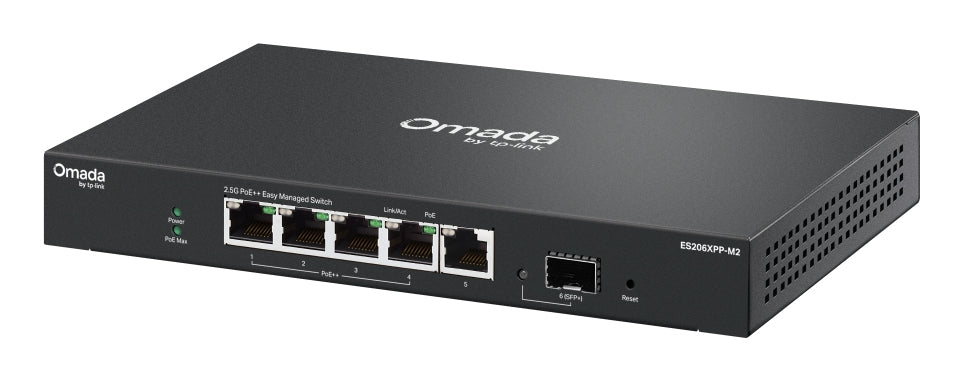

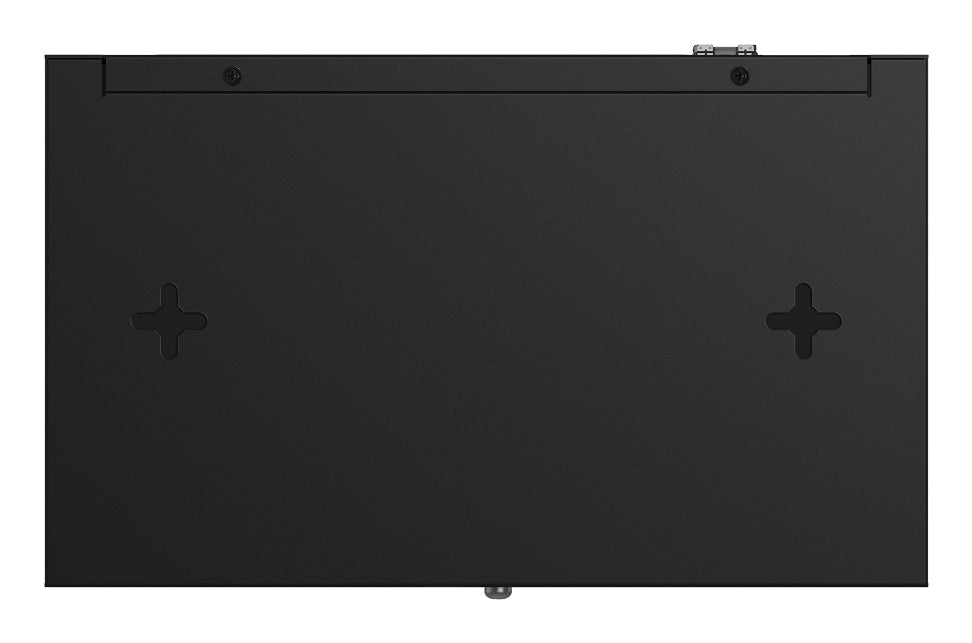

TP-Link ES206XPP-M2 network switch Managed L2 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Desktop/Wall-Mounting Black
Regular price
$269.92
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Hurry up, only 3 items left in stock.
Power over Ethernet, Flexible Network Deployment
Transmit both data and power via a single cable to other PoE++ devices, without the hassle and cost of installing power cabling. Automatically detect and supply the required power to PoE-enabled devices.
Works with Omada Central Essentials for Free and Easy Cloud Management
Omada Central Essentials provides free and easy-to-use centralized cloud management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for small businesses and home office.
Transmit both data and power via a single cable to other PoE++ devices, without the hassle and cost of installing power cabling. Automatically detect and supply the required power to PoE-enabled devices.
Works with Omada Central Essentials for Free and Easy Cloud Management
Omada Central Essentials provides free and easy-to-use centralized cloud management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for small businesses and home office.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Switch type: Managed
- Operating temperature (T-T): -5 - 40 °C
- Operating relative humidity (H-H): 10 - 90%
- Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
- Power over Ethernet (PoE): Yes
- Switching capacity: 45 Gbit/s
- MAC address table: 16000 entries
- 10G support: No
- Storage relative humidity (H-H): 5 - 90%
- LED indicators: Yes
- Quality of Service (QoS) support: Yes
- Flow control support: Yes
- Jumbo frames support: Yes
- Switch layer: L2
- Forwarding rate: 33.48 Mpps
- Jumbo frames: 10
- AC input voltage: 100 - 240 V
Certificates
- Certification
- CE, FCC, RoHS
Data transmission
- Packet buffer memory
- 0.64MB
- Store-and-forward
- Yes
Design
- Form factor
- Desktop/Wall-Mounting
Network
- Broadcast storm control
- Yes
- Link aggregation
- Yes
- Port mirroring
- Yes
- Virtual LAN features
- MTU VLAN, Port-based VLAN
- VLAN support
- Yes
Operational conditions
- Storage temperature (T-T)
- -40 - 70 °C
Performance
- Firmware upgradeable
- Yes
- Flash memory
- 64MB
Ports & interfaces
- SFP+ module slots quantity
- 1
Power
- Power source
- AC/PoE
- Power supply included
- Yes
Power over Ethernet (PoE)
- Power over Ethernet (PoE) power per port
- 90 W
- Power over Ethernet (PoE) type supported
- PoE++ (4PPoE)
- Power over Ethernet 4PPoE (PoE++) ports quantity
- 4
- Total Power over Ethernet (PoE) budget
- 120 W
Security
- DHCP features
- DHCP client
- IGMP snooping
- Yes
Weight & dimensions
- Depth
- 12.6 cm
- Height
- 2.6 cm
- Width
- 20.9 cm
Power supply included
Materials
Compare With Similar Items
|
|
|
|
|
|
|
| Description | Power over Ethernet, Flexible Network Deployment Transmit both data and power via a single cable to other PoE++ devices, without the hassle and cost of installing power cabling. Automatically detect and supply the required power to PoE-enabled devices. Works with Omada Central Essentials for Free and Easy Cloud Management Omada Central Essentials provides free and easy-to-use centralized cloud management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for small businesses and home office. |

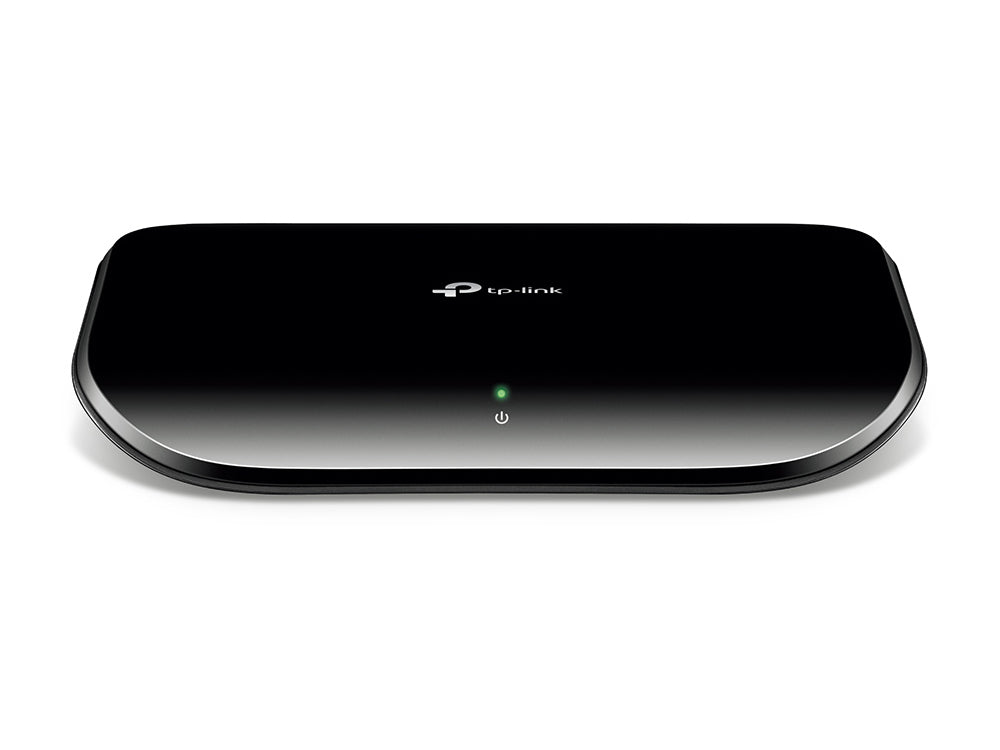

What This Product Does The TP-Link 5-Port Gigabit desktop switch TL-SG1005D provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG1005D adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG1005D can save power consumption, making it an eco-friendly solution for your home or office network. Gigabit Switch Featured with 5 10/100/1000Mbps ports, TL-SG1005D greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly. Go Green With Your Ethernet You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1005D 5-Port Gigabit Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. Power down Idle Ports When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1005D can automatically detect the link status of each port and reduce the power consumption of ports that are idle. Power Budget According to Cable Length Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length. Easy to Use The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. |
