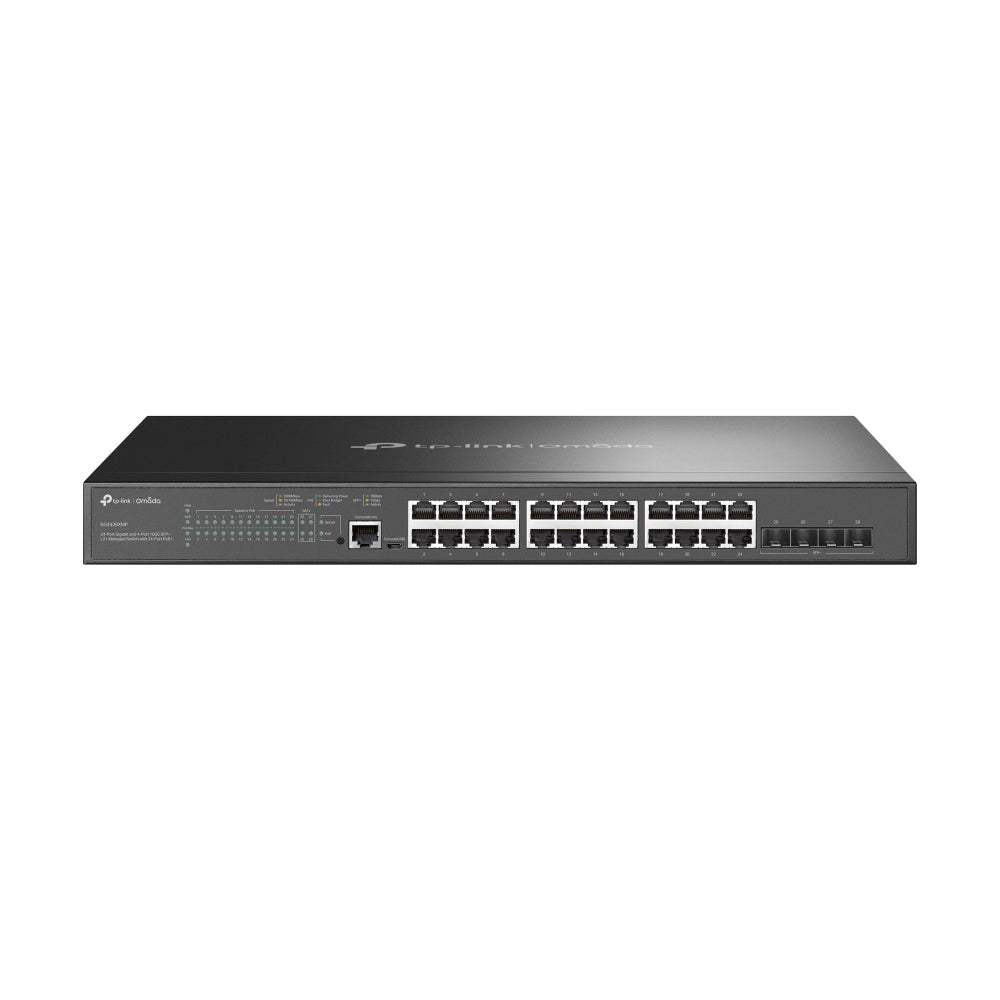

TP-Link Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+
Regular price
$1,083.69
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Available in stock (15)
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Switch type: Managed
- Operating temperature (T-T): 0 - 45 °C
- Operating relative humidity (H-H): 10 - 90%
- Networking standards: IEEE 802.11d, IEEE 802.1s, IEEE 802.1w
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE): Yes
- Switching capacity: 128 Gbit/s
- MAC address table: 16000 entries
- 10G support: Yes
- Storage relative humidity (H-H): 5 - 90%
- LED indicators: Yes
- Quality of Service (QoS) support: Yes
- Rack mounting: Yes
- Flow control support: Yes
- Jumbo frames support: Yes
- Switch layer: L2+
- Forwarding rate: 95.23 Mpps
- Jumbo frames: 9000
Data transmission
- Number of static routes
- 48
- Packet buffer memory
- 12MB
Design
- Form factor
- 1U
- Number of fans
- 2 fan(s)
Management features
- Cloud-managed
- Yes
- MIB support
- Yes
- System event log
- Yes
- Web-based management
- Yes
Multicast features
- Multicast support
- Yes
Network
- Active link detection
- Yes
- Broadcast storm control
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Head-of-line (HOL) blocking
- Yes
- Link aggregation
- Yes
- Number of VLANs
- 4000
- Policy-based routing
- Yes
- Port mirroring
- Yes
- Rate limiting
- Yes
- Spanning tree protocol
- Yes
- Virtual LAN features
- MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
- VLAN support
- Yes
Operational conditions
- Heat dissipation
- 1658.78 BTU/h
- Storage temperature (T-T)
- -40 - 70 °C
Packaging content
- Cables included
- LAN (RJ-45)
- Quick start guide
- Yes
Ports & interfaces
- Console port
- RJ-45/Micro-USB
- Gigabit Ethernet (copper) ports quantity
- 24
- Power connector
- AC-in jack
- SFP+ module slots quantity
- 4
Power
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Power consumption (max)
- 486.2 W
- Power source
- AC
- Power supply included
- Yes
Power over Ethernet (PoE)
- Power over Ethernet plus (PoE+) ports quantity
- 24
- Total Power over Ethernet (PoE) budget
- 384 W
Protocols
- Management protocols
- SNMPv1/v2c/v3, SNTP
Security
- Access Control List (ACL)
- Yes
- BPDU filtering/protection
- Yes
- DHCP features
- DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
- IGMP snooping
- Yes
- IP-MAC-Port binding
- Yes
- Loop protection
- Yes
- SSH/SSL support
- Yes
Weight & dimensions
- Depth
- 33 cm
- Height
- 4.4 cm
- Width
- 44 cm
Cables included: LAN (RJ-45)
Quick start guide
Power supply included
Quick start guide
Power supply included
Materials
