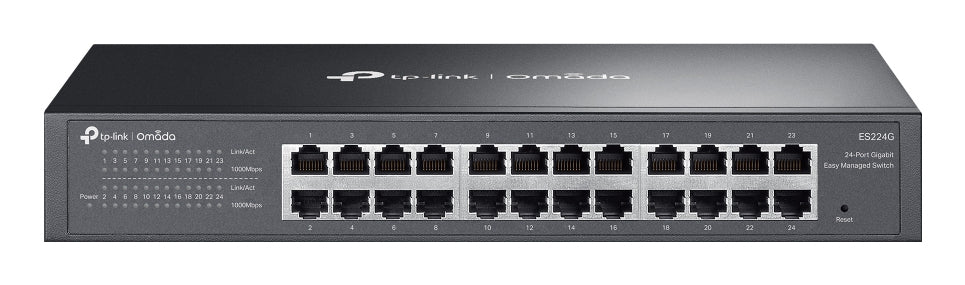

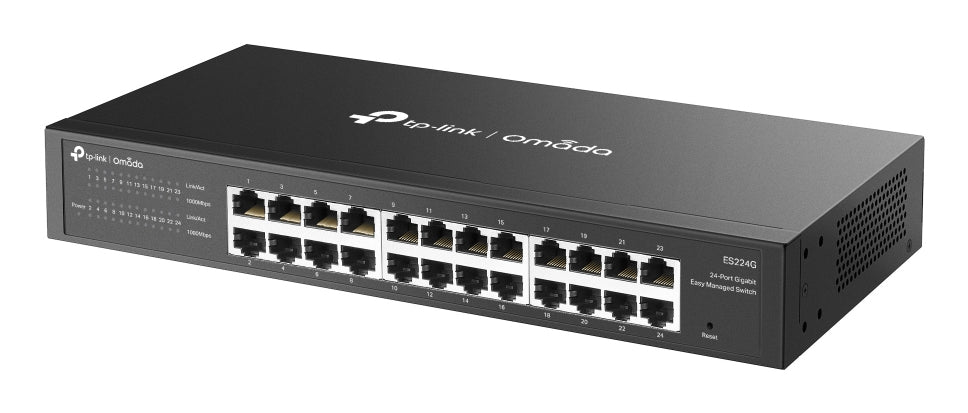

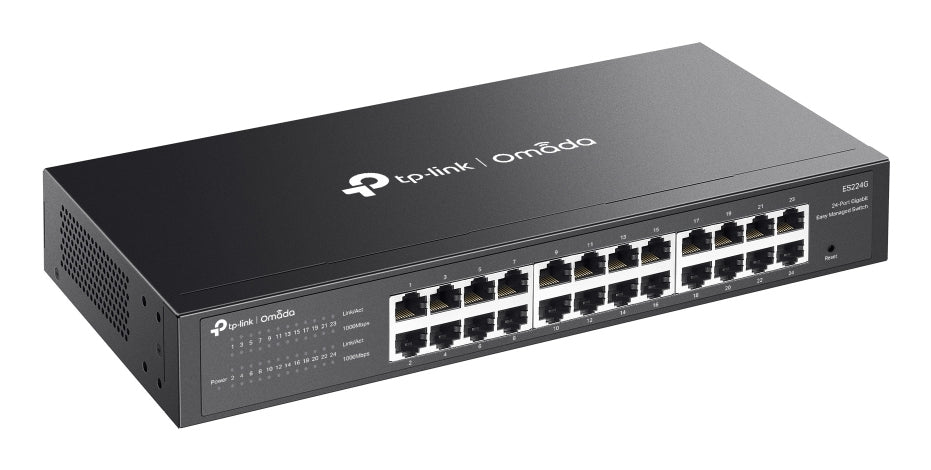

TP-Link Omada ES224G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
Regular price
$201.72
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Hurry up, only 2 items left in stock.
Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Switch type: Managed
- Operating temperature (T-T): -5 - 50 °C
- Operating relative humidity (H-H): 10 - 90%
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Switching capacity: 48 Gbit/s
- MAC address table: 8000 entries
- Storage relative humidity (H-H): 5 - 90%
- Quality of Service (QoS) support: Yes
- Rack mounting: Yes
- Flow control support: Yes
- Jumbo frames support: Yes
- Switch layer: L2
- Forwarding rate: 35.7 Mpps
- Jumbo frames: 15000
- AC input voltage: 100 - 240 V
- IGMP snooping: Yes
- Link aggregation: Yes
- Power supply included: Yes
Certificates
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
Data transmission
- Packet buffer memory
- 4MB
- Store-and-forward
- Yes
Management features
- Cloud-managed
- Yes
- Unified static configuration
- Yes
- Web-based management
- Yes
Multicast features
- Multicast support
- Yes
Network
- Auto-negotiation
- Yes
- Auto MDI/MDI-X
- Yes
- Broadcast storm control
- Yes
- Fast leave
- Yes
- Number of VLANs
- 32
- Port mirroring
- Yes
- Virtual LAN features
- MTU VLAN, Port-based VLAN
- VLAN support
- Yes
Operational conditions
- Storage temperature (T-T)
- -40 - 70 °C
Packaging content
- Cables included
- AC
- Rack mount kit
- No
- User guide
- Yes
Performance
- Fanless
- Yes
- Firmware upgradeable
- Yes
Ports & interfaces
- Gigabit Ethernet (copper) ports quantity
- 24
Power
- AC input frequency
- 50/60 Hz
- Power source
- AC
- Surge protection
- Yes
- Surge protection voltage
- 6 kV
Security
- DHCP features
- DHCP client
- Queue scheduling algorithms
- Weighted Round Robin (WRR)
Weight & dimensions
- Depth
- 14 cm
- Height
- 4.4 cm
- Width
- 29.4 cm
Cables included: AC
