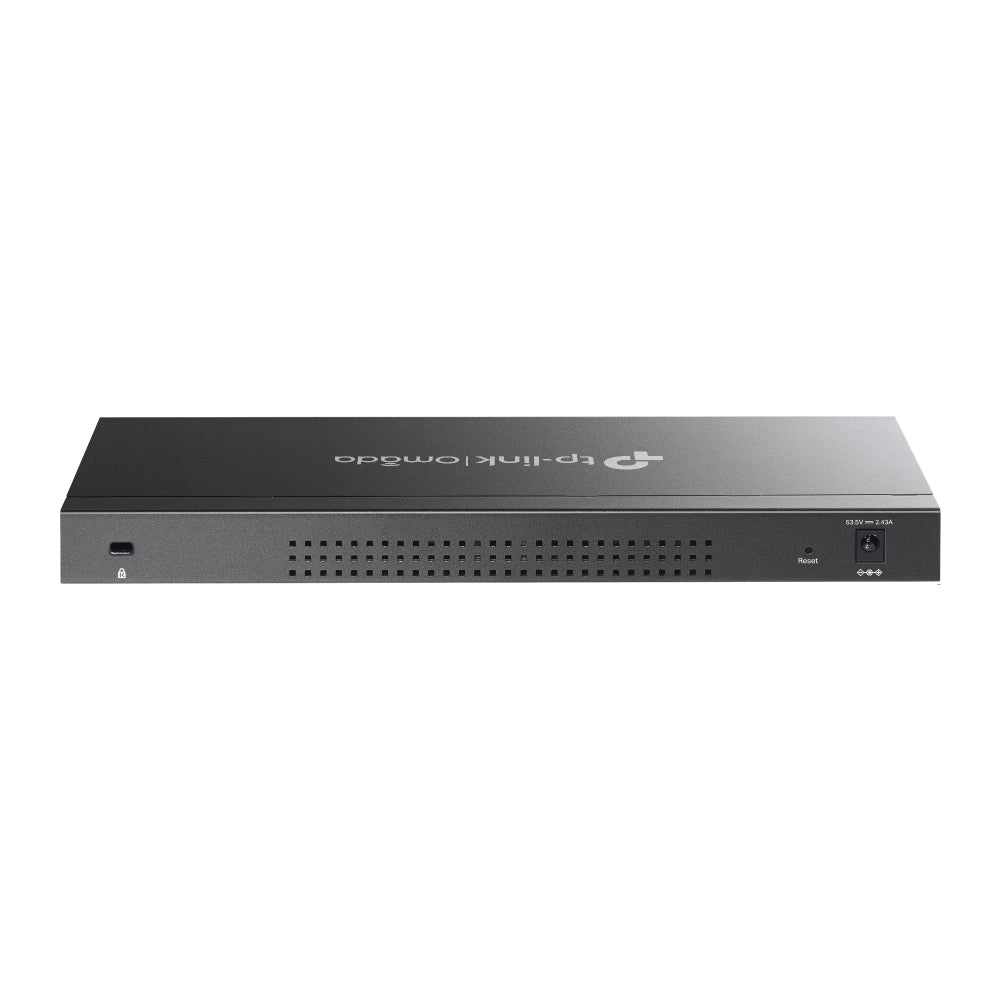

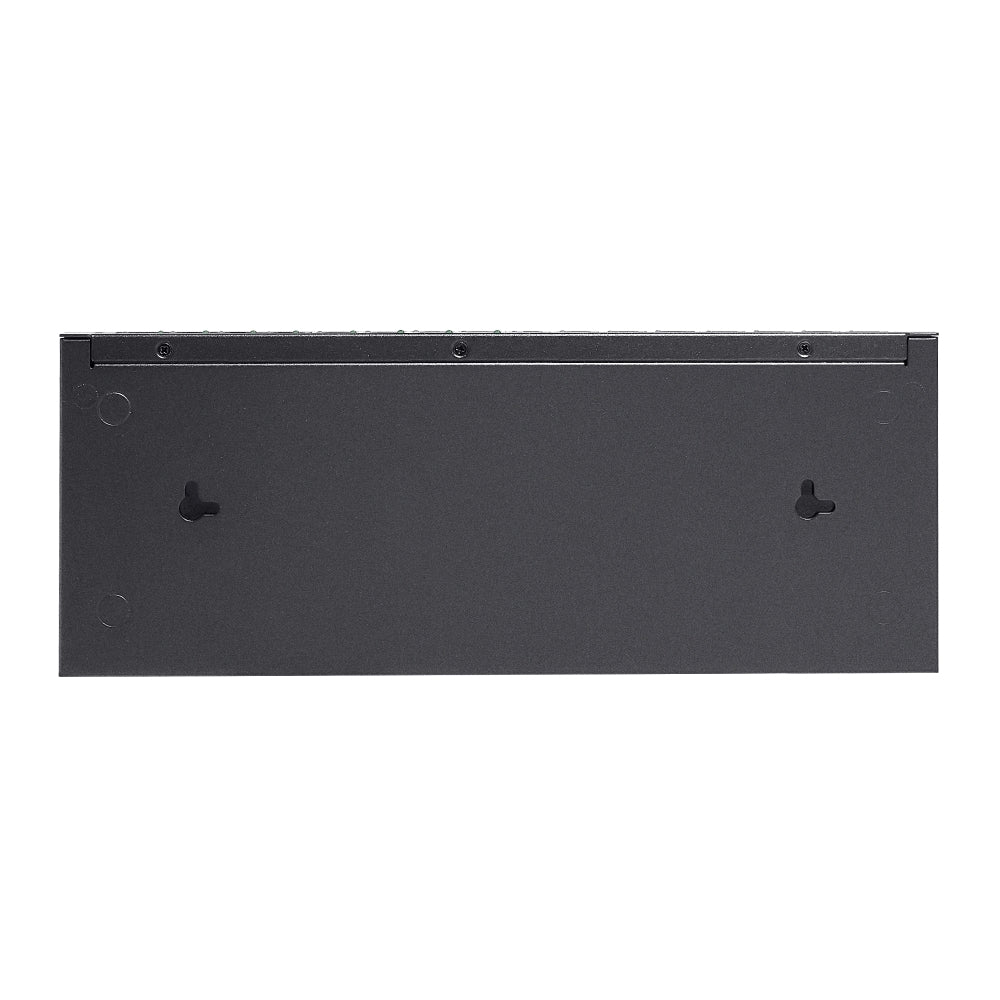

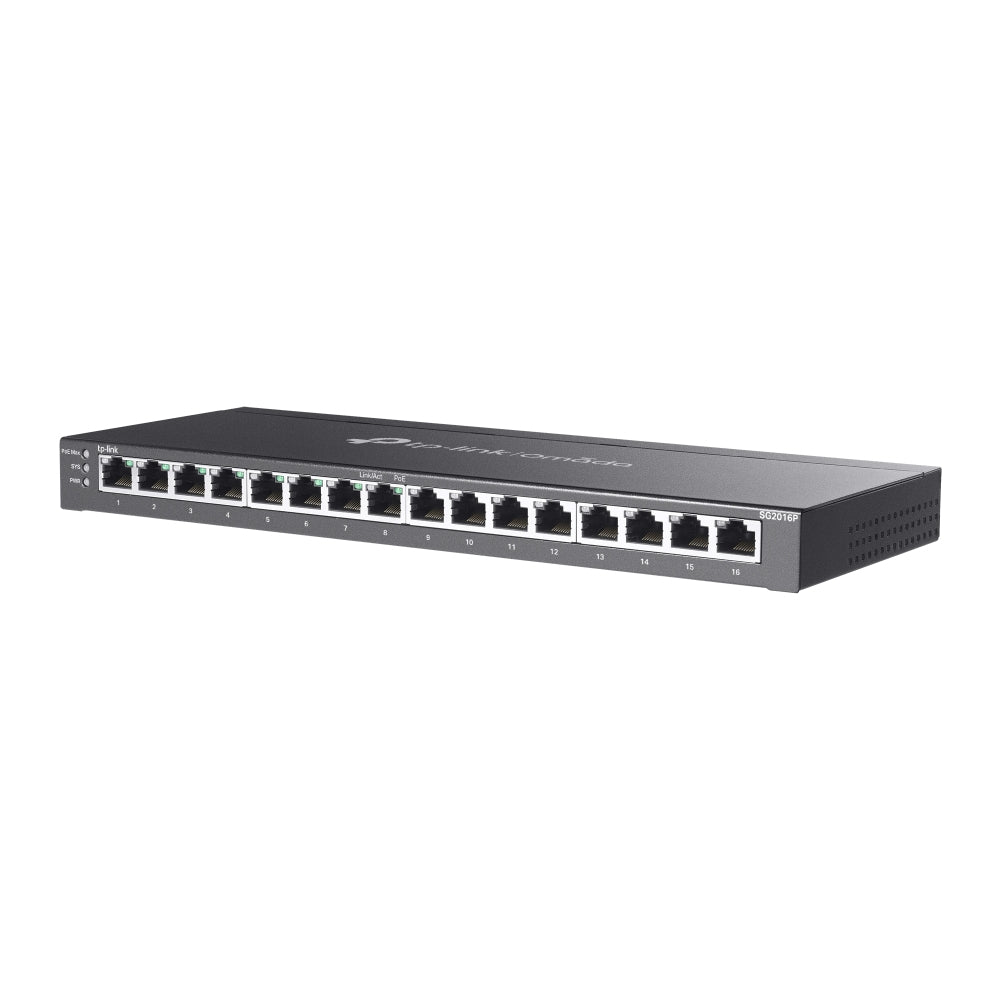

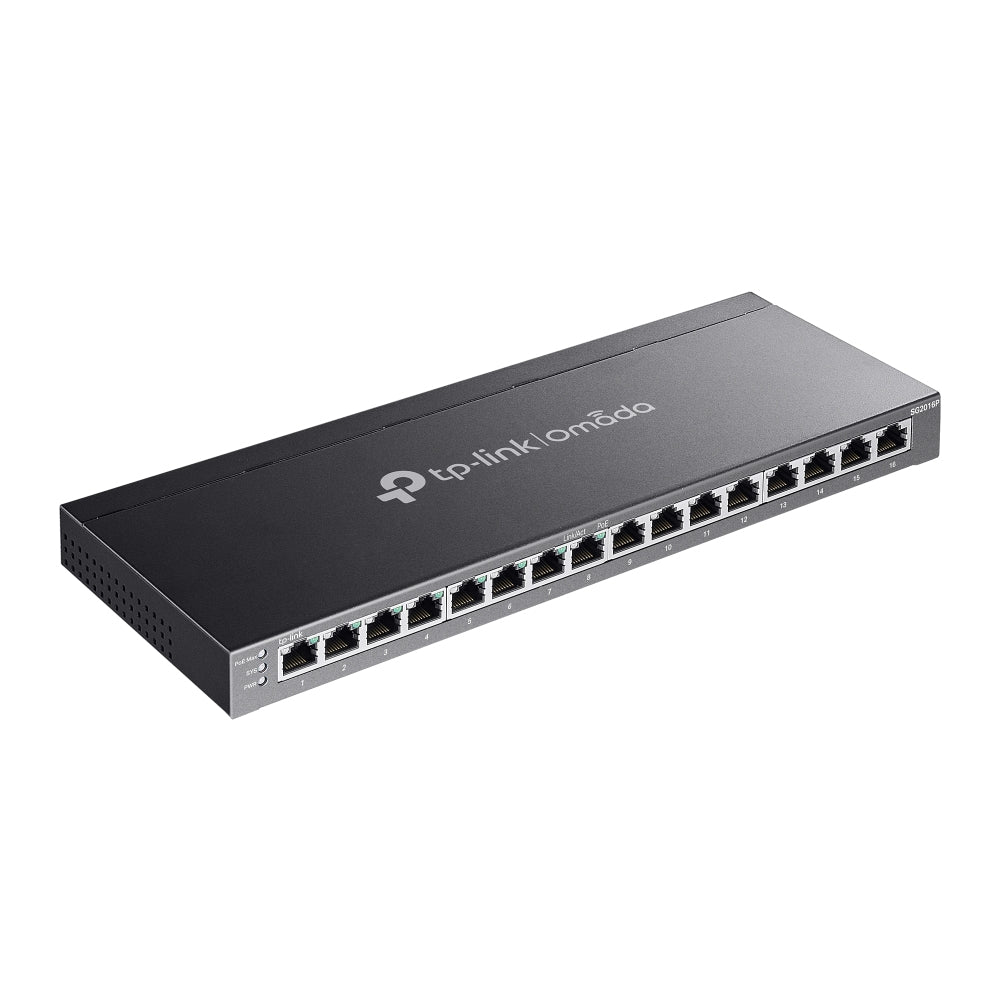

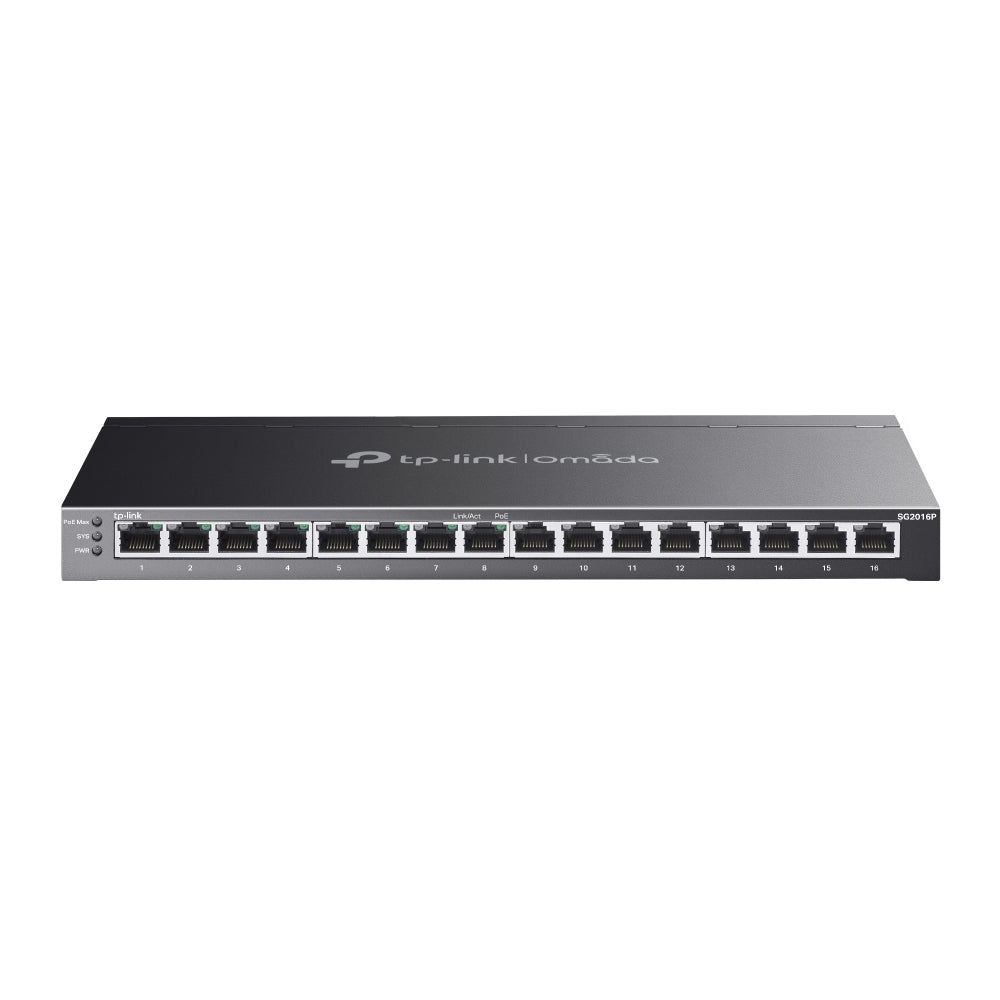

TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+
Regular price
$323.93
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Hurry up, only 5 items left in stock.
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Switch type: Managed
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 10 - 90%
- Networking standards: IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x
- Basic switching RJ-45 Ethernet ports quantity: 16
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE): Yes
- Switching capacity: 32 Gbit/s
- MAC address table: 8000 entries
- 10G support: No
- Storage relative humidity (H-H): 5 - 90%
- LED indicators: PoE, Power, System
- Quality of Service (QoS) support: Yes
- Rack mounting: Yes
- Flow control support: Yes
- Jumbo frames support: Yes
- Switch layer: L2/L2+
- Forwarding rate: 23.81 Mpps
- Jumbo frames: 9000
Certificates
- Certification
- CE, FCC, RoHS
Data transmission
- Number of queues
- 8
- Packet buffer memory
- 4.1MB
Management features
- ARP inspection
- Yes
- Cloud-managed
- Yes
- Configuring Location Settings (CLI)
- Yes
- MIB support
- RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757
- System event log
- Yes
- Web-based management
- Yes
Multicast features
- Multicast Listener Discovery (MLD) snooping
- MLD v1, MLD v2
- Multicast support
- Yes
Network
- Auto-negotiation
- Yes
- Auto MDI/MDI-X
- Yes
- Broadcast storm control
- Yes
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX, 1000BASE-T
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Link aggregation
- Yes
- Number of VLANs
- 4000
- Port mirroring
- Yes
- Rate limiting
- Yes
- Spanning tree protocol
- Yes
- Virtual LAN features
- Multicast VLAN, Tagged VLAN, Voice VLAN
- VLAN support
- Yes
Operational conditions
- Heat dissipation
- 499.98 BTU/h
- Storage temperature (T-T)
- -40 - 70 °C
Packaging content
- Cables included
- AC
- Manual
- Yes
Performance
- Fanless
- Yes
- Firmware upgradeable
- Yes
Ports & interfaces
- Power connector
- DC-in jack
Power
- DC input voltage
- 53.5 V
- Power consumption (max)
- 146.5 W
- Power source
- DC/PoE
Power over Ethernet (PoE)
- Power over Ethernet plus (PoE+) ports quantity
- 8
- Total Power over Ethernet (PoE) budget
- 120 W
Protocols
- GARP VLAN Registration Protocol (GVRP)
- Yes
- IPv4 & IPv6 features
- Dual stack IPv4/IPv6
- Supported network protocols
- ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2
Security
- Access Control List (ACL)
- Yes
- Authentication
- Guest VLAN, MAC-based authentication, Port-based authentication
- BPDU filtering/protection
- Yes
- DHCP features
- DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 snooping
- IGMP snooping
- Yes
- IP-MAC-Port binding
- Yes
- MAC address entries
- Dynamic MAC address entries, Static MAC address entries
- MAC address filtering
- Yes
- Queue scheduling algorithms
- SP, Weighted Round Robin (WRR)
- Security algorithms
- EAP-MD5, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS
- SSH/SSL support
- Yes
Weight & dimensions
- Depth
- 11.17 cm
- Height
- 2.54 cm
- Width
- 28.6 cm
Cables included: AC
Manual
Manual
Materials
