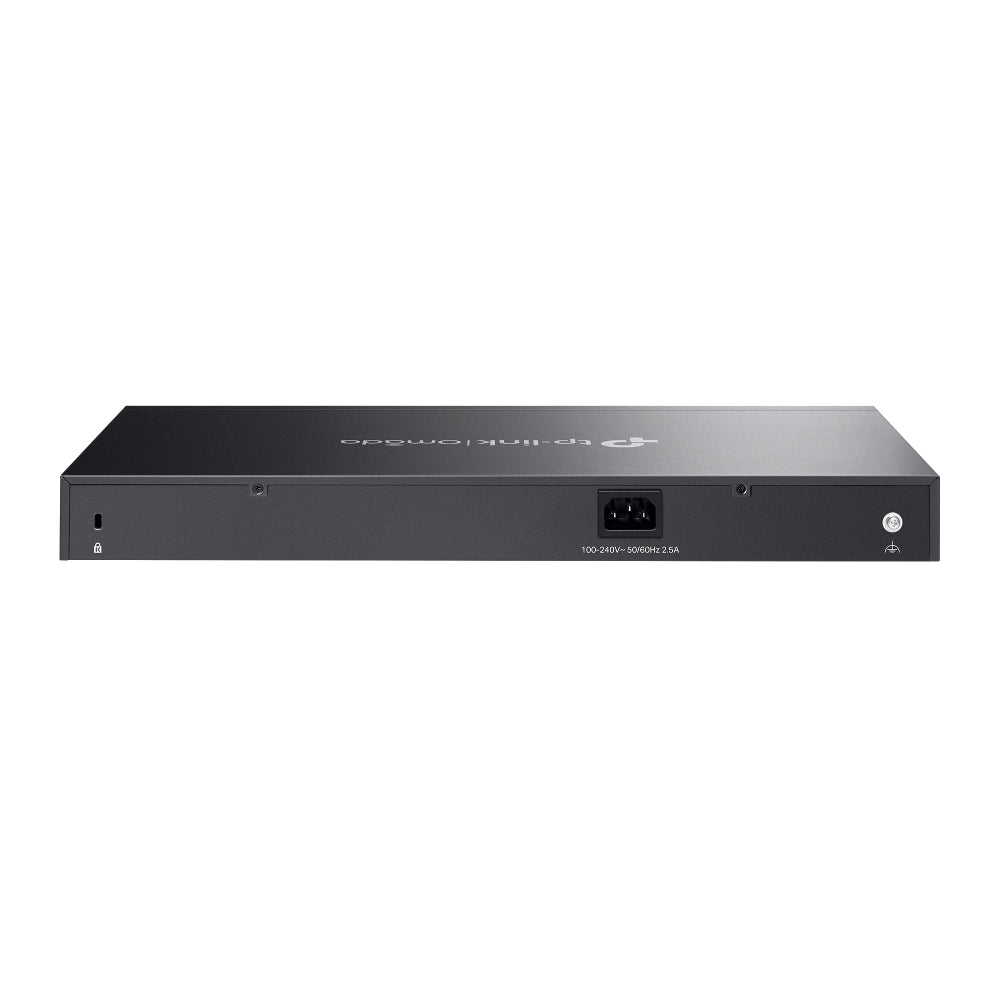

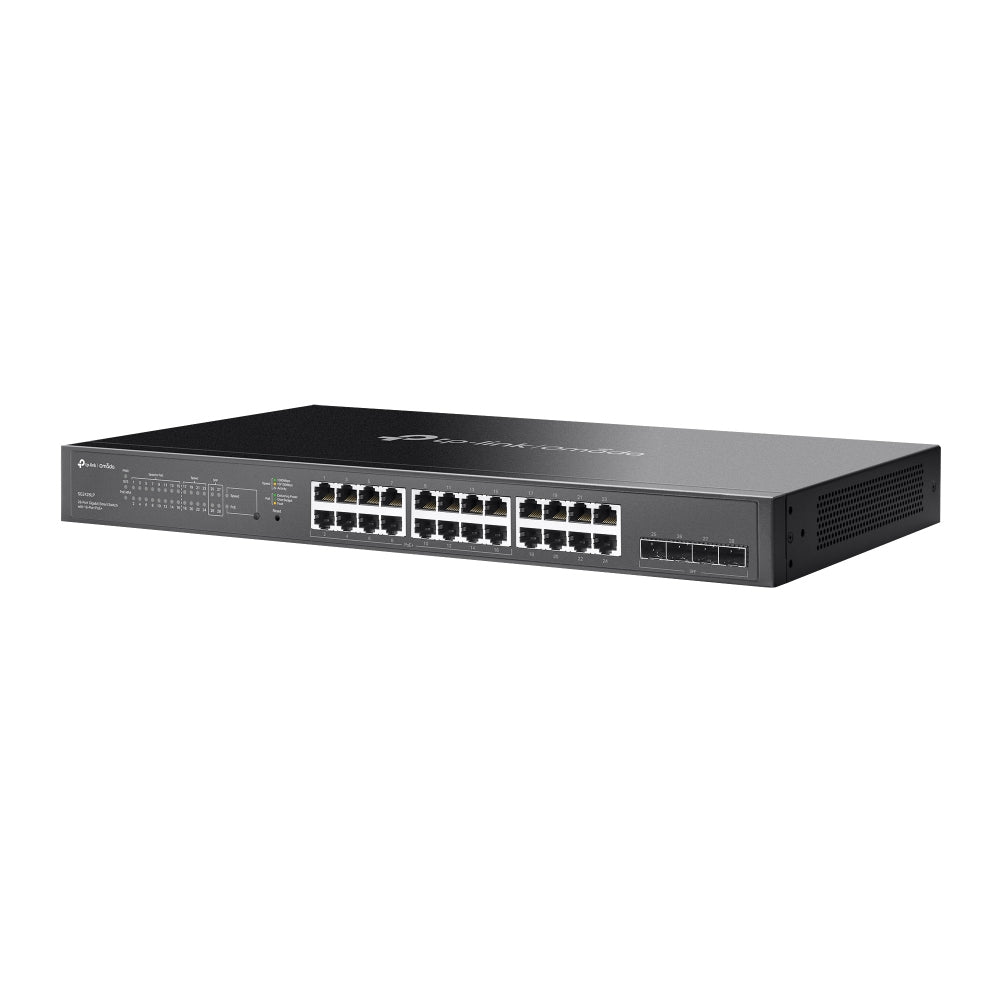

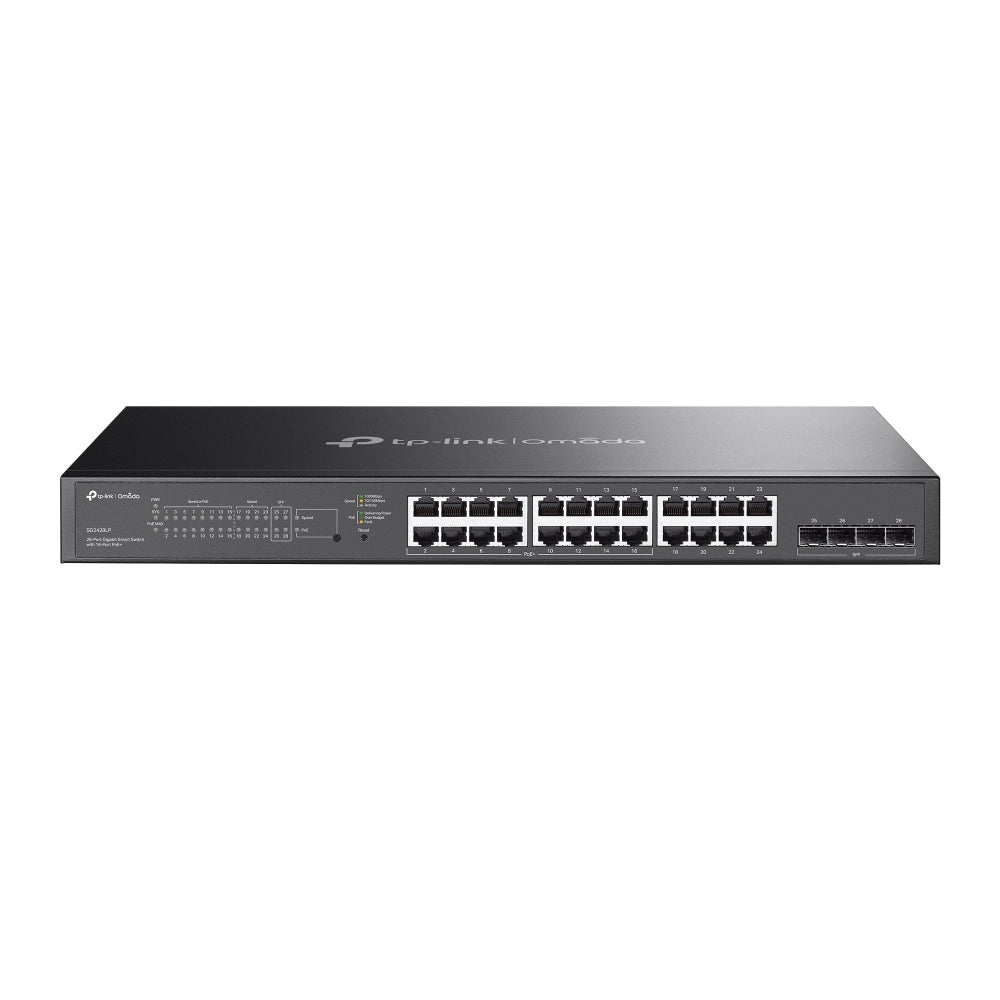

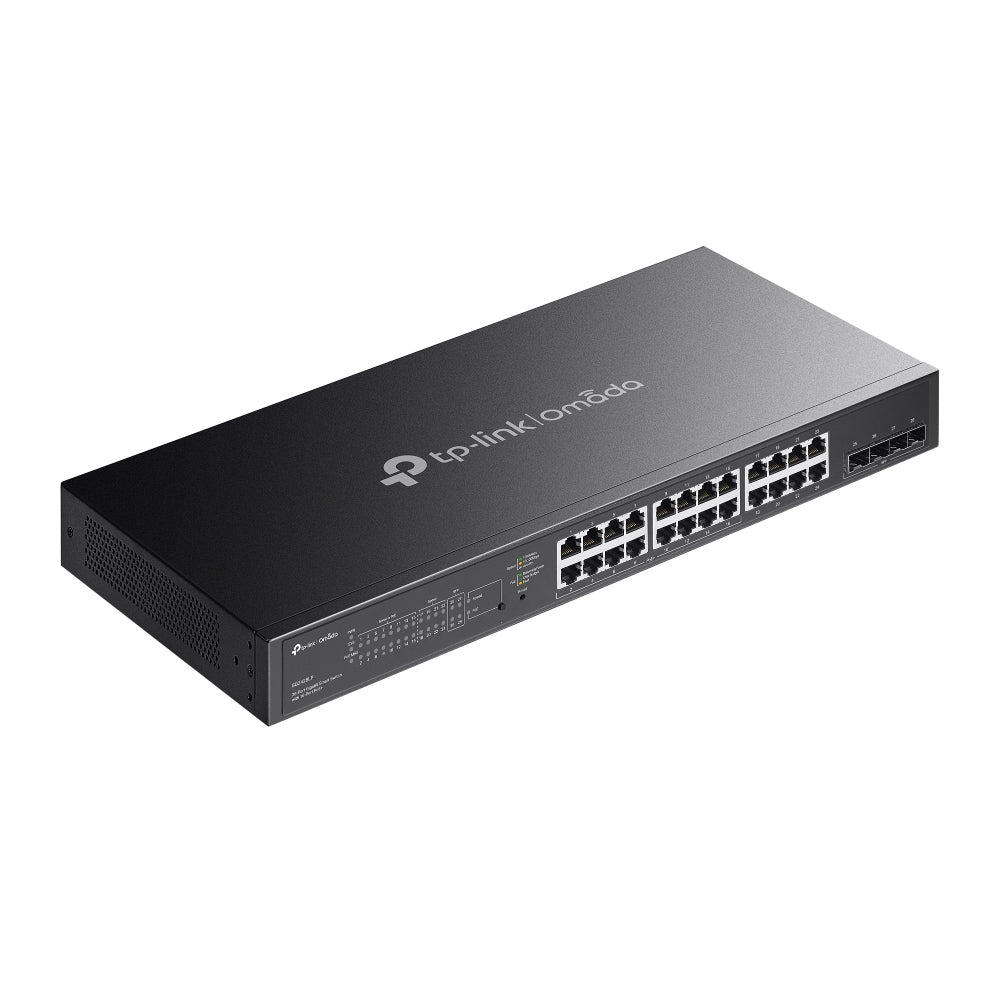

TP-Link Omada 28-Port Gigabit Smart Switch with 16-Port PoE+
Regular price
$476.17
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Hurry up, only 8 items left in stock.
- 24× Gigabit Ports (16× PoE+), 4× Gigabit SFP Slots
- 150 W Total PoE Budget
- Fanless Design for Silent Operation
- Zero-Touch Provisioning
- Centralized Management
- Omada App
- Static Routing
- Traffic Separation
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
- 150 W Total PoE Budget
- Fanless Design for Silent Operation
- Zero-Touch Provisioning
- Centralized Management
- Omada App
- Static Routing
- Traffic Separation
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Grey
- Switch type: Managed
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 10 - 90%
- Networking standards: IEEE 802.3af, IEEE 802.3at
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE): Yes
- Switching capacity: 56 Gbit/s
- MAC address table: 8000 entries
- 10G support: No
- Storage relative humidity (H-H): 5 - 90%
- LED indicators: Yes
- Quality of Service (QoS) support: Yes
- Rack mounting: Yes
- Flow control support: Yes
- Jumbo frames support: Yes
- Switch layer: L2/L2+
- Forwarding rate: 41.66 Mpps
- Jumbo frames: 9000
Data transmission
- Packet buffer memory
- 4.1MB
Management features
- ARP inspection
- Yes
- Cloud-managed
- Yes
- Web-based management
- Yes
Multicast features
- Multicast support
- Yes
Network
- Auto-negotiation
- Yes
- Link aggregation
- Yes
- Number of VLANs
- 4000
- Spanning tree protocol
- Yes
- Virtual LAN features
- MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
- VLAN support
- Yes
Operational conditions
- Heat dissipation
- 628 BTU/h
- Storage temperature (T-T)
- -40 - 70 °C
Performance
- Fanless
- Yes
Ports & interfaces
- SFP module slots quantity
- 4
Power
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Power consumption (max)
- 184.7 W
- Power source
- AC/PoE
Power over Ethernet (PoE)
- Power over Ethernet (PoE) power per port
- 30 W
- Power over Ethernet plus (PoE+) ports quantity
- 16
- Total Power over Ethernet (PoE) budget
- 150 W
Security
- Access Control List (ACL)
- Yes
- DHCP features
- DHCP relay, DHCP server
- IGMP snooping
- Yes
- MAC address filtering
- Yes
- Password protection
- Yes
Weight & dimensions
- Depth
- 22 cm
- Height
- 4.4 cm
- Width
- 44 cm
Materials
