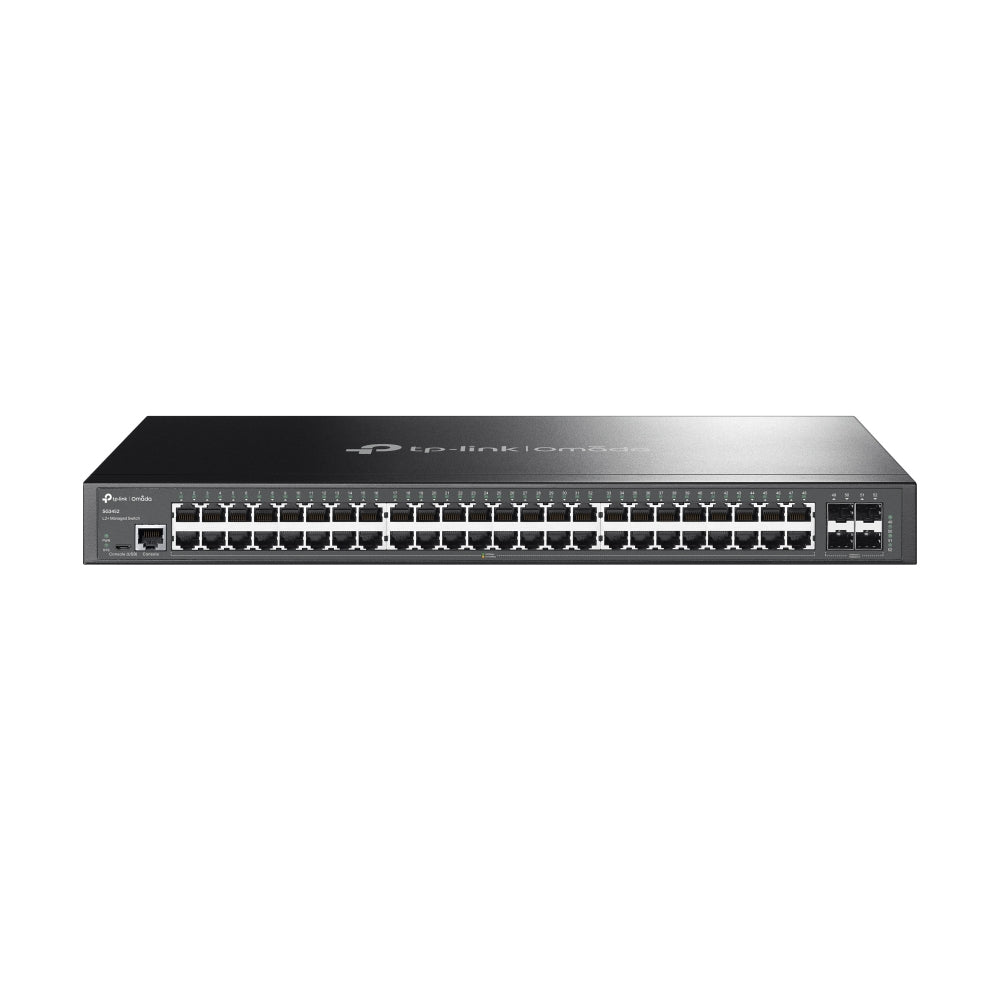

TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 SFP Slots
Regular price
$837.10
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Internal memory: 256MB
- Product colour: Black
- Switch type: Managed
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 10 - 90%
- Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
- Basic switching RJ-45 Ethernet ports quantity: 48
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE): No
- Switching capacity: 104 Gbit/s
- MAC address table: 16000 entries
- 10G support: No
- Storage relative humidity (H-H): 5 - 90%
- Quality of Service (QoS) support: Yes
- Rack mounting: Yes
- Flow control support: Yes
- Jumbo frames support: Yes
- Switch layer: L2+
- Forwarding rate: 77.38 Mpps
- Jumbo frames: 9000
Certificates
- Certification
- CE, FCC, RoHS
Data transmission
- Static route
- Yes
- Store-and-forward
- Yes
Design
- Form factor
- 1U
Management features
- ARP inspection
- Yes
- Cloud-managed
- Yes
- Configuring Location Settings (CLI)
- Yes
- MIB support
- Yes
- System event log
- Yes
- Web-based management
- Yes
Multicast features
- Multicast Listener Discovery (MLD) snooping
- Yes
- Multicast support
- Yes
Network
- Broadcast storm control
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Head-of-line (HOL) blocking
- Yes
- IP routing
- Yes
- IPv4 routes
- 48
- IPv6 routes
- 48
- Link aggregation
- Yes
- Number of VLANs
- 4000
- Policy-based routing
- Yes
- Port mirroring
- Yes
- Spanning tree protocol
- Yes
- Virtual LAN features
- Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
- VLAN support
- Yes
Operational conditions
- Heat dissipation
- 118.94 BTU/h
- Storage temperature (T-T)
- -40 - 70 °C
Packaging content
- Cables included
- AC
- Quick start guide
- Yes
- Rack mount kit
- Yes
Performance
- Fanless
- Yes
- Flash memory
- 32MB
Ports & interfaces
- Console port
- RJ-45/Micro-USB
- Gigabit Ethernet (copper) ports quantity
- 48
- SFP module slots quantity
- 4
Power
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Power consumption (max)
- 34.86 W
- Power source
- AC
- Power supply included
- Yes
Protocols
- GARP VLAN Registration Protocol (GVRP)
- Yes
- IPv4 & IPv6 features
- IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
- Management protocols
- SNMPv1/v2c/v3, SNTP
Security
- Access Control List (ACL)
- Yes
- Authentication
- MAC-based authentication, Port-based authentication
- Authentication type
- AAA, RADIUS, TACACS+
- BPDU filtering/protection
- Yes
- DHCP features
- DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping
- IGMP snooping
- Yes
- IP-MAC-Port binding
- Yes
- Loop protection
- Yes
- MAC address filtering
- Yes
- SSH/SSL support
- Yes
Weight & dimensions
- Depth
- 22 cm
- Height
- 4.4 cm
- Width
- 44 cm
Cables included: AC
Quick start guide
Power supply included
Quick start guide
Power supply included
