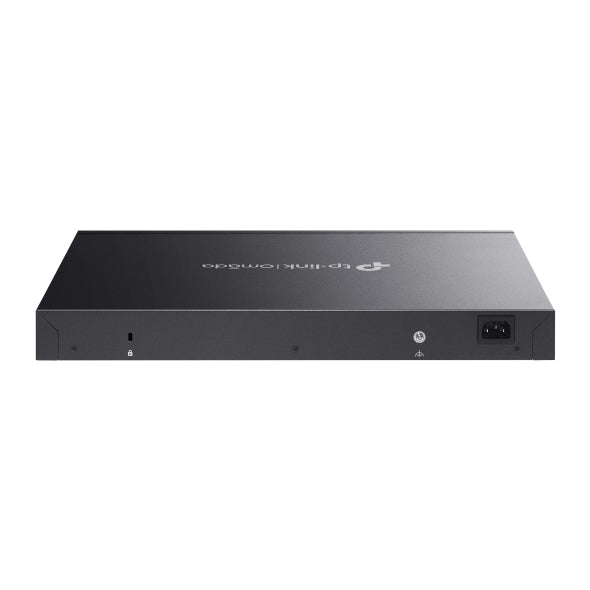

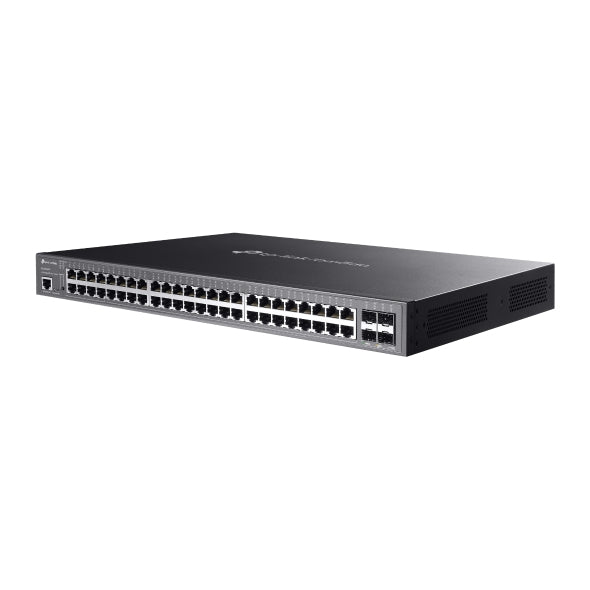

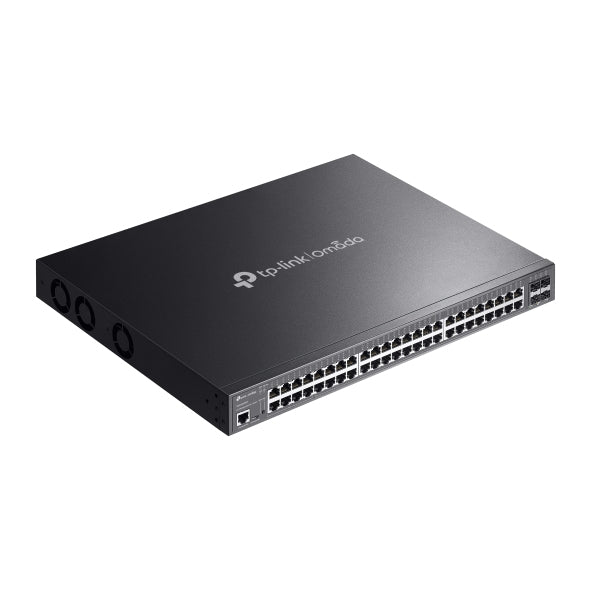

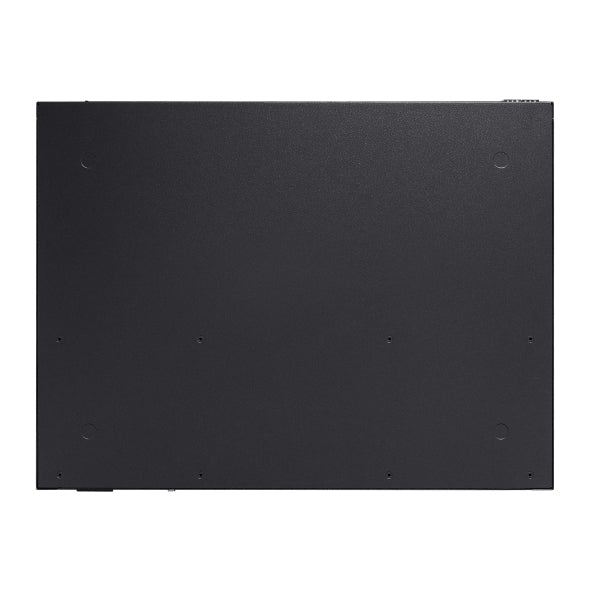

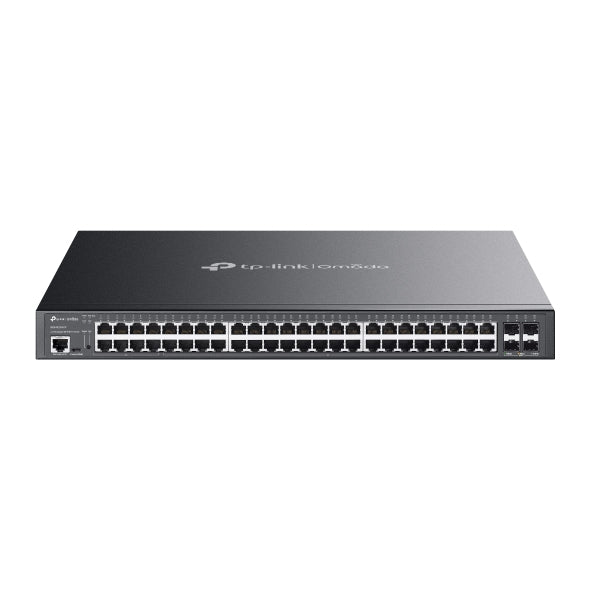

TP-Link Omada SG3452XMPP network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Regular price
$1,971.32
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Hurry up, only 6 items left in stock.
TP-Link Omada SG3452XMPP. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45/Micro-USB. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Switch type: Managed
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 10 - 90%
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
- Basic switching RJ-45 Ethernet ports quantity: 48
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE): Yes
- Switching capacity: 176 Gbit/s
- MAC address table: 16000 entries
- 10G support: Yes
- Storage relative humidity (H-H): 5 - 90%
- LED indicators: Yes
- Quality of Service (QoS) support: Yes
- Rack mounting: Yes
- Flow control support: Yes
- Jumbo frames support: Yes
- Switch layer: L2+
- Forwarding rate: 130.9 Mpps
- Jumbo frames: 9000
Certificates
- Certification
- CE, FCC, RoHS
Data transmission
- Packet buffer memory
- 12MB
- Store-and-forward
- Yes
Design
- Form factor
- 1U
- Number of fans
- 3 fan(s)
- Reset button
- Yes
Management features
- ARP inspection
- Yes
- Cloud-managed
- Yes
- Configuring Location Settings (CLI)
- Yes
- System event log
- Yes
- Web-based management
- Yes
Multicast features
- Multicast support
- Yes
Network
- Broadcast storm control
- Yes
- Head-of-line (HOL) blocking
- Yes
- Link aggregation
- Yes
- Port mirroring
- Yes
- Rate limiting
- Yes
- Spanning tree protocol
- Yes
- VLAN support
- Yes
Operational conditions
- Heat dissipation
- 2169.2 BTU/h
- Storage temperature (T-T)
- -40 - 70 °C
Packaging content
- Cables included
- AC
- Quick start guide
- Yes
Ports & interfaces
- Console port
- RJ-45/Micro-USB
- Power connector
- AC-in jack
- SFP+ module slots quantity
- 4
Power
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Power consumption (max)
- 635.7 W
- Power source
- AC
- Power supply included
- Yes
Power over Ethernet (PoE)
- Power over Ethernet (PoE) power per port
- 30 W
- Power over Ethernet 4PPoE (PoE++) ports quantity
- 8
- Power over Ethernet plus (PoE+) ports quantity
- 40
- Total Power over Ethernet (PoE) budget
- 750 W
Security
- Access Control List (ACL)
- Yes
- Authentication
- Auto VLAN, Guest VLAN
- BPDU filtering/protection
- Yes
- DHCP features
- DHCP client, DHCP relay, DHCP server
- IGMP snooping
- Yes
- IP-MAC-Port binding
- Yes
- MAC address filtering
- Yes
- SSH/SSL support
- Yes
- Static port security
- Yes
Weight & dimensions
- Depth
- 33 cm
- Height
- 4.4 cm
- Width
- 44 cm
Cables included: AC
Quick start guide
Power supply included
Quick start guide
Power supply included
Materials
