TP-Link Omada SG5452X network switch Managed L3 Gigabit Ethernet (10/100/1000) Black
Regular price
$1,675.49
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
What This Product Does

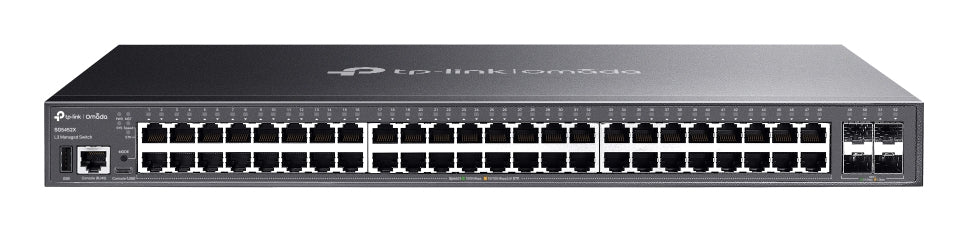

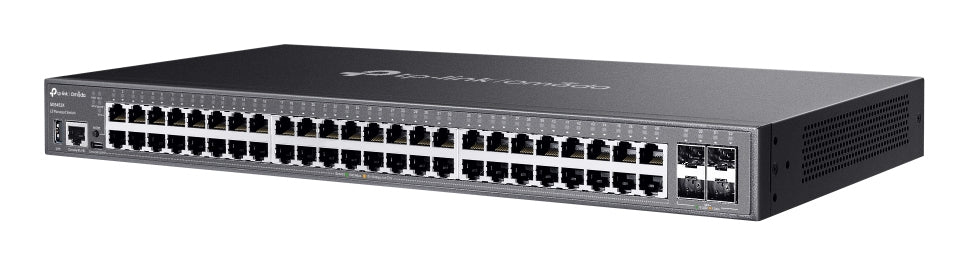

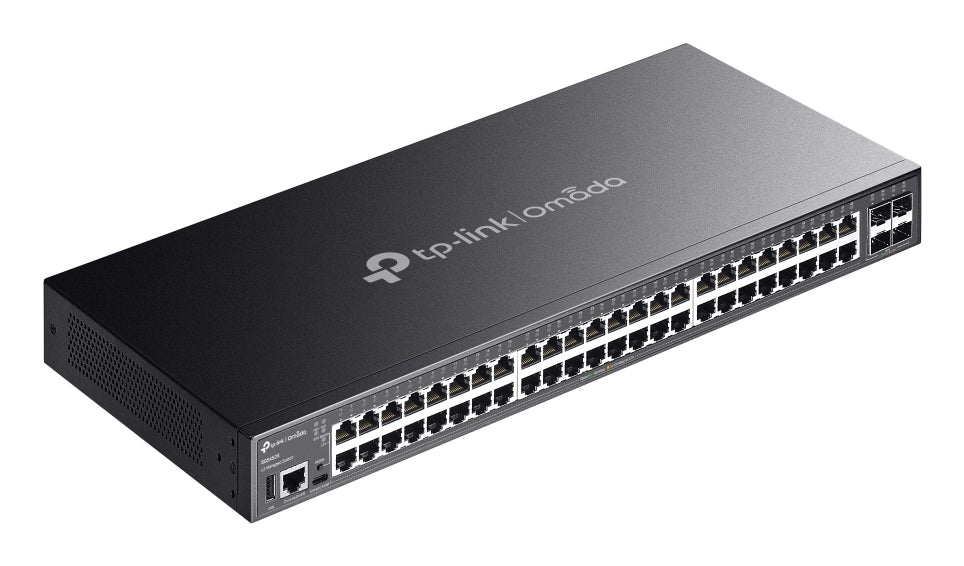

Omada SG5452X is a dependable entry-level L3 switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It includes 48× gigabit RJ45 ports, 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5452X offers a reliable networking solution for SMEs, and ISPs.
High-speed Connectivity and Powerful Stacking
48× gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 176 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.
Highly Available
ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium business environments.
Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management—all controlled from a single interface.
Apart from the ability to be centrally managed via the web or the Omada app, SG5452X is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
Omada SG5452X is a dependable entry-level L3 switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It includes 48× gigabit RJ45 ports, 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5452X offers a reliable networking solution for SMEs, and ISPs.
High-speed Connectivity and Powerful Stacking
48× gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 176 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.
Highly Available
ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium business environments.
Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management—all controlled from a single interface.
Apart from the ability to be centrally managed via the web or the Omada app, SG5452X is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Internal memory: 1.95GB
- Product colour: Black
- Switch type: Managed
- Operating temperature (T-T): -5 - 45 °C
- Operating relative humidity (H-H): 10 - 90%
- Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
- Basic switching RJ-45 Ethernet ports quantity: 48
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE): No
- Switching capacity: 176 Gbit/s
- MAC address table: 16000 entries
- 10G support: Yes
- Storage relative humidity (H-H): 5 - 90%
- LED indicators: Yes
- Quality of Service (QoS) support: Yes
- Rack mounting: Yes
- Jumbo frames support: Yes
- Switch layer: L3
- Forwarding rate: 130.94 Mpps
- Jumbo frames: 9000
Certificates
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
Data transmission
- Packet buffer memory
- 12MB
- Store-and-forward
- Yes
Design
- Stackable
- Yes
Management features
- ARP inspection
- Yes
- Cloud-managed
- Yes
- Web-based management
- Yes
Multicast features
- Multicast support
- Yes
Network
- Broadcast storm control
- Yes
- Link aggregation
- Yes
- Number of VLANs
- 4000
- Port mirroring
- Yes
- Virtual LAN features
- MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
- VLAN support
- Yes
Operational conditions
- Heat dissipation
- 116.42 BTU/h
- Storage temperature (T-T)
- -40 - 70 °C
Other features
- Bandwidth
- 88 Gbit/s
- Management level
- 4
Packaging content
- Cables included
- AC
- Quick start guide
- Yes
- Rack mount kit
- Yes
Performance
- Built-in processor
- Yes
- Fanless
- Yes
- Firmware upgradeable
- Yes
- Flash memory
- 512MB
- Mean time between failures (MTBF)
- 211.644 h
- Memory type
- DRAM
- Physical stacking (units)
- 4
- Processor frequency
- 1200 MHz
- Processor manufacturer
- ARM
- Telnet
- Yes
Ports & interfaces
- Console port
- RJ-45
- Gigabit Ethernet (copper) ports quantity
- 48
- SFP+ module slots quantity
- 4
- USB 2.0 ports quantity
- 1
- USB Type-C ports quantity
- 1
Power
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Power consumption (max)
- 34.1 W
- Power source
- AC
- Power supply included
- Yes
- Surge protection
- Yes
- Surge protection voltage
- 6 kV
Security
- Access Control List (ACL)
- Yes
- DHCP features
- DHCP relay, DHCP server
- IGMP snooping
- Yes
- IP-MAC-Port binding
- Yes
- MAC address filtering
- Yes
- Password protection
- Yes
- Security algorithms
- SNMP, SNMPv2, SNMPv3
- SSH/SSL support
- Yes
- Static port security
- Yes
Weight & dimensions
- Depth
- 22 cm
- Height
- 4.4 cm
- Width
- 44 cm
Cables included: AC
Quick start guide
Power supply included
Quick start guide
Power supply included
Materials
