Sold out

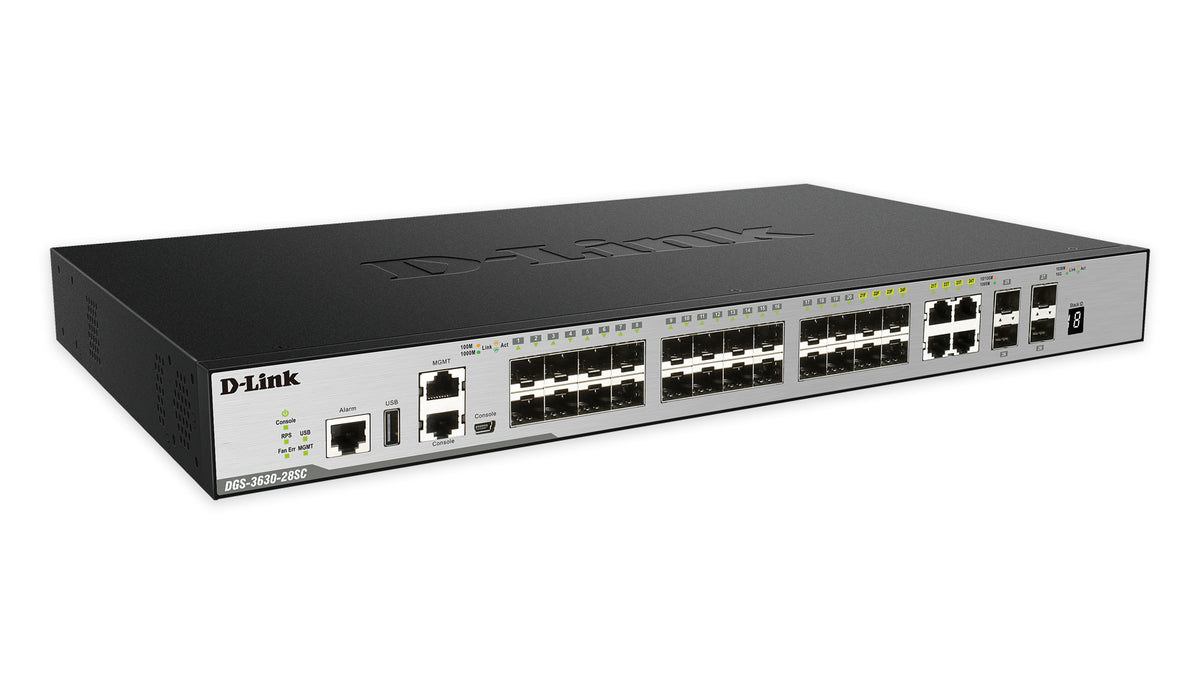

D-Link DGS-3630-28SC network switch Managed L3 1U Black
Regular price
$4,682.56
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
The DGS-3630-28SC Layer 3 Stackable Managed Switch is designed for Small Medium Businesses (SMBs), Small Medium Enterprises (SMEs), larger Enterprises, and ISPs. It features 20 x 100/1000 SFP ports, 4 x 10/100/1000 or SFP combo ports, and 4 x 10GbE SFP+ ports. This switch supports core SMB and SME functionality, such as L2 switching, entry-level routing, L2 multicast, advanced QoS, OAM, and robust security features. With a simple upgrade it can also support full L3 routing for Enterprise integration, including OSPF, BGP, VRF-Lite and L3 multicast.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Switch type: Managed
- Operating temperature (T-T): -5 - 50 °C
- Operating relative humidity (H-H): 10 - 95%
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Power over Ethernet (PoE): No
- Switching capacity: 128 Gbit/s
- MAC address table: 68000 entries
- 10G support: Yes
- Storage relative humidity (H-H): 5 - 95%
- LED indicators: Yes
- Quality of Service (QoS) support: Yes
- Rack mounting: Yes
- Flow control support: Yes
- Jumbo frames support: Yes
- Switch layer: L3
- Jumbo frames: 12000
- AC input voltage: 100 - 240 V
- IGMP snooping: Yes
- Link aggregation: Yes
Data transmission
- Number of IP interfaces
- 256
- Number of queues
- 8
- Packet buffer memory
- 4MB
- Throughput
- 95.24 Mpps
Design
- Electromagnetic compatibility
- CE, FCC Class A, C-Tick, VCCI, BSMI, CCC
- Form factor
- 1U
- Number of fans
- 2 fan(s)
- Safety
- cUL, CB, CE, CCC, BSM
- Stackable
- Yes
Management features
- ARP inspection
- Yes
- System event log
- Yes
- Traffic classification
- Yes
- Web-based management
- Yes
Multicast features
- Multicast support
- Yes
Network
- Broadcast storm control
- Yes
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX, 1000BASE-T
- Full duplex
- Yes
- Number of VLANs
- 4094
- Port mirroring
- Yes
- Routing entries
- 16000
- Spanning tree protocol
- Yes
- Virtual LAN features
- Stacked VLAN, Private VLAN, Tagged VLAN, Port-based VLAN
- VLAN support
- Yes
Operational conditions
- Heat dissipation
- 217 BTU/h
- Storage temperature (T-T)
- -40 - 70 °C
Performance
- Mean time between failures (MTBF)
- 280612 h
- Noise level
- 56 dB
- Virtual stacking (units)
- 32
Ports & interfaces
- Combo SFP ports quantity
- 4
- Console port
- RJ-45/Mini-USB
- Installed SFP+ modules quantity
- 4
- Installed SFP modules quantity
- 20
- USB 2.0 ports quantity
- 1
Power
- AC input frequency
- 50 - 60 Hz
- Number of power supply units
- 1
- Power consumption (max)
- 63.6 W
- Power supply included
- Yes
- Redundant power supply (RPS) support
- Yes
Protocols
- Management protocols
- SNMP, NTPv3/v4, Telnet
- Supported network protocols
- IPv4/v6
Security
- Access Control List (ACL)
- Yes
- Authentication
- Guest VLAN, Port-based authentication
- BPDU filtering/protection
- Yes
- DHCP features
- DHCP server, DHCP client
- Loop protection
- Yes
- MAC address filtering
- Yes
- Security algorithms
- 802.1x RADIUS, SSH, SSH-2, SSL/TLS
- SSH/SSL support
- Yes
Weight & dimensions
- Depth
- 26 cm
- Height
- 4.4 cm
- Weight
- 3.79 kg
- Width
- 44.1 cm
Power supply included
Materials
