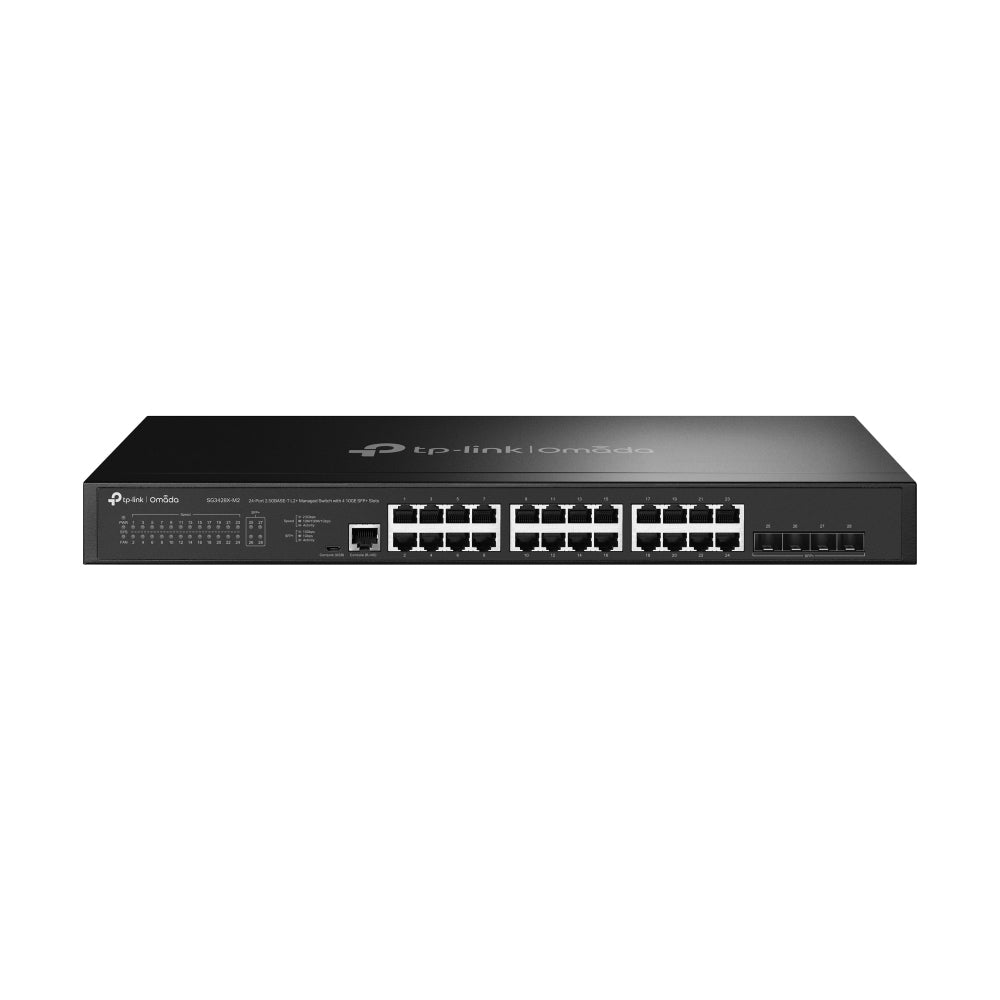

TP-Link Omada 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots
Regular price
$837.10
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Hurry up, only 6 items left in stock.
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Switch type: Managed
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 10 - 90%
- Networking standards: IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
- Power over Ethernet (PoE): No
- Switching capacity: 200 Gbit/s
- MAC address table: 32000 entries
- 10G support: Yes
- Storage relative humidity (H-H): 5 - 90%
- LED indicators: Yes
- Quality of Service (QoS) support: Yes
- Rack mounting: Yes
- Flow control support: Yes
- Jumbo frames support: Yes
- Switch layer: L2+
- Forwarding rate: 148.8 Mpps
- Jumbo frames: 9000
Certificates
- Certification
- CE, FCC, RoHS
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
Data transmission
- Number of static routes
- 48
- Packet buffer memory
- 16MB
- Static route
- Yes
- Store-and-forward
- Yes
Design
- Form factor
- 1U
- Number of fans
- 1 fan(s)
Management features
- ARP inspection
- Yes
- Cloud-managed
- Yes
- Configuring Location Settings (CLI)
- Yes
- MIB support
- Yes
- System event log
- Yes
- Web-based management
- Yes
Multicast features
- Multicast Listener Discovery (MLD) snooping
- Yes
- Multicast support
- Yes
Network
- Active link detection
- Yes
- Broadcast storm control
- Yes
- Head-of-line (HOL) blocking
- Yes
- IPv4 routes
- 48
- IPv6 routes
- 48
- Link aggregation
- Yes
- Policy-based routing
- Yes
- Port mirroring
- Yes
- Rate limiting
- Yes
- Spanning tree protocol
- Yes
- Virtual LAN features
- Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
- VLAN support
- Yes
Operational conditions
- Heat dissipation
- 154.38 BTU/h
- Storage temperature (T-T)
- -40 - 70 °C
Packaging content
- Cables included
- LAN (RJ-45)
- Quick start guide
- Yes
Ports & interfaces
- 2.5G Ethernet (copper) ports quantity
- 24
- Console port
- RJ-45/Micro-USB
- Power connector
- AC-in jack
- SFP+ module slots quantity
- 4
Power
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Power consumption (max)
- 45.1 W
- Power source
- AC
- Power supply included
- Yes
Protocols
- GARP VLAN Registration Protocol (GVRP)
- Yes
- IPv4 & IPv6 features
- IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
- IPv4 FIB entries
- 100
- IPv6 FIB entries
- 100
- Management protocols
- SNMP v1/v2c/v3, SNTP
Security
- Access Control List (ACL)
- Yes
- Authentication
- Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
- Authentication type
- AAA, RADIUS, TACACS+
- BPDU filtering/protection
- Yes
- DHCP features
- DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
- IGMP snooping
- Yes
- IP-MAC-Port binding
- Yes
- Loop protection
- Yes
- SSH/SSL support
- Yes
Weight & dimensions
- Depth
- 18 cm
- Height
- 4.4 cm
- Width
- 44 cm
Cables included: LAN (RJ-45)
Quick start guide
Power supply included
Quick start guide
Power supply included
Materials
Compare With Similar Items
|
|
|
|
|
|
| Description | TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks. |
PoE Switches for Your Ultra Convenience 5-Port Gigabit Desktop Switch with 4-Port PoE Power over Ethernet 4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). Intelligent Power Management When total power consumption excels 56W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation. Sturdy Metal Casing Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation. |

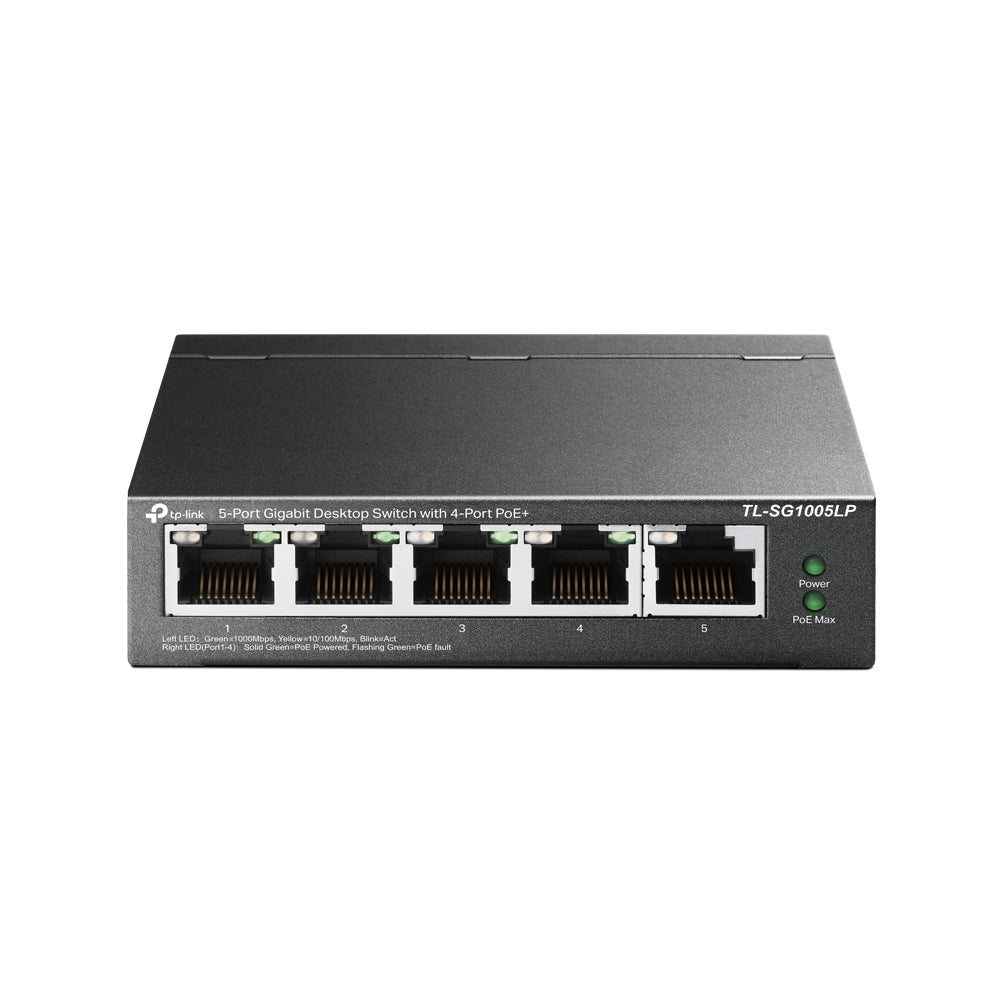

Professional 5-Port Gigabit Switch with 4 PoE+ Ports Plug and Play, with PoE power supply which meets the needs of diverse devices. Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more. Intelligent Power Management When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged. Advanced Functions for Higher Performance Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free. IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV. Durable Metal Casing The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on. |
