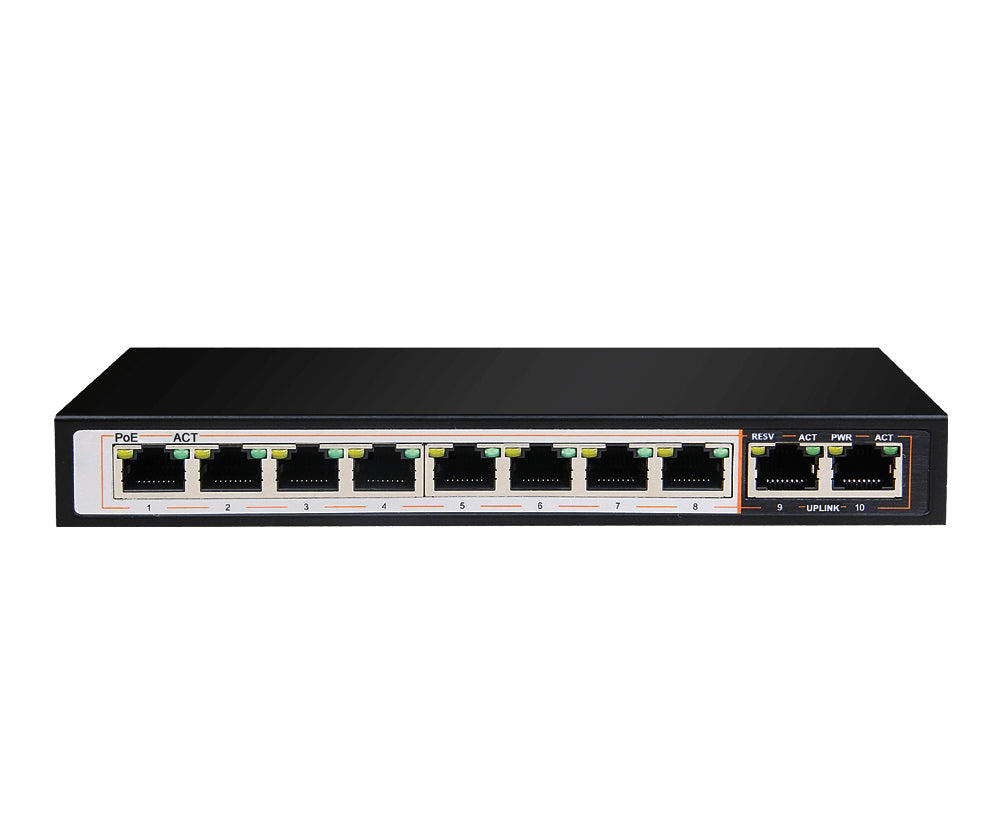

D-Link DGS-F1010P-E network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Regular price
$207.44
Sale price
Regular price
Tax included.
Hurry up, only 2 items left in stock.
DGS-F1010P-E is 10 port 1Gps with 8 PoE port switch that offers 8 10/100/1000 Mbps PoE ports, 2 10/100/1000Mbps uplink ports, auto detection and identification IEEE802.3af/at standard PD device, then carry power to it. Therefore, do not worry it will destroy the private standard PoE or NonPoE equipment. DGS-F1010P-E is the best choice for mini type commercial network because it economically
uses PoE deployment wireless AP and IP camera. It can resolve the problem of maintenance tedious, wireless coverage, terminal device powered, surveillance project. Maximum save the cost.
uses PoE deployment wireless AP and IP camera. It can resolve the problem of maintenance tedious, wireless coverage, terminal device powered, surveillance project. Maximum save the cost.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Switch type: Unmanaged
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 10 - 90%
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- Basic switching RJ-45 Ethernet ports quantity: 10
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE): Yes
- 10G support: No
- Storage relative humidity (H-H): 5 - 90%
- LED indicators: Activity, Link, PoE, Power
- Quality of Service (QoS) support: Yes
- Rack mounting: No
- Flow control support: Yes
- Store-and-forward: Yes
- Auto MDI/MDI-X: Yes
- Power source: DC
- Stackable: No
- Certification: CE Class B, FCC Part 15, Class B, VCCI Class B, C-Tick
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Data transmission
- Latency (10-100 Mbps)
- 20 µs
- Packet forwarding rate (1 Gbps)
- 14800 pps
- Packet forwarding rate (10 Mbps)
- 148800 pps
- Packet forwarding rate (100 Mbps)
- 148800 pps
Network
- Auto-negotiation
- Yes
Operational conditions
- Storage temperature (T-T)
- -10 - 70 °C
Performance
- Fanless
- Yes
Ports & interfaces
- Gigabit Ethernet (copper) ports quantity
- 10
- Uplink ports quantity
- 2
Power
- Power consumption (typical)
- 120 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE) ports quantity
- 8
Weight & dimensions
- Depth
- 18.4 cm
- Height
- 2.7 cm
- Weight
- 1.05 kg
- Width
- 9.4 cm
Materials
Compare With Similar Items
|
|
|
|
|
|
| Description | DGS-F1010P-E is 10 port 1Gps with 8 PoE port switch that offers 8 10/100/1000 Mbps PoE ports, 2 10/100/1000Mbps uplink ports, auto detection and identification IEEE802.3af/at standard PD device, then carry power to it. Therefore, do not worry it will destroy the private standard PoE or NonPoE equipment. DGS-F1010P-E is the best choice for mini type commercial network because it economically uses PoE deployment wireless AP and IP camera. It can resolve the problem of maintenance tedious, wireless coverage, terminal device powered, surveillance project. Maximum save the cost. |
The Yealink RCH240 is a 24-port L2+ web-based managed AV switch designed for high-performance AV over IP environments. It is optimized for Yealink AV protocols as well as industry standards such as Dante and AES67, ensuring seamless, high-bandwidth connectivity for Yealink MTR systems, cameras, Pro Audio equipment, and Yealink AVoIP encoders/decoders (e.g., EN300 / DE300). With a 370W PoE+ power budget, 4 SFP fiber uplinks, and advanced multicast optimization (IGMP Snooping, Fast Leave), the RCH240 delivers the capacity, reliability, and management flexibility required in modern meeting rooms and professional AV deployments. |

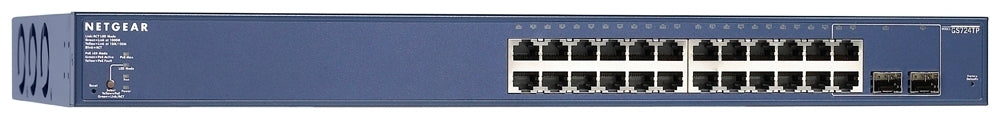

Full 24-port or 48-port PoE Solution, Plus Easy Browser-based Management NETGEAR ProSafe Smart Switches fill the gap between unmanaged and fully managed switches. The family of ProSafe Smart Switches is designed for growing businesses that want control over their network without the cost and complexity of a full Layer 2 management implementation. These PoE-capable Smart Switches, the GS724TP and GS748TP, provide power and data using built-in IEEE 802.3af PoE on all 24 or 48 ports. In addition, they offer an intuitive Web-based management tool for quick and easy deployment and configuration making it ideal for deploying access points, VoIP phones and IP-based surveillance cameras. This switch is equipped with highly advanced features such as access control lists (ACL), 802.1x port authentication, enhanced QoS, rate limiting and IGMP snooping among others to provide a small and medium-sized business with a network that is geared for growth, while providing scalability and reliability. With the utility of 24 or 48 10/100/1000 Mbps ports, two or four combination (copper/hot-swappable small form-factor pluggable (SFP)) Gigabit ports for optional fiber connectivity, growing business networks, classrooms and workgroups can benefit from superior performance and keep up with expanding network needs. These high-performing switches feature a non-blocking wire-speed architecture with a 48 Gbps or 96 Gbps switching capacity for maximum data throughput. All 24 and 48 RJ-45 ports automatically negotiate to the highest speed and support Auto Uplink™ technology to make the right link. Full-featured, Flexible Power over Ethernet (PoE) With a total power budget of 192 Watts for the GS724TP and 384 Watts for the GS748TP, customers can choose to plug in up to 48 802.3af IP-based devices. Power-over-Ethernet (PoE), optimizes the installation and power management of network devices such as wireless access points (AP), Voice over IP (VoIP) phones, and IP-based surveillance cameras. Power-over-Ethernet (IEEE 802.3af) capabilities reduce installation time and costs for many new network productivity devices. Free your wireless AP deployments and IP cameras from the restrictions of power outlet proximity using a standard Cat 5 cable. Enable uninterruptible power supply for all your PoE devices by powering your switch from a UPS device. Advanced Security These switches also provide advanced features that provide more robust security to the SMBs. These include: - 802.1x for authentication. - ACL filtering to permit or deny traffic based on MAC or IP addresses. Advanced Quality of Service Priority queuing ensures high-priority traffic gets delivered efficiently, even during congestion from high traffic bursts. Companies implementing network telephony or video conferencing, for example, need to be able to prioritize such voice and video traffic and other real-time applications over less latency-sensitive traffic to ensure reliability and quality. The ability to prioritize traffic ensures quality of latency-sensitive services and applications despite increasing traffic loads. The ProSafe GS724TP and GS748TP provide several advanced QoS features: - 802.1p-based prioritization. - Layer 3-based (DSCP) prioritization. - Rate limiting. “Smart” Management Features Manage all ProSafe Smart Switches from an easy-to-use Web console that can be used to configure all features, as well as monitor and trouble-shoot. These switches also have SNMP (v1, 2 and 3) to collect and track data to monitor the network health, as well as manage devices, and more easily enforce critical IT controls and policies. SNMP v2c is most commonly deployed, as it provides better reporting capabilities than SNMP v1. Companies interested in more robust security may opt for SNMP v3, which provides data encryption. These ProSafe Smart Switches provide world-class reliability with a Lifetime Warranty and optional ProSupport Maintenance Packages. These switches are optimized for ProSafe Network Management Software (NMS100) and work with other SNMP-based management software. |
