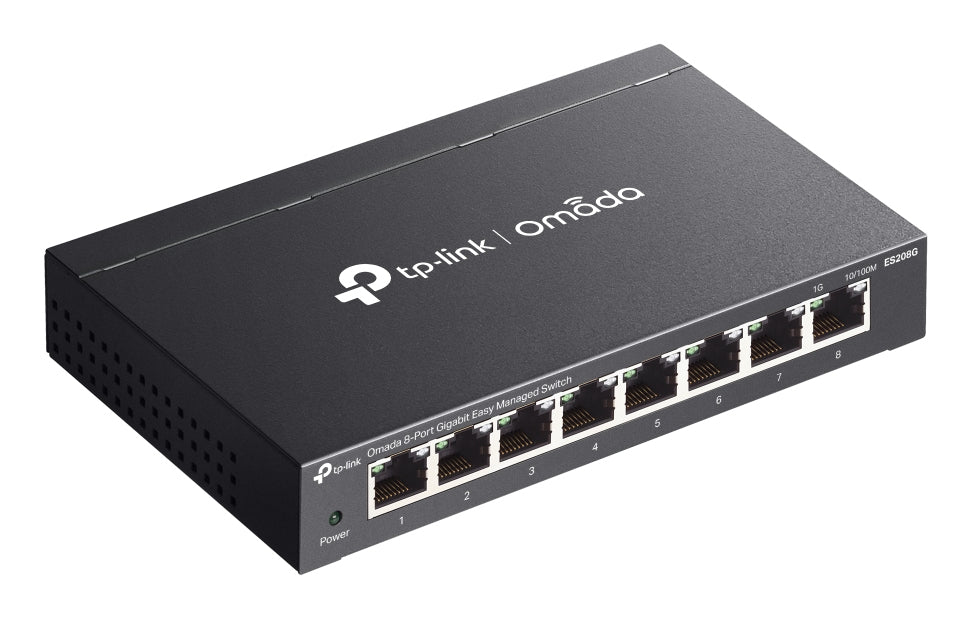

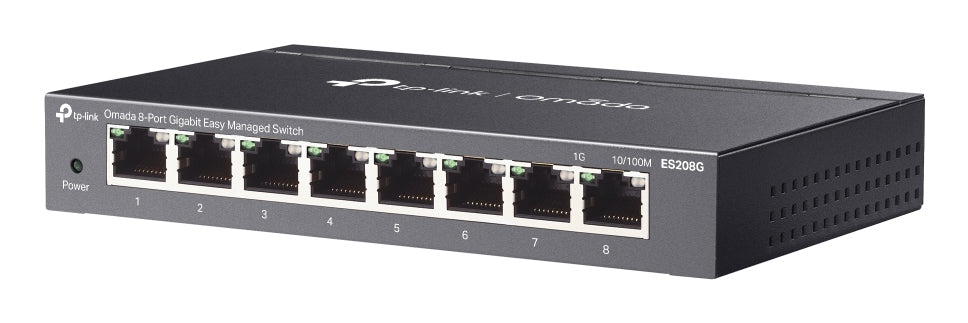

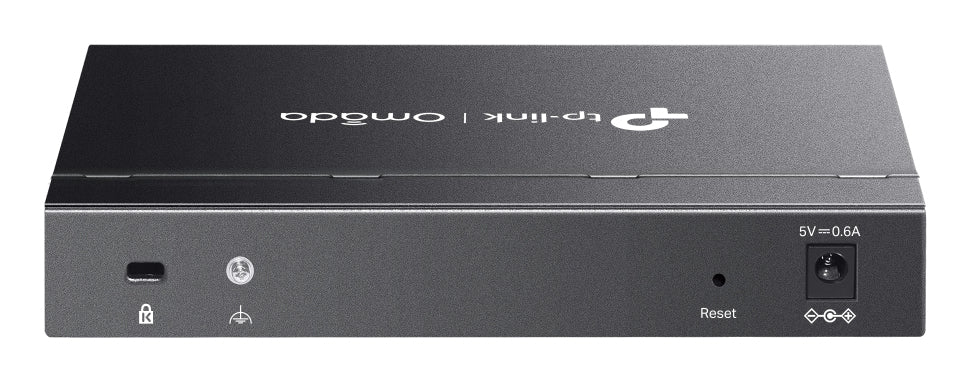

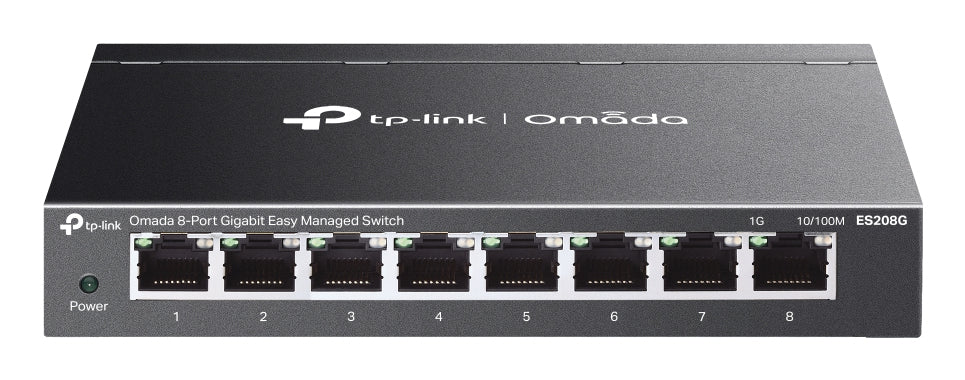

TP-Link Omada ES208G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
Available in stock (55)
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Switch type: Managed
- Operating temperature (T-T): -5 - 45 °C
- Operating relative humidity (H-H): 10 - 90%
- Networking standards: IEEE 802.3ab, IEEE 802.1ab, IEEE 802.3i, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.1Q
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE): No
- Switching capacity: 16 Gbit/s
- MAC address table: 8000 entries
- 10G support: No
- Storage relative humidity (H-H): 5 - 90%
- LED indicators: Yes
- Quality of Service (QoS) support: Yes
- Rack mounting: No
- Flow control support: Yes
- Jumbo frames support: Yes
- Switch layer: L2
- Forwarding rate: 11.9 Mpps
- Jumbo frames: 15000
Certificates
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
Data transmission
- Packet buffer memory
- 4MB
- Store-and-forward
- Yes
Design
- Stackable
- No

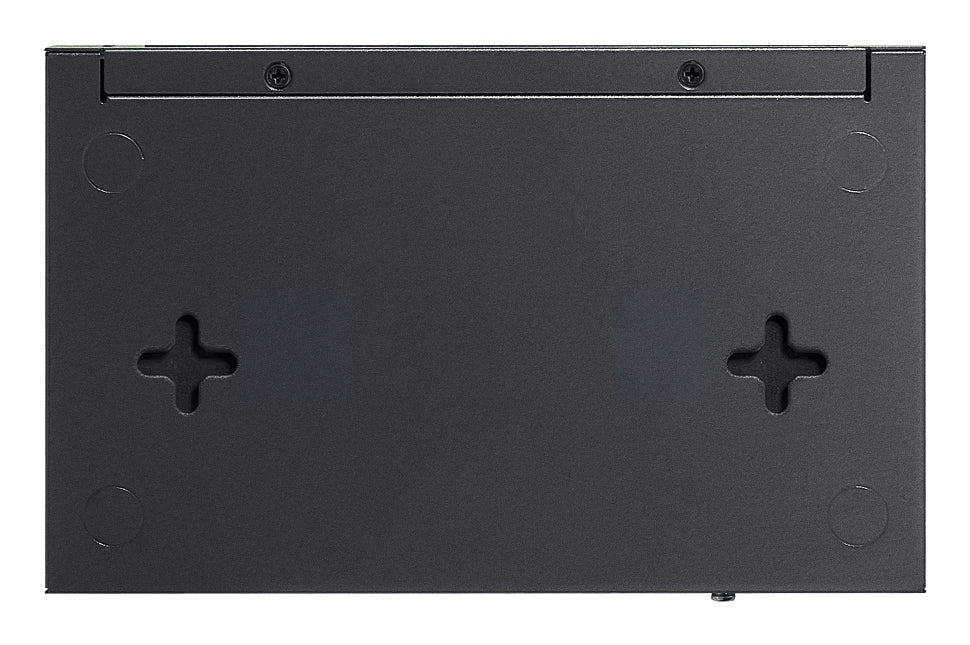

- Wall mountable
- Yes
Management features
- Cloud-managed
- Yes
- Unified static configuration
- Yes
- Web-based management
- Yes
Network
- Auto-negotiation
- Yes
- Auto MDI/MDI-X
- Yes
- Fast leave
- Yes
- Link aggregation
- Yes
- Number of VLANs
- 32
- Port mirroring
- Yes
- Virtual LAN features
- MTU VLAN, Port-based VLAN, Tagged VLAN
- VLAN support
- Yes
- Zero Touch Provisioning (ZTP)
- Yes
Operational conditions
- Heat dissipation
- 9.09 BTU/h
- Storage temperature (T-T)
- -40 - 70 °C
Packaging content
- User guide
- Yes
Packaging data
- AC adapter included
- Yes
- Package type
- Box
Performance
- Fanless
- Yes
- Firmware upgradeable
- Yes
- Flash memory
- 64MB
- Mean time between failures (MTBF)
- 1141726 h
Ports & interfaces
- Gigabit Ethernet (copper) ports quantity
- 8
Power
- DC input voltage
- 5 V
- Input current
- 0.6 A
- Power consumption (max)
- 2.7 W
- Power source
- DC
- Power supply included
- Yes
- Surge protection
- Yes
- Surge protection voltage
- 6 kV
Security
- DHCP features
- DHCP client
- IGMP snooping
- Yes
- Loop protection
- Yes
- Queue scheduling algorithms
- Weighted Round Robin (WRR)
Weight & dimensions
- Depth
- 10.07 cm
- Height
- 2.54 cm
- Width
- 15.8 cm
Power supply included
Materials
